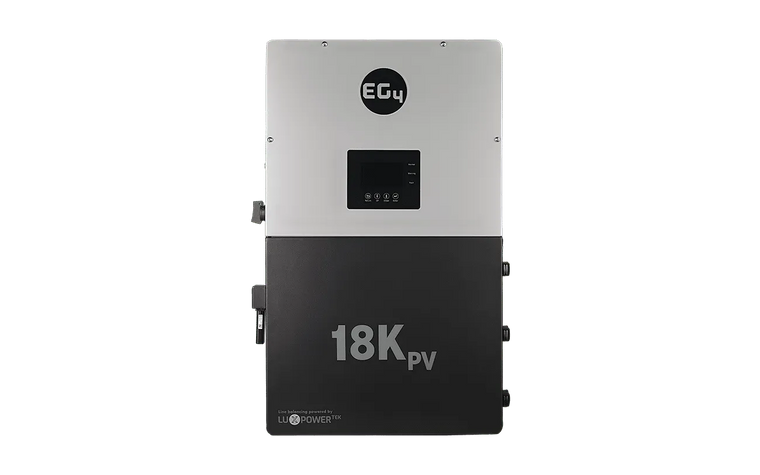

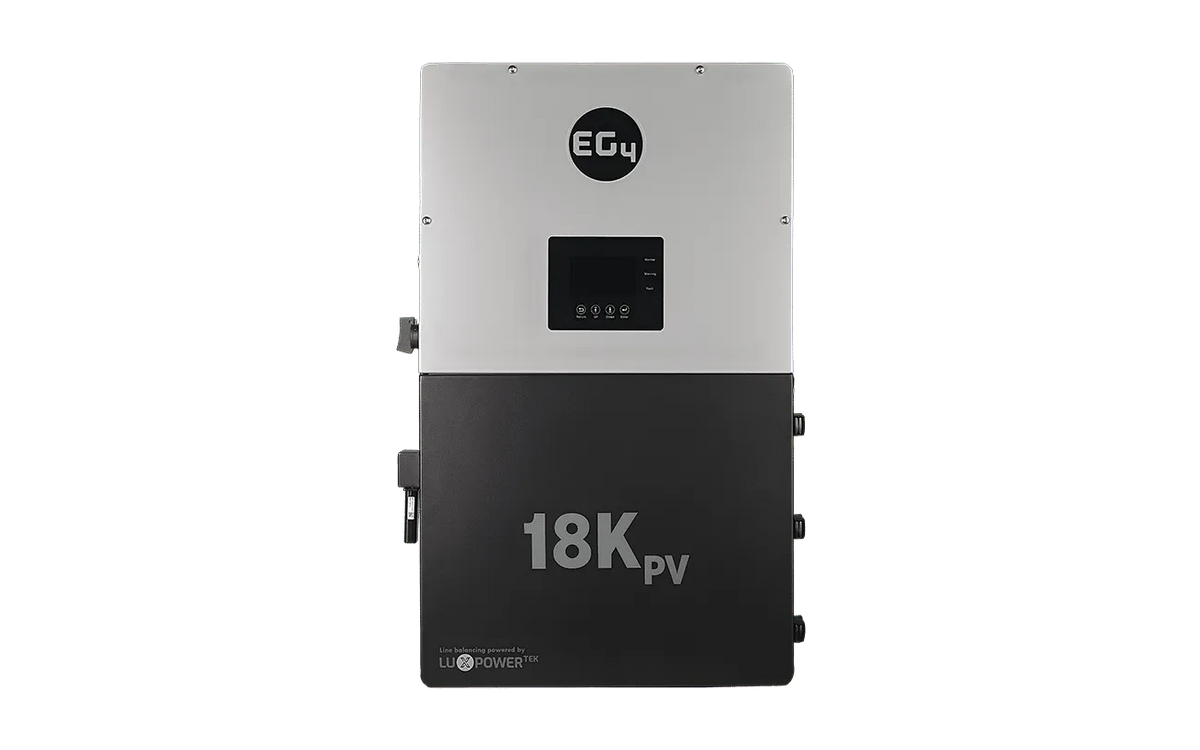

EG4 18kPV 12kW 48V Split-Phase Hybrid Inverter — INV024
EG4 18kPV 12kW 48V Split-Phase Hybrid Inverter — INV024
SKU: INV024
- Regular price
- $3,999.99
- Regular price
- Sale price
- $3,999.99
- Unit price
- per
Estimated delivery: Calculating arrival dates…
For in-stock orders placed today. Standard Lower 48 delivery; availability and carrier scheduling may affect arrival.
Couldn't load pickup availability
In stock — available to order
- Free shipping in the Lower 48. No order minimum. See shipping details
- 30-day returns — contact Torven and we will help you get started. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
In stock
12kW hybrid power for solar and battery systems.
The EG4 18kPV combines split-phase AC output with 18kW of usable PV input and 3 solar trackers. Batteries and solar panels are sold separately.
Plan a complete energy system
Use this 48V-class hybrid inverter in an installer-designed grid-interactive or off-grid system. It supports 120/240V split-phase operation and compatible 120/208V installations. Confirm the battery communication protocol, firmware, array design, permits and utility requirements before installation.
Inverter package
Includes one inverter and the manufacturer-listed mounting bracket, positioning template, current transformers, monitoring dongle, battery and parallel communication cables, keys, terminals and installation hardware. The official packing list identifies the exact contents. Battery power cables, external protection, batteries, solar panels and site installation are separate unless expressly listed in that packing list.
Monitoring and expansion
Review operating data through EG4 monitoring. Parallel operation requires the specified communication, wiring and configuration. Select equipment around your actual continuous loads and battery output limits.
Manufacturer specifications · Installation guide and packing list · Compare hybrid inverters · Plan your power system · Confirm system compatibility
Product Data
Technical Specifications
| Specification | Details |
|---|---|
| Brand / supplier SKU | EG4 / INV024 |
| Model | 18kPV |
| Continuous AC output | 12kW |
| Usable PV input | 18kW |
| Solar trackers | 3 MPPTs |
| AC system | 120/240V split-phase; 120/208V supported per manual |
| Battery voltage class | 48V |
| Dimensions H × W × D | 870 × 520 × 285mm |
| Unit weight | 55kg |
| Enclosure rating | NEMA 4X |
| Maximum parallel units | 10; professional system design required |
| Package | One inverter with manufacturer-listed mounting and communication hardware; batteries and solar panels separate |
