RICH SOLAR Complete Off-Grid Solar Kit RS-H6548 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001]
RICH SOLAR Complete Off-Grid Solar Kit RS-H6548 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001]
SKU: SRx3-H6548x1-M410x16
- Regular price
- $10,999.99
- Regular price
- Sale price
- $10,999.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
A high-capacity 48V off-grid power package
Build around 6.56kW of solar, 15.36kWh of storage and a 6.5kW hybrid inverter.

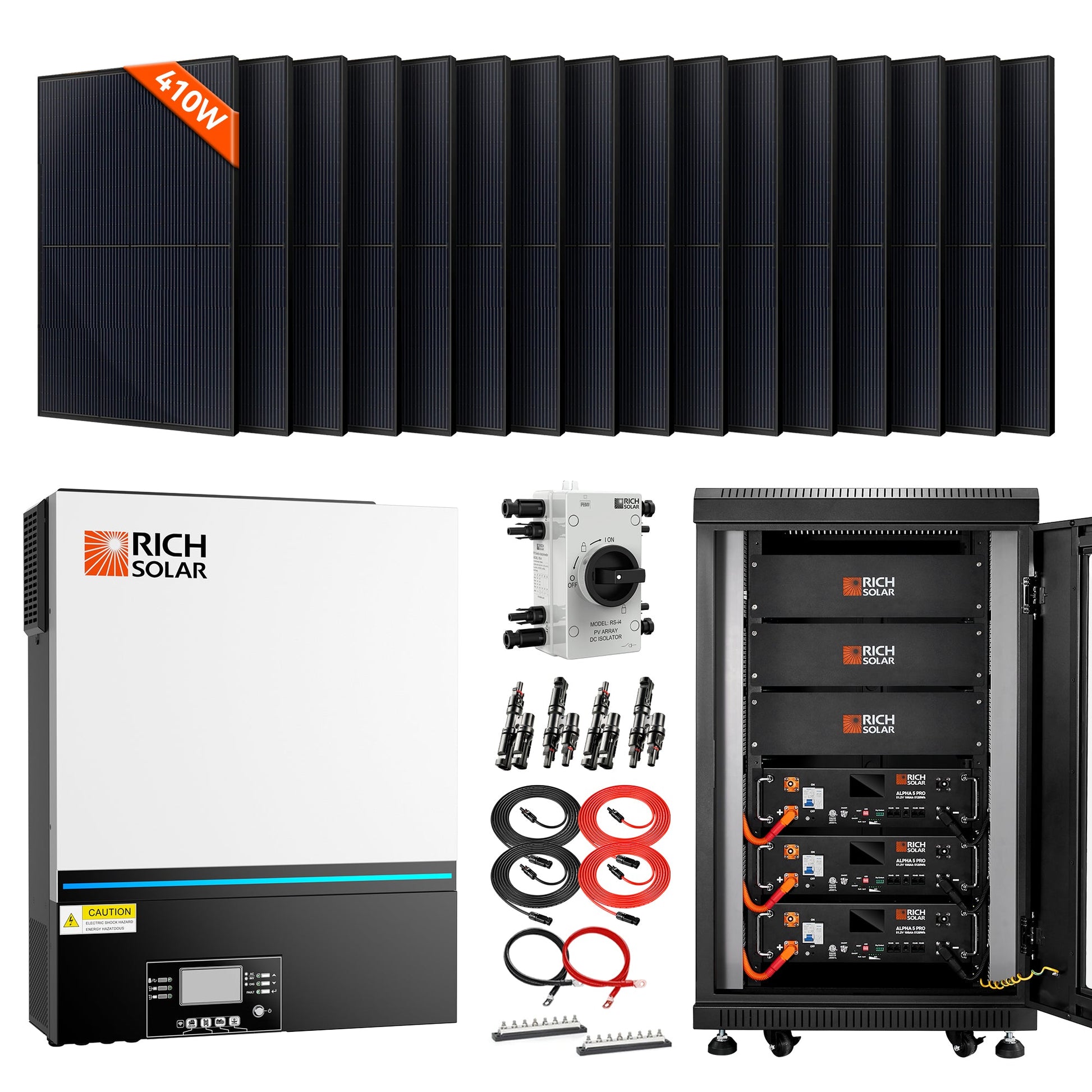

The RICH SOLAR KIT-SR0001 combines sixteen MEGA 410 panels, three ALPHA 5 PRO rack batteries and one NOVA 6548 hybrid inverter with the key DC connection hardware. It is designed for a serious cabin, homestead, workshop or selected-home-load system that needs coordinated generation, storage and 120V AC power.
At a glance
The three numbers that size the system
The kit supplies major components, not a site-specific permit set or finished electrical design. A qualified installer must confirm array stringing, grounding, rapid shutdown, transfer equipment, conductor sizing and local code requirements.
System fit
Best for projects that fit a single 120V inverter—not every whole-home layout.
The inverter is a 48V, 120V-output model. A project that requires native 120/240V split-phase output, utility interconnection or automatic whole-home transfer may need a different inverter configuration and additional listed equipment.
In the box
Major components listed for KIT-SR0001
- 16 × MEGA 410W monocrystalline solar panels (RS-M410)
- 1 × NOVA 6548 6,500W 48V hybrid inverter (RS-H6548)

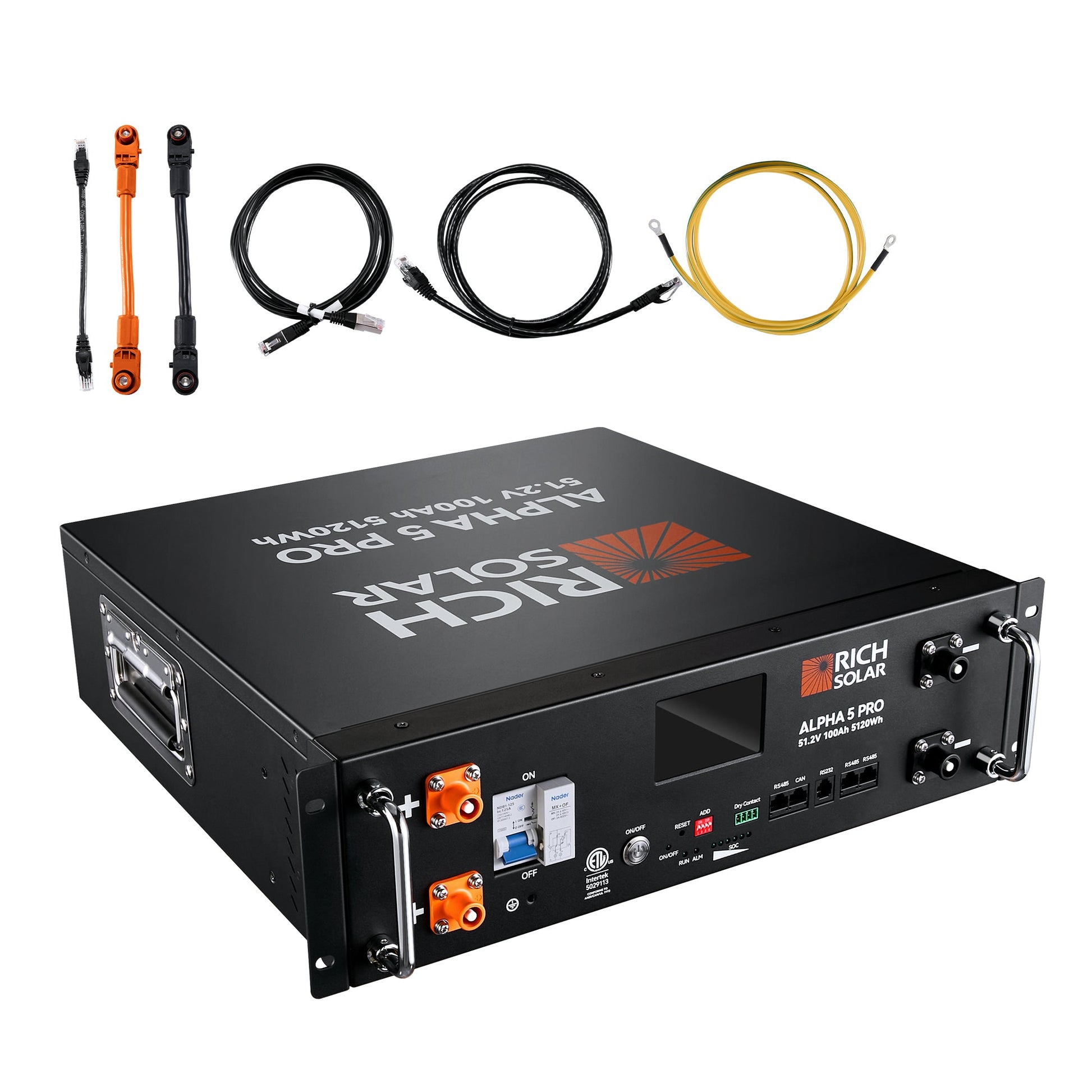

- 3 × ALPHA 5 PRO 51.2V 100Ah batteries (RS-B5121P)

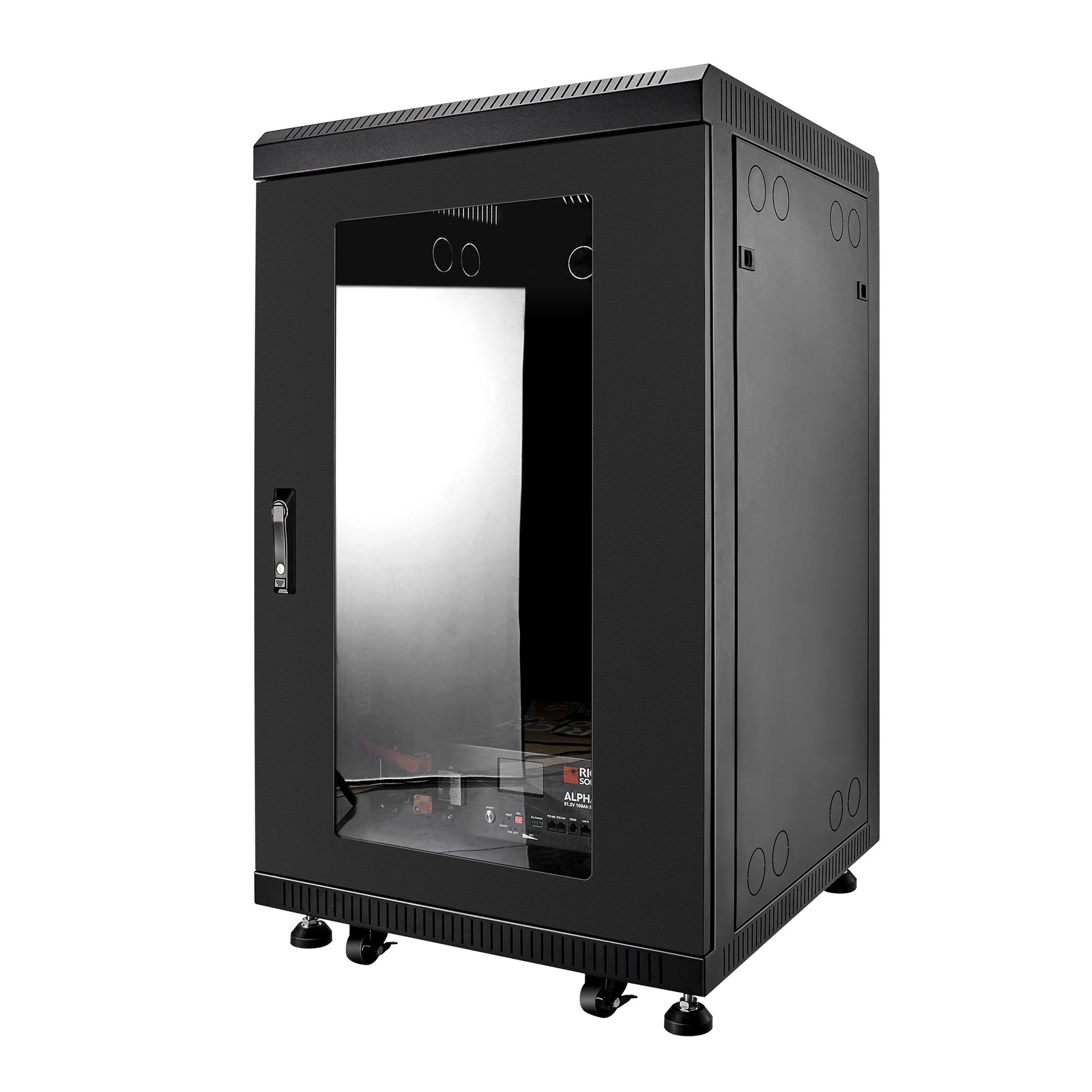

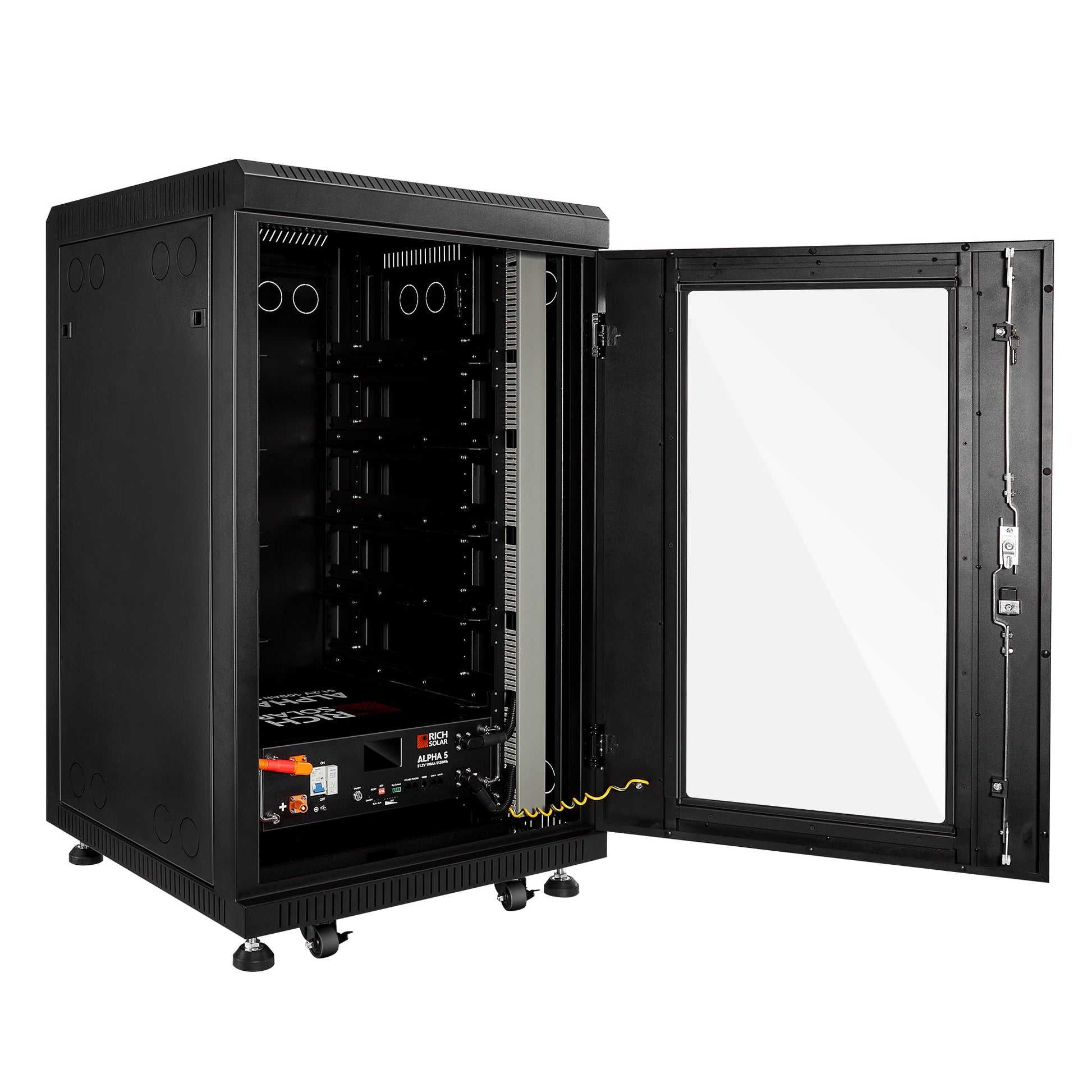

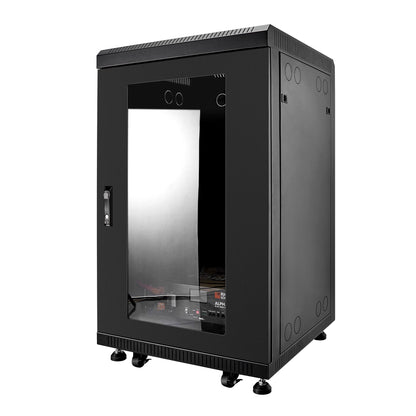

- 1 × six-slot battery rack (RS-SRA5P)

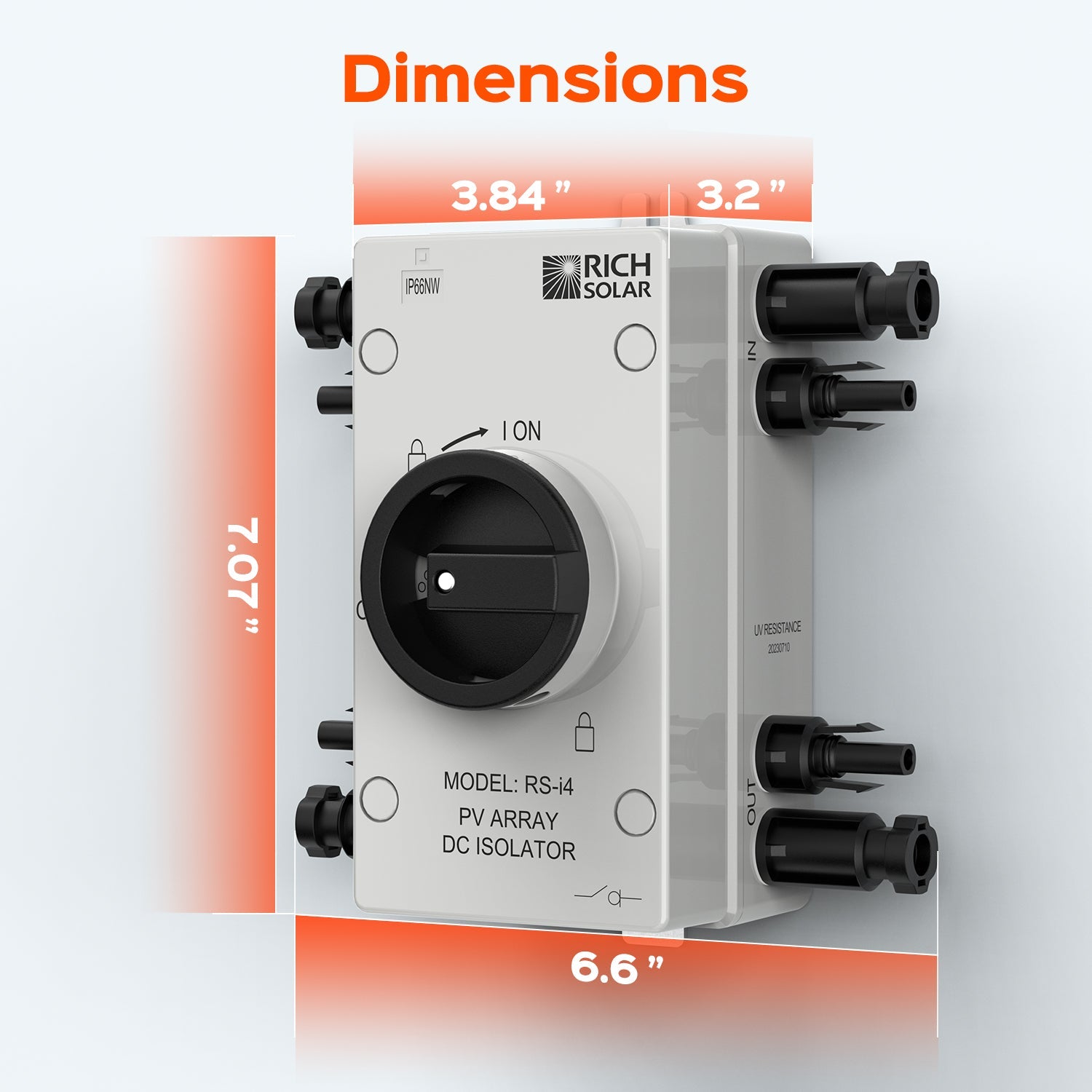

- 1 × RS-i4 PV DC quick disconnect switch

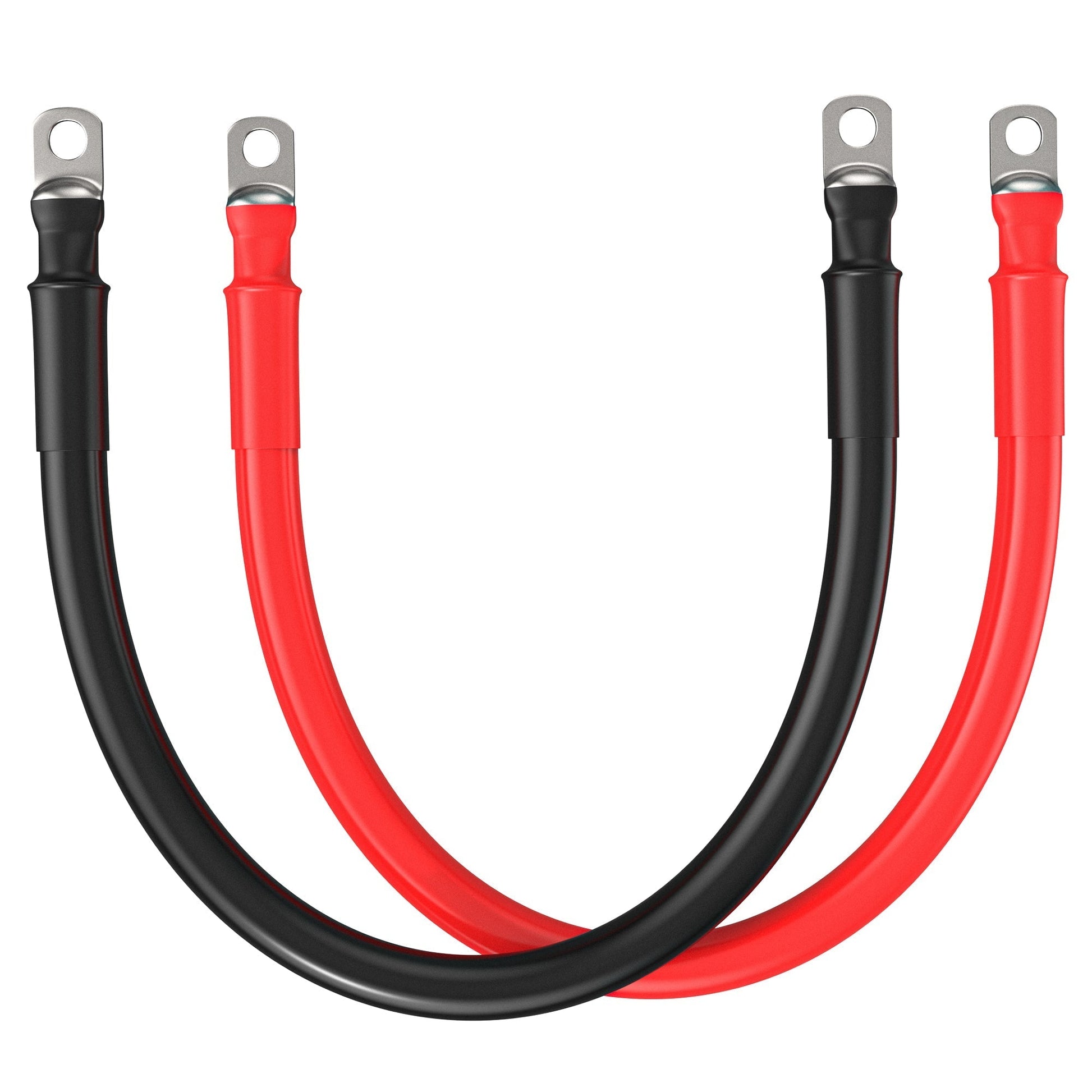

- 2 × 4 ft 2/0 AWG battery cable sets with 3/8 in lugs

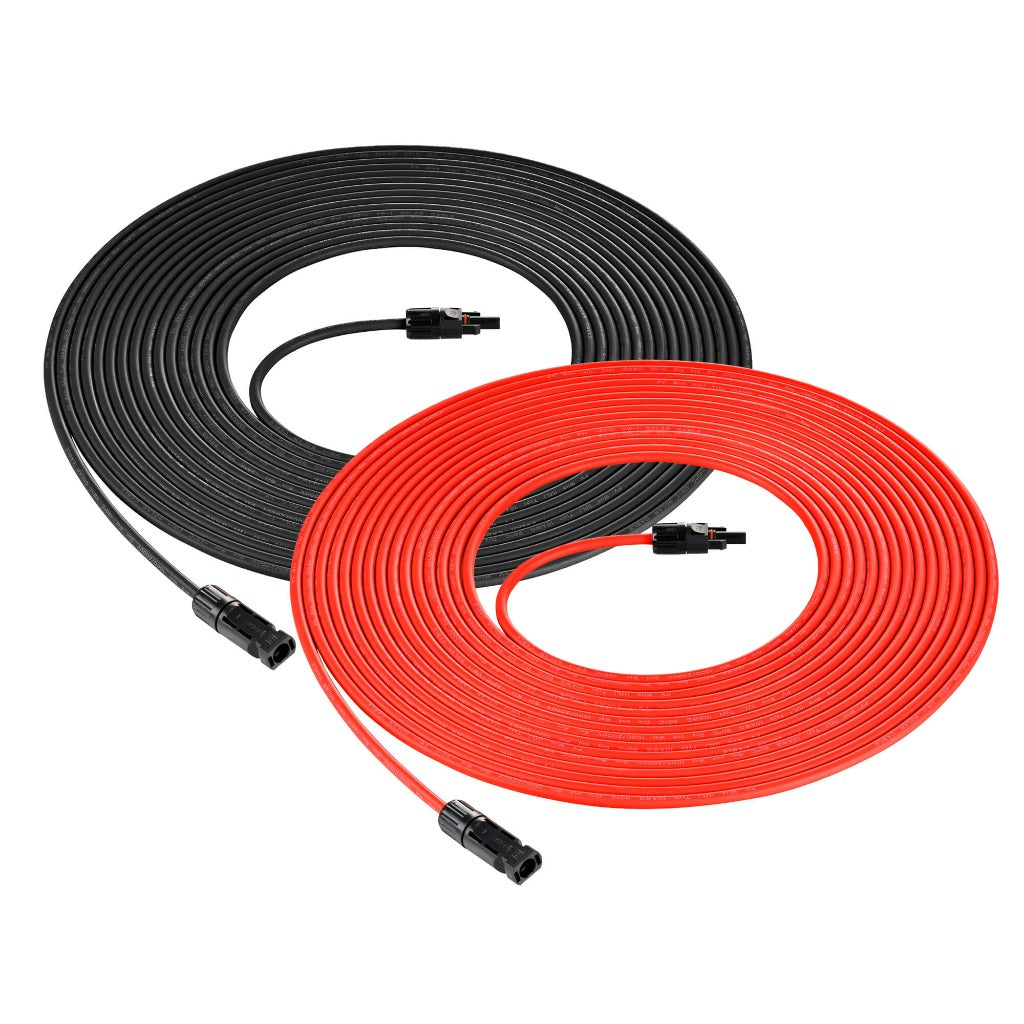

- 4 × 50 ft 10 AWG solar extension cable sets

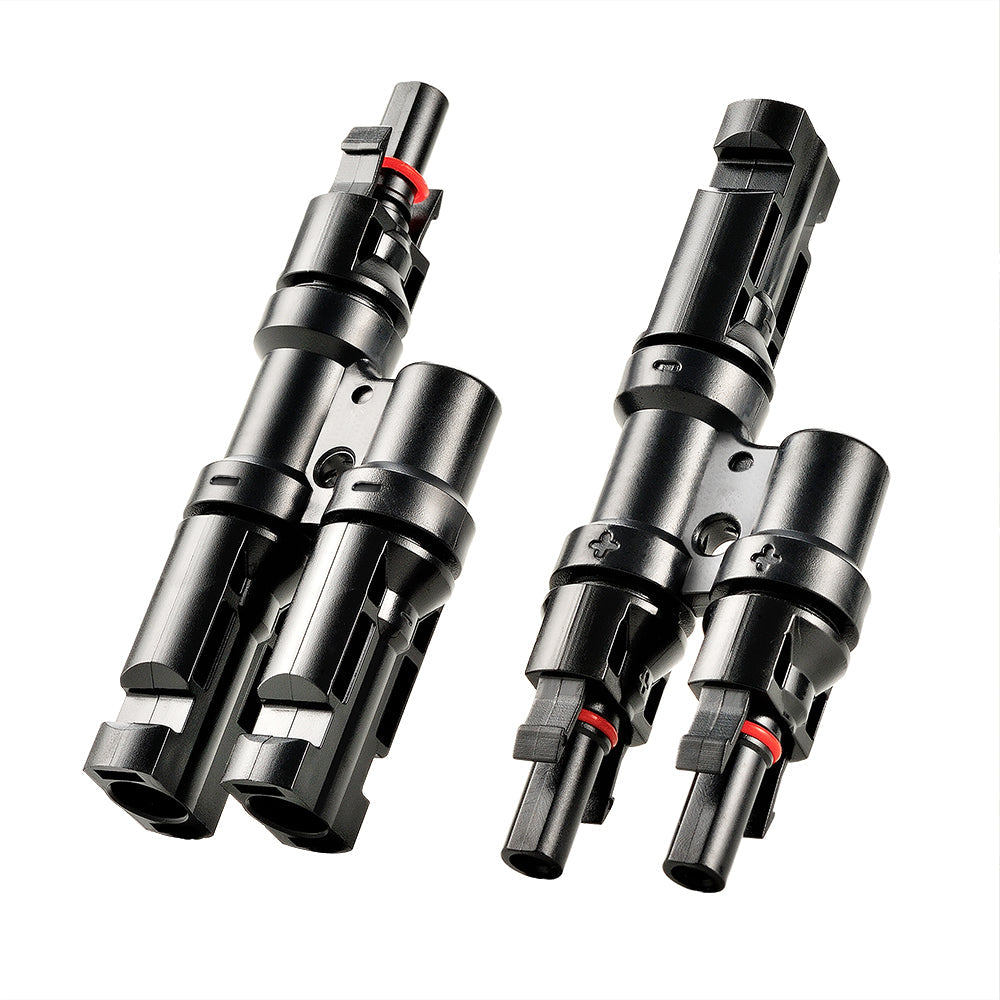

- 2 × 2-to-1 solar parallel connector pairs and 2 × 600A busbars
Panel racking, AC distribution, transfer equipment, grounding, rapid-shutdown hardware, permits and installation labor are not listed as included. Contact Torven Power for an itemized equipment check before ordering.
Product confidence
Coverage follows each included component and RICH SOLAR’s written terms.
Panel, inverter and battery coverage use different terms and eligibility rules. Review RICH SOLAR’s current warranty before installation; registration, approved installation methods, environmental limits and exclusions can affect coverage.
Common questions
Before you build around KIT-SR0001
Is this a 120/240V split-phase system?
No. The included NOVA 6548 is listed for 120V AC output. If your load center or appliances require native 240V, contact Torven Power before ordering so the inverter architecture can be reviewed.
How long will 15.36kWh of batteries run my loads?
Runtime depends on usable state of charge, inverter losses, temperature and the actual watts used over time. Divide planned watt-hours by the expected usable battery energy, then leave margin for surge and reserve capacity.
Does the kit include panel mounting and a transfer switch?
No panel racking or transfer equipment is listed. Those parts are site-specific and should be selected by the installer for the mounting surface, wind and snow conditions, electrical service and local code.
Can the system be expanded later?
Potential expansion depends on the inverter’s PV limits, battery communication rules, conductor sizing and the matching component revisions. Design the future array and battery target before the first installation.
Product Data
Technical Specifications
| Manufacturer model | Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001] |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | SRx3-H6548x1-M410x16 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
16 × MEGA 410 410W Solar Panel Pallet (RS-M410)
| Maximum Power(Pmax) | 410W |
|---|---|
| Maximum Power Voltage(Vmp) | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) | 37.5V |
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.8 x 44.7 x 1.2 in |
1 × NOVA 6548 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
| Model | RS-H6548 |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 2* rated power for 5 seconds |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Optional DC Voltage | 12 VDC ± 7%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |

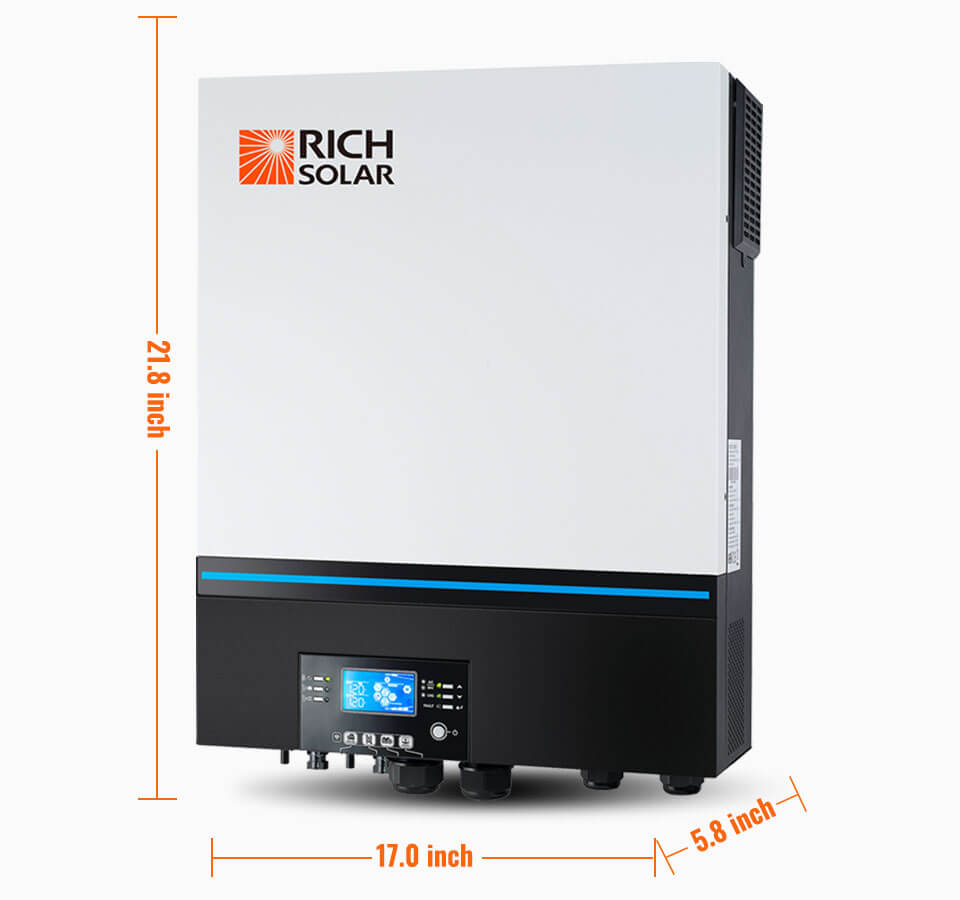

| Dimensions (D X W X H) | 5.8 x 17.0 x 21.8 in |
| Net Weight | 40.6 lb |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Compliance Safety | UL 1741 by TUV |
3 × ALPHA 5 PRO 51.2V 100Ah Rack Battery (RS-B5121P)
| Manufacturer model | ALPHA 5 PRO | 51.2V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, RVs, Off-Grid | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973, UL9540A Certified |
|---|---|
| Listed SKU count | 6 |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
