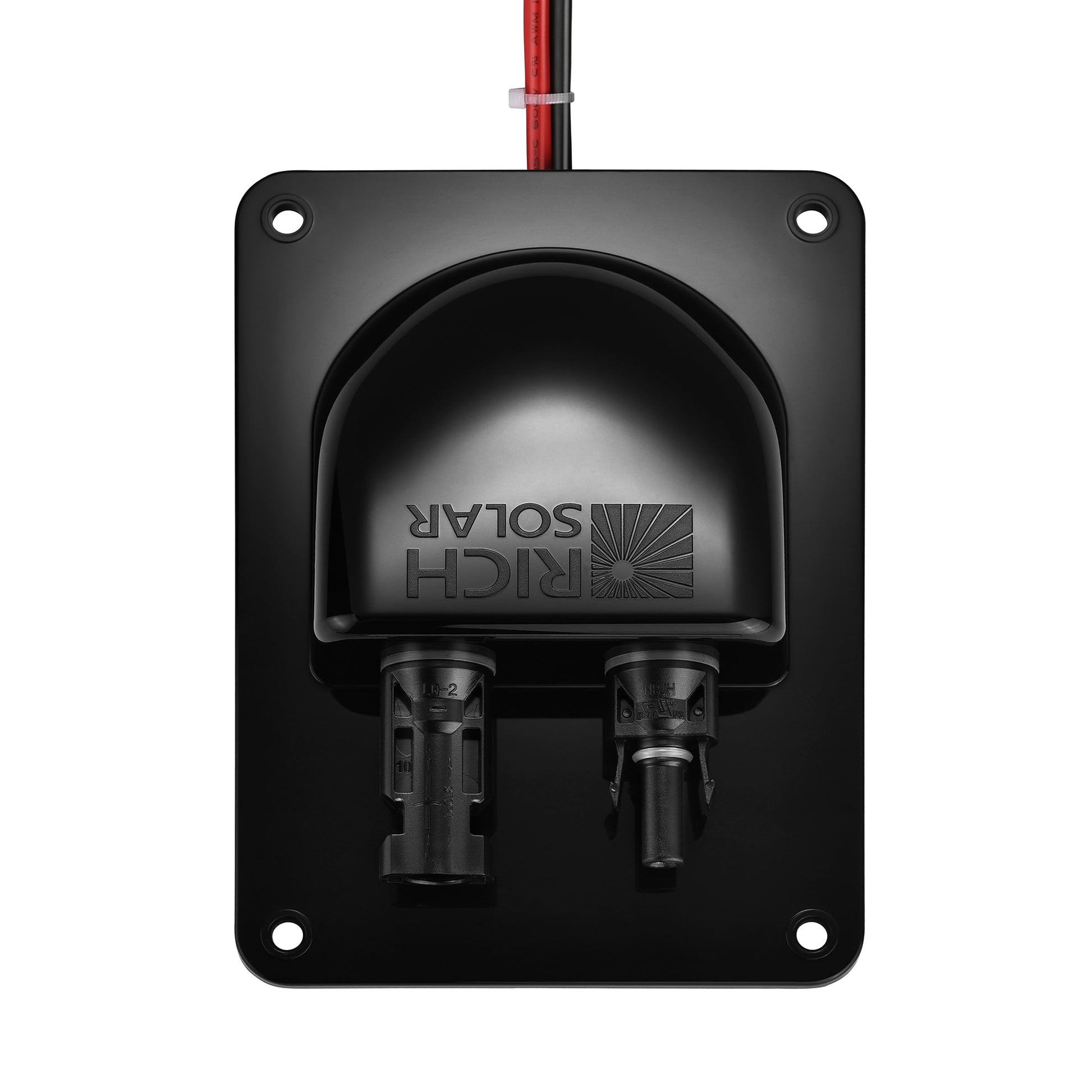

• Top view of the RICH SOLAR cable entry plate with two solar connectors and 8AWG wires

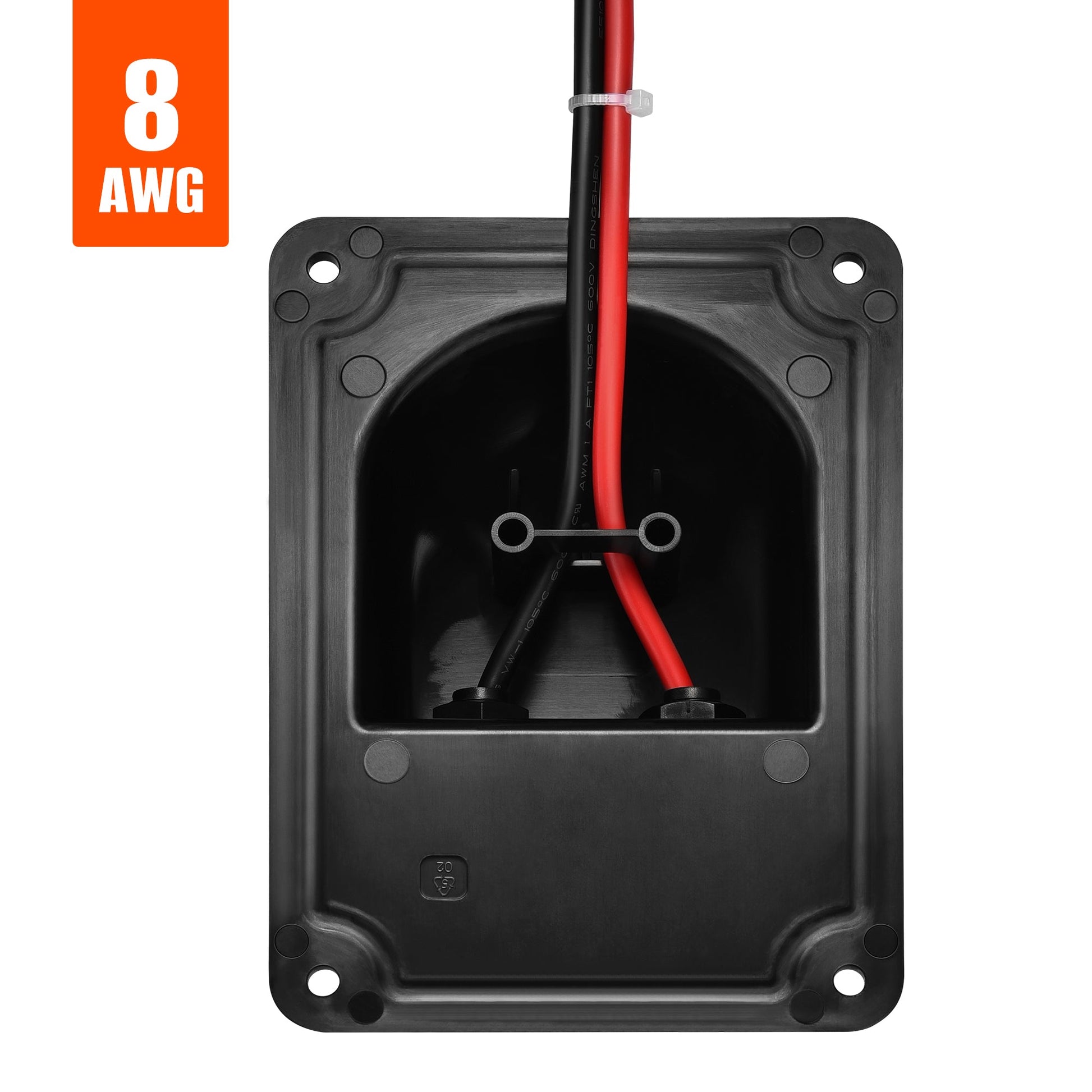

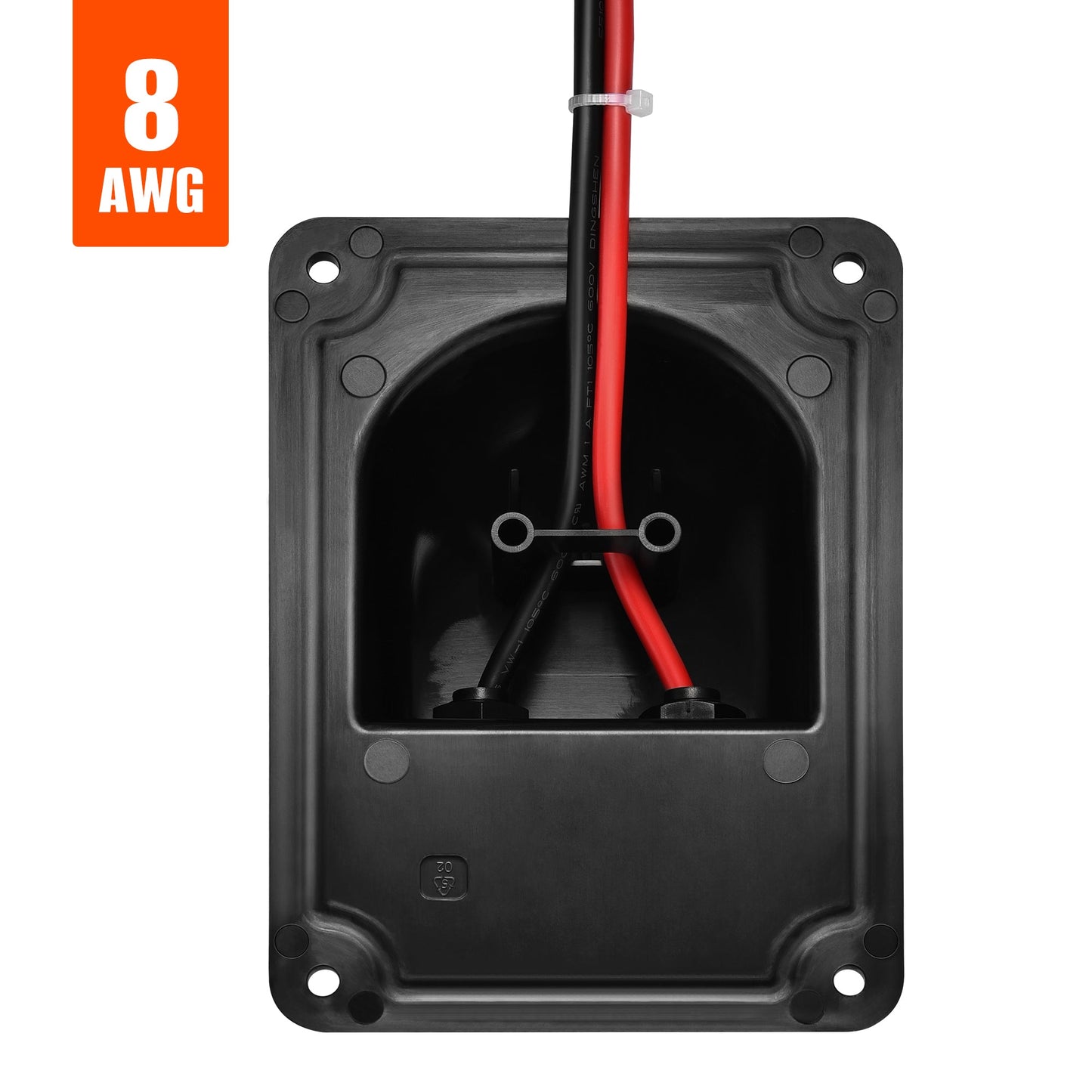

  • Underside of the RICH SOLAR cable entry plate showing 8AWG wire routing and mounting holes

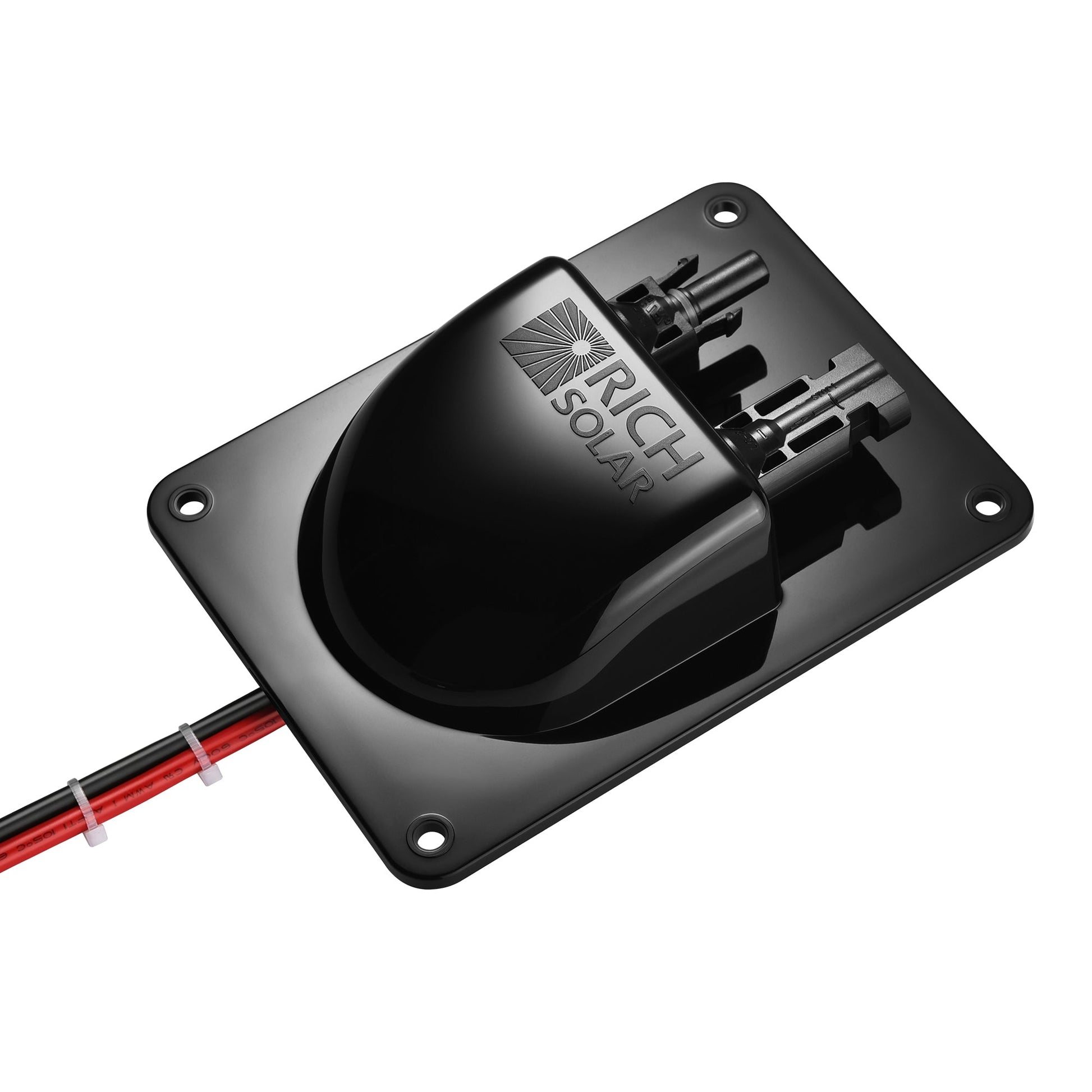

  • Angled view of the RICH SOLAR 8AWG cable entry plate, housing and solar connectors

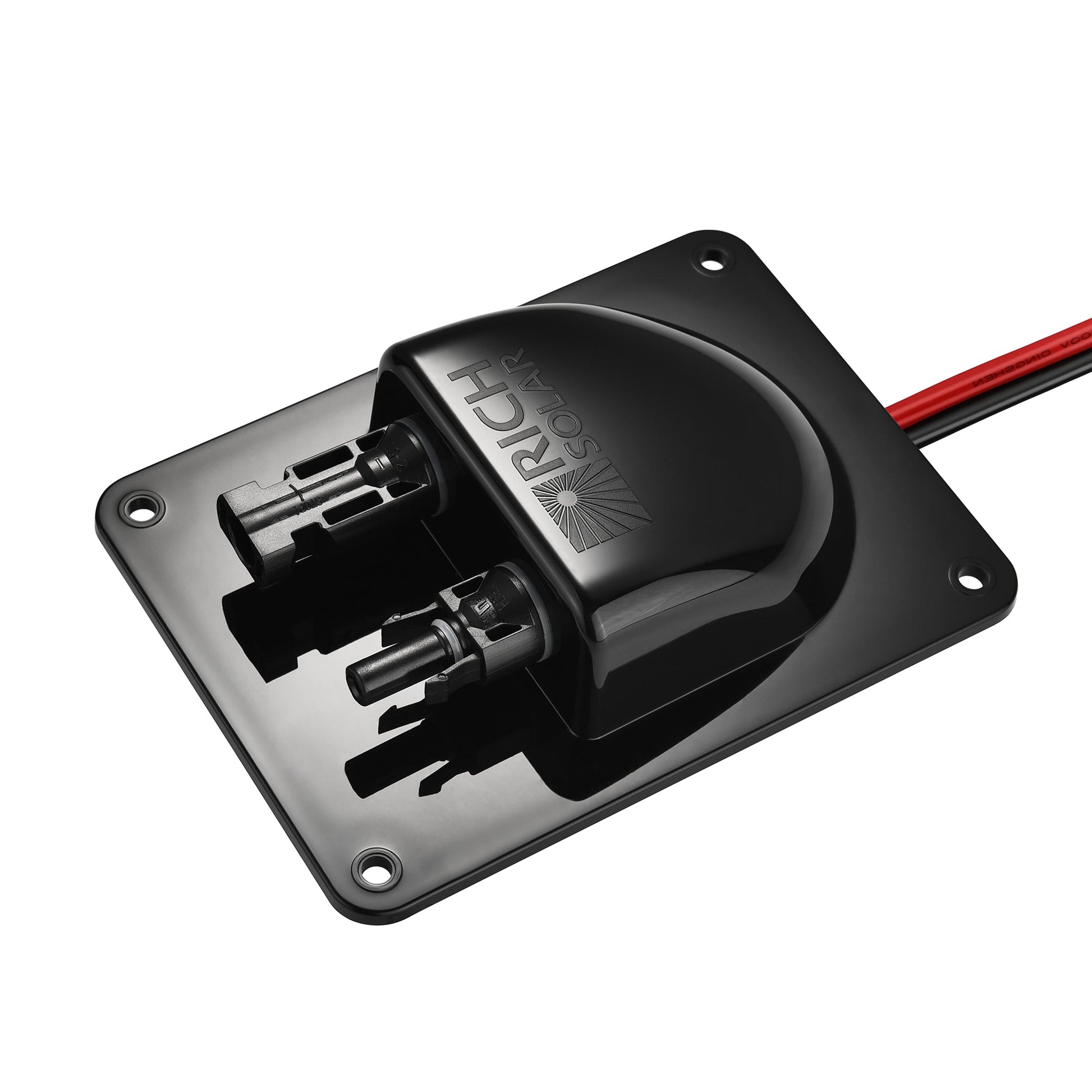

  • Opposite angled view of the RICH SOLAR 8AWG cable entry plate and solar connectors

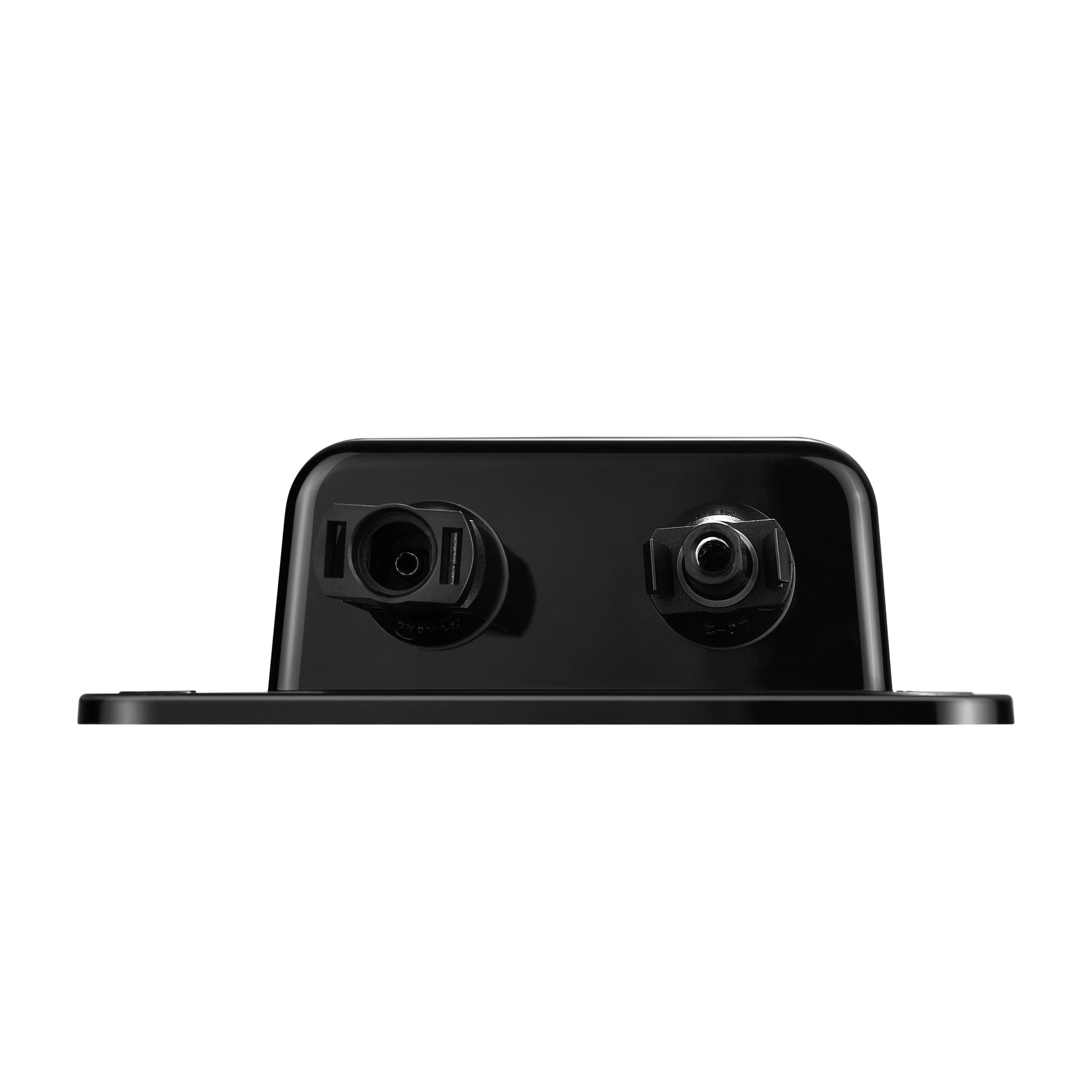

  • Front connector view of the RICH SOLAR 8AWG cable entry plate

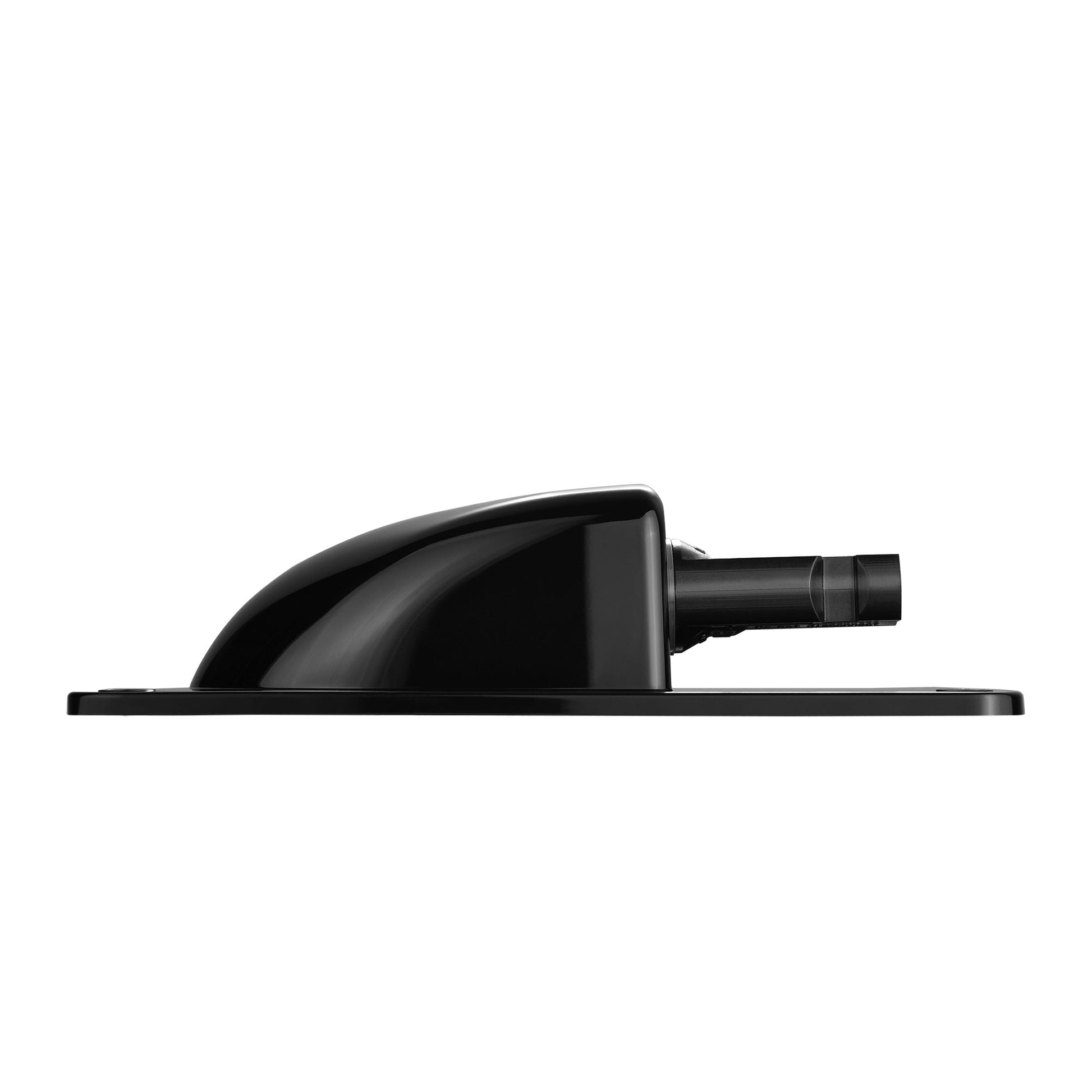

  • Side profile of the RICH SOLAR 8AWG cable entry plate showing domed housing and connector ports

RICH SOLAR

RICH SOLAR Cable Entry Plate Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

RICH SOLAR Cable Entry Plate Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

SKU: RS-G05

$28.99
$28.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

A low-profile route for positive and negative solar conductors

Bring 8AWG solar wiring through a roof in one compact RS-G05 housing.

The RICH SOLAR RS-G05 cable-entry plate packages red and black tin-plated copper conductors in a flame-retardant polypropylene housing. The current manufacturer ratings list 37.7A continuous current, 50A maximum current and a 600V wire rating for a correctly designed RV, boat, cabin or off-grid installation.

RICH SOLAR RS-G05 solar cable entry plate

At a glance

The housing and conductor limits to confirm

8AWGWire size
37.7AContinuous current
50AMaximum current
5.9 × 4.3 × 1.6 inHousing size
IP ratings apply to named components and proper assembly

The preinstalled IP68 solar connectors is listed for sealed outdoor service under its stated conditions. The roof opening, mounting holes, adhesive or sealant, cable routing and interior termination still need a compatible waterproofing method.

RICH SOLAR RS-G05 roof-entry dimensions and conductor layout

Why it stands out

Cleaner cable routing with fewer loose entry parts

Preassembled polarity leadsRed and black conductors make array polarity easier to trace through the roof penetration.
Outdoor-ready componentsTin-plated conductors, flame-retardant housing and rated entry hardware support properly sealed mobile and off-grid installations.
Compact roof footprintThe 5.9 × 4.3 × 1.6 in housing weighs 0.34 lb, helping keep the penetration organized without a large junction enclosure.

System fit

Plan the roof penetration and current path together.

Confirm the 5.9 × 4.3 × 1.6 in footprint, roof structure, cable bend radius, entry orientation, drainage and service access. Size the 8AWG conductors and protection for the complete circuit; a 600V wire rating does not establish the allowed array voltage by itself.

Strong use casesRV, trailer, van, boat and small-cabin solar arrays that need a protected positive-and-negative roof pass-through.
Installation checksRoof material and thickness, compatible adhesive or sealant, screw suitability, array current and voltage, conductor support, strain relief and interior termination.

In the box

What this RS-G05 listing covers

  • 1 × RICH SOLAR RS-G05 cable-entry plate with preinstalled red and black 8AWG conductors

Roof adhesive, sealant, screws, interior junction box, extension cable, fuse or breaker, solar panels and installation labor are not listed as included.

Product confidence

Use a roof-compatible sealing system

Long-term weather resistance depends on surface preparation, compatible sealant or adhesive, fastening, cable support and periodic inspection. Follow the current RICH SOLAR instructions and the roof maker's requirements.

Common questions

RS-G05 installation questions

Does the plate include roof sealant or screws?

No. Choose adhesive, sealant and any fasteners for the exact roof material, exposure and repair method.

Can I use it with any solar array?

Only if the complete circuit fits the 8AWG conductors, 37.7A continuous-current rating, component voltage limits, connectors and required protection.

Does IP68 make the whole roof penetration waterproof?

No. The named entry component is rated when correctly assembled; the cutout, mounting holes and housing-to-roof joint still depend on proper installation.

Should the entry face forward or backward?

Follow the current mounting instructions and orient it to limit wind-driven water, protect cable bend radius and maintain drainage and service access.
