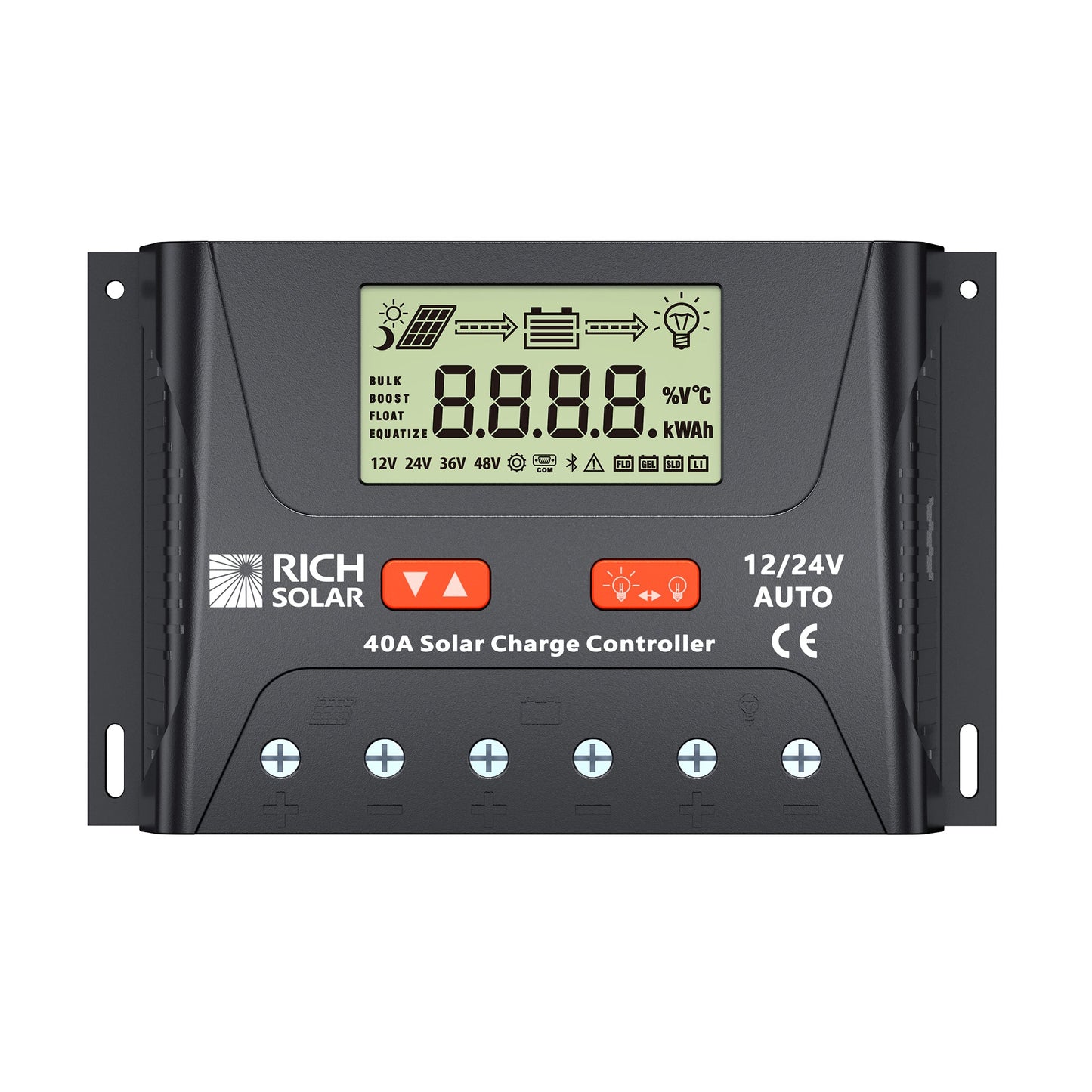

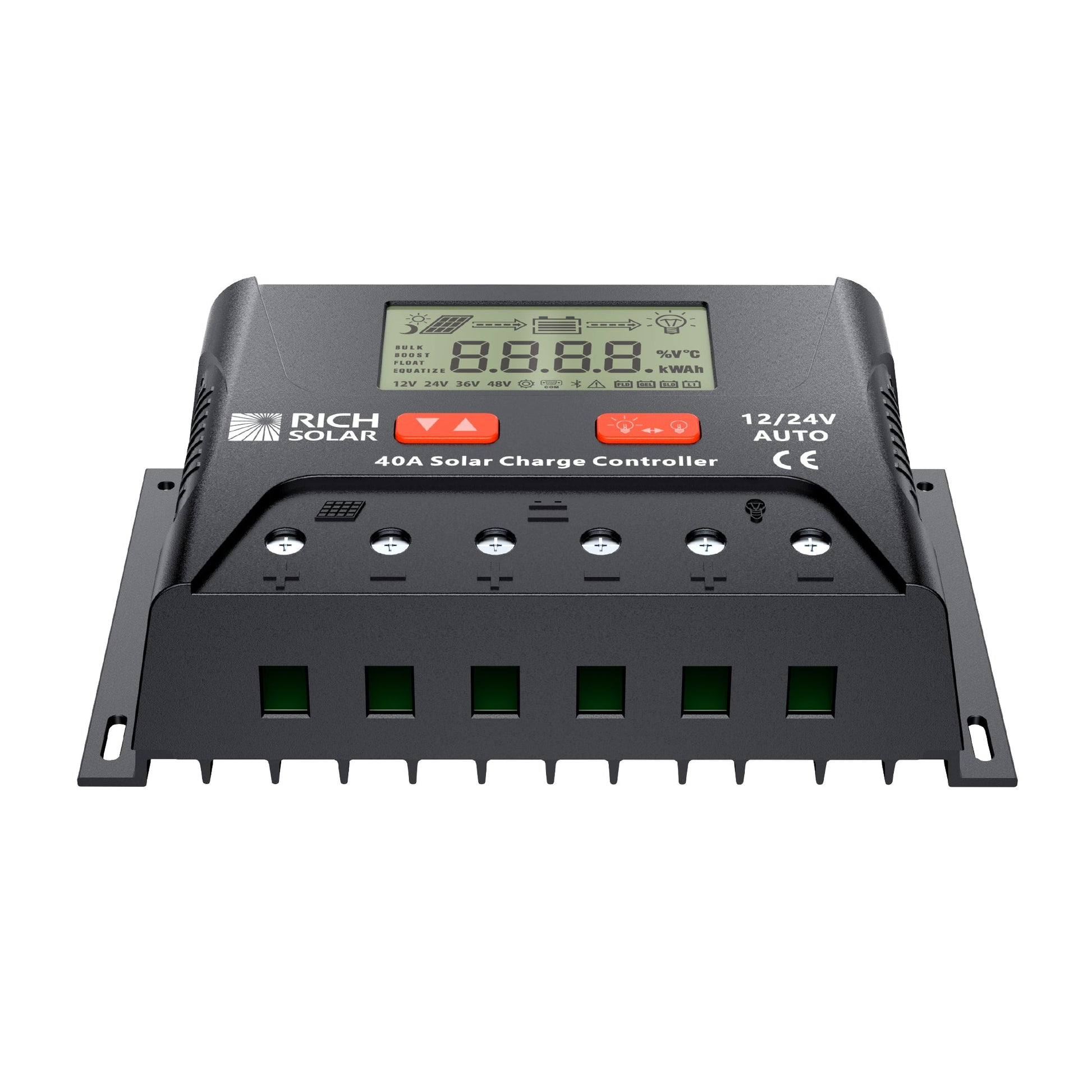

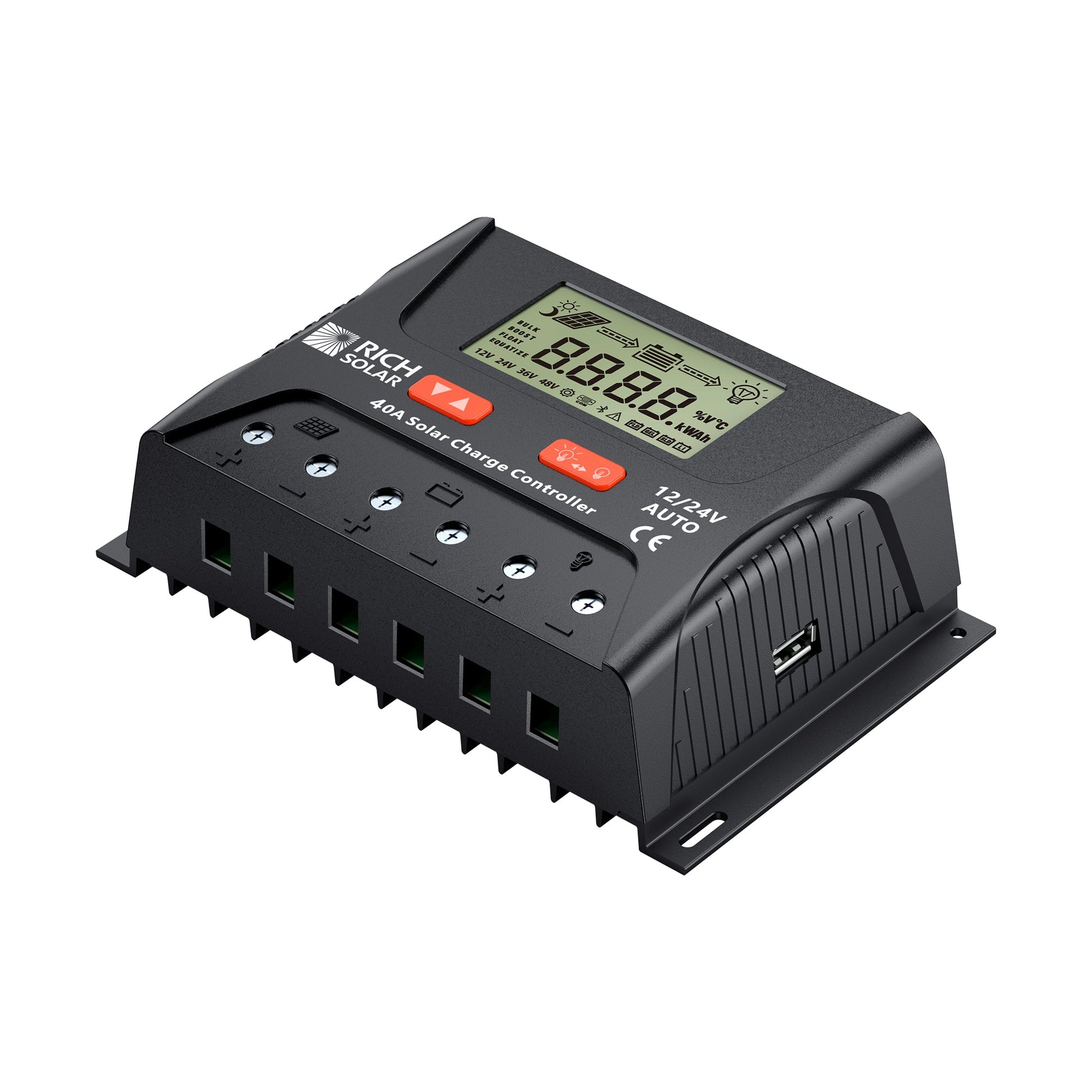

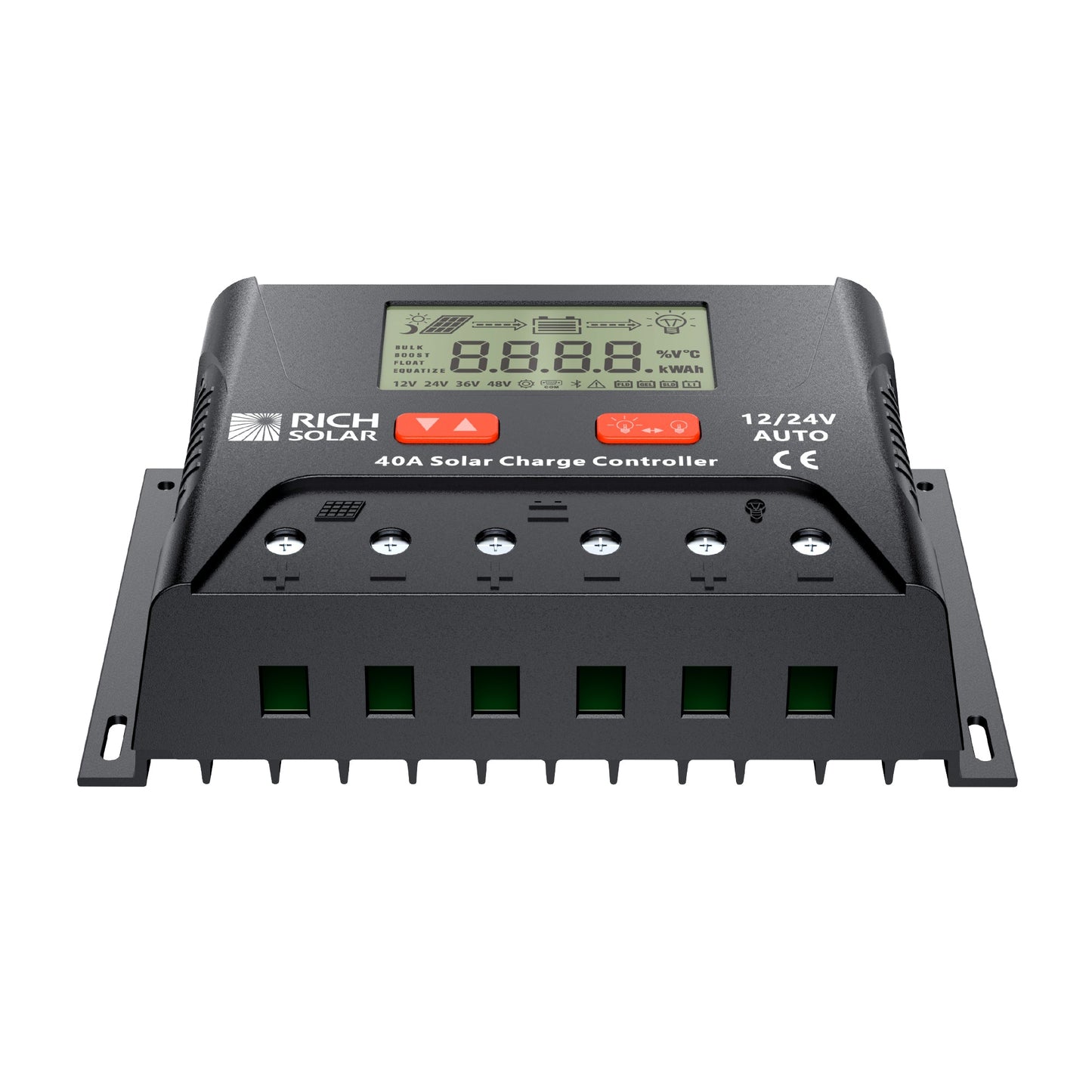

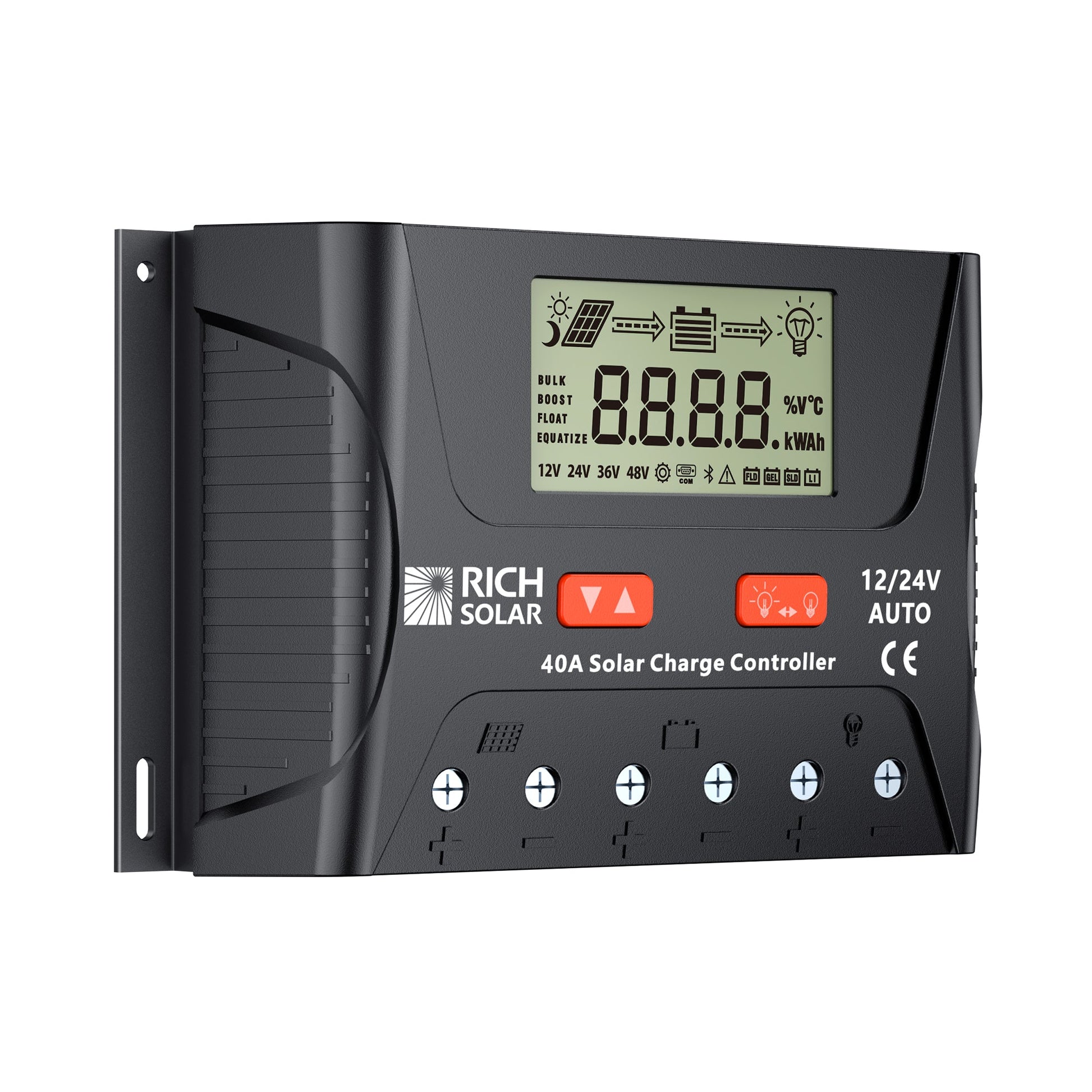

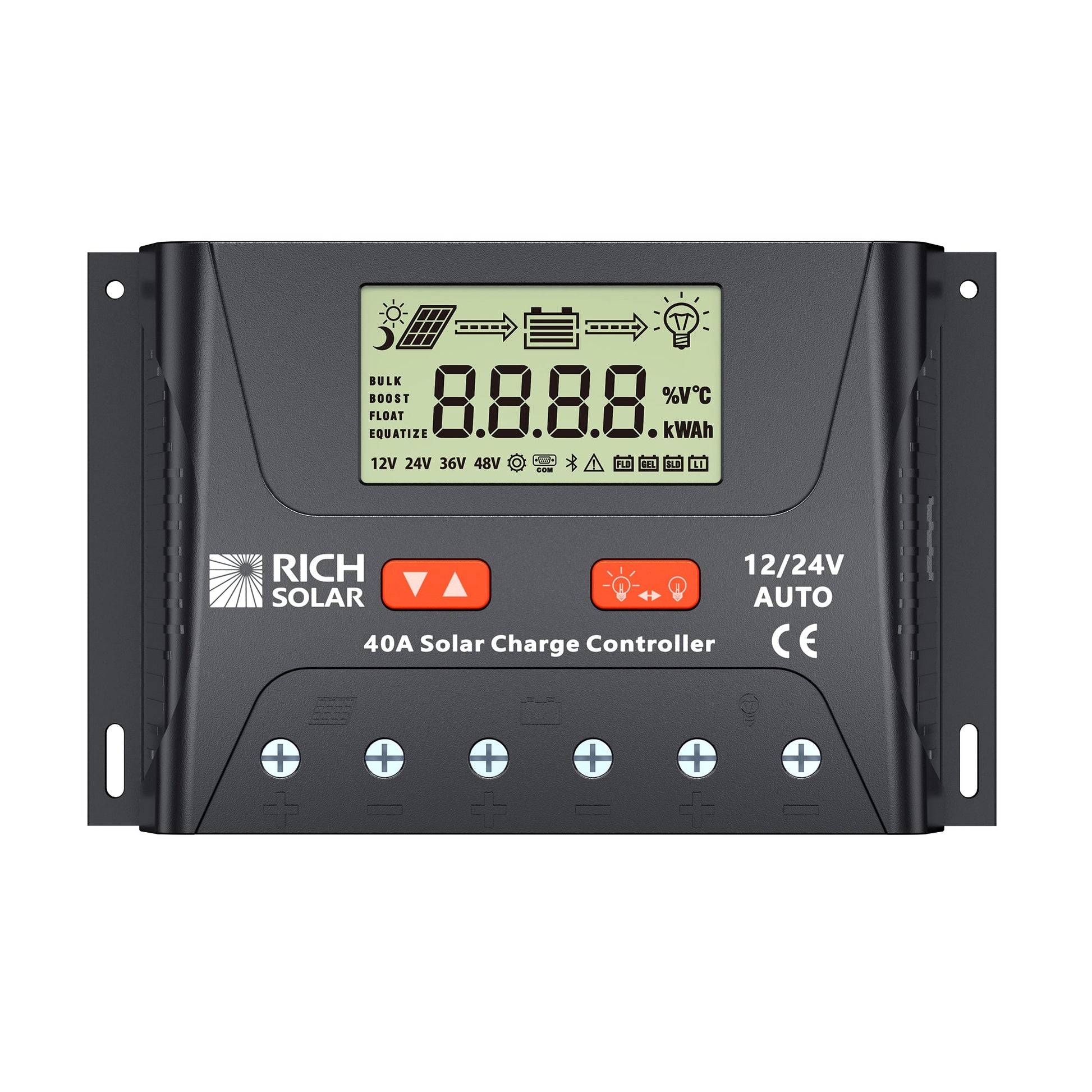

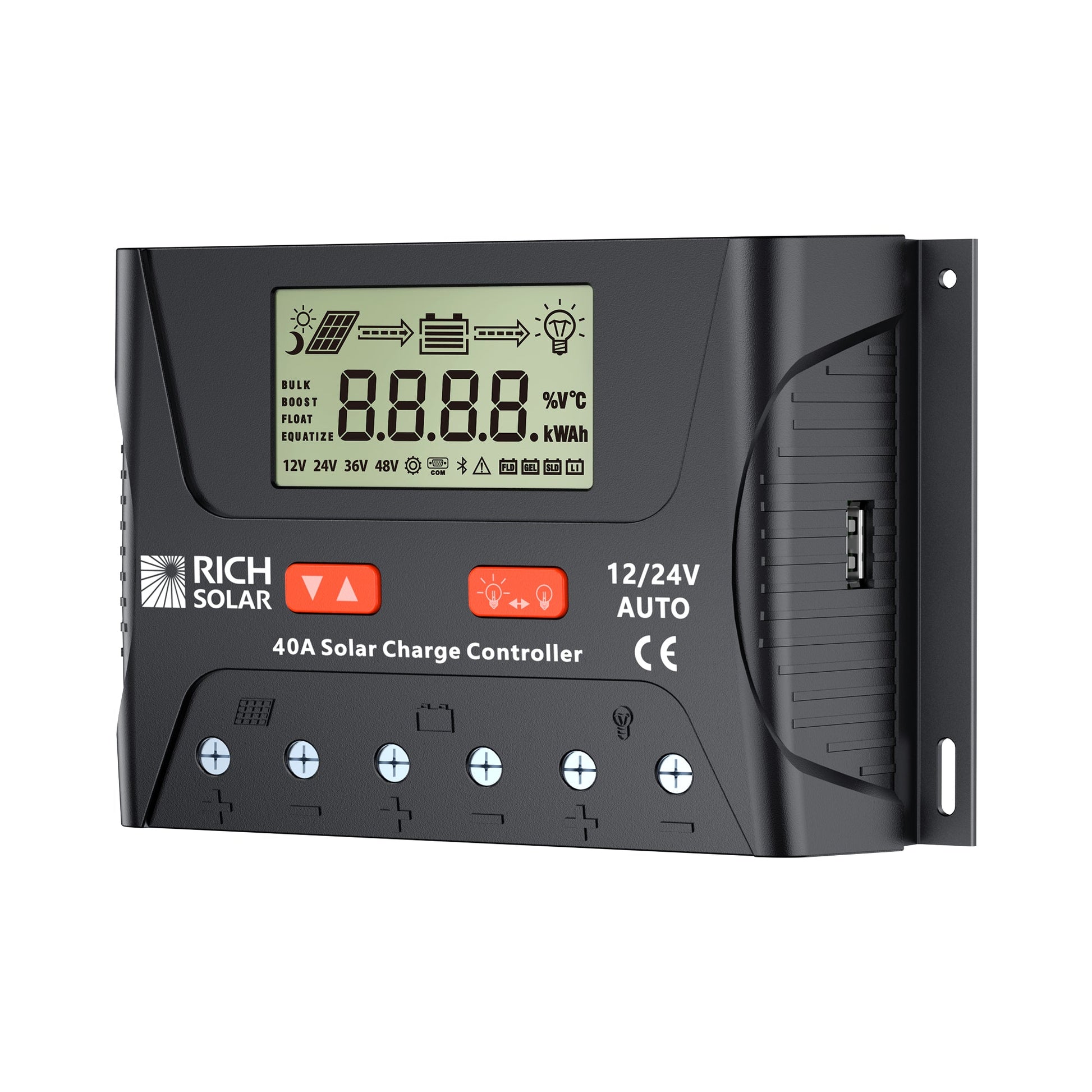

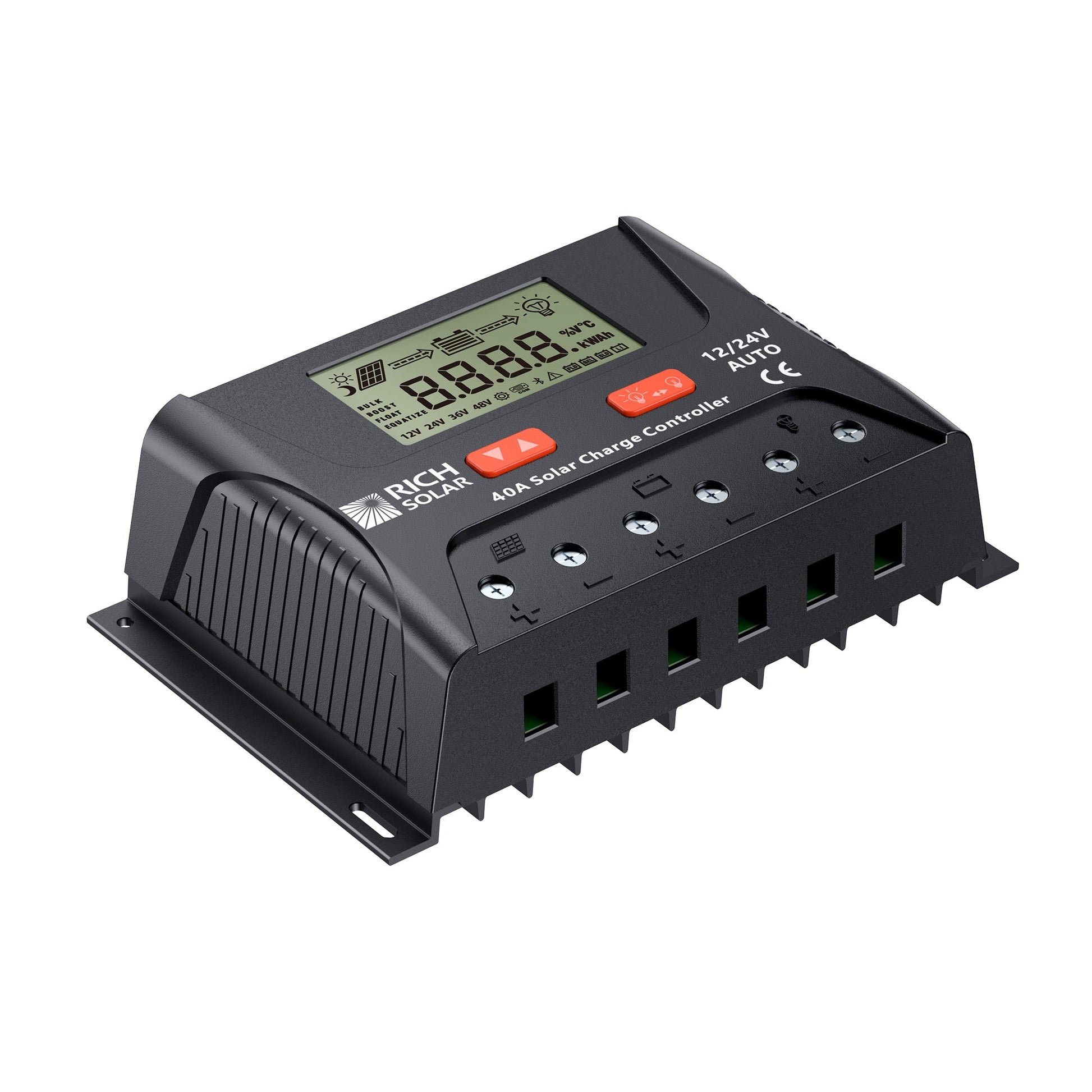

RICH SOLAR BRAVO LEGEND 40 40 Amp PWM Solar Charge Controller
RICH SOLAR BRAVO LEGEND 40 40 Amp PWM Solar Charge Controller
SKU: RS-PWM40P
- Regular price
- $59.99
- Regular price
- Sale price
- $59.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
PWM charge control for a voltage-matched solar array
Manage up to 40A of solar charging on a 12/24V auto battery system.
The RICH SOLAR BRAVO LEGEND 40 is a PWM solar charge controller for RVs, boats, vans, trailers and compact off-grid systems. It supports 12/24V auto battery architecture, up to 40A of solar current and a published maximum solar input of under 55V.
At a glance
Match current, voltage and environment first
Published power guidance is 600W at 12V or 1,200W at 24V. Unlike an MPPT controller, a PWM controller is not intended to step a high-voltage string down to the battery. Match the panel operating voltage, battery voltage and controller limits in the current manual.
System fit
Treat the array, battery and load output as separate circuits.
Plan around 6.46 × 4.07 × 1.85 in, 0.86 lb, ventilation, service access and the IP30 environmental limit. Confirm panel voltage, charge current, conductor size, terminal torque, overcurrent protection, grounding arrangement and any optional temperature sensor before wiring.
In the box
What this BRAVO LEGEND 40 listing covers
- 1 × RICH SOLAR BRAVO LEGEND 40 PWM solar charge controller (RS-PWM40P)
Solar panels, battery, external temperature sensor, disconnects, fuses or breakers, installation wiring and labor are not listed as included unless the selected listing expressly states otherwise.
Product confidence
Use the current manual for battery settings and environmental limits
Certification claims, warranty eligibility and remedies follow RICH SOLAR's current written documents for the exact model. Equalization and temperature compensation must not be applied to battery types that prohibit them.
Common questions
BRAVO LEGEND 40 system-design questions
Can I connect a high-voltage residential panel?
Not unless its full operating and open-circuit voltage remain inside the controller's published under 55V limit and match the PWM system architecture. Do not choose from wattage alone.
Will it charge lithium batteries?
Published support includes sealed, GEL, flooded and lithium batteries. Confirm the exact lithium profile, low-temperature rules and BMS behavior before selecting the setting.
Is PWM or MPPT better for my project?
PWM can be a practical choice for a small, voltage-matched array. MPPT is generally more flexible when array voltage is substantially above battery voltage or maximizing harvest matters.
Does the controller include every cable and fuse?
No. Size conductors, disconnects and overcurrent protection from maximum circuit current, run length, terminal limits and local requirements.
Product Data
Technical Specifications
| Rated Current | 40A |
|---|---|
| System Voltage | Auto recognition: 12V/24V (Manual setup optional) |
| Rated Power | 600W @12V / 1200W @24V |
| Max. Solar Input Voltage | < 55V |
| Max. Battery Voltage | < 34V |
| No-load Loss | <13mA @12V / <15mA @24V |
| Battery Compatibility | Lithium / Sealed / GEL / Flooded |
| Operating Temperature | –13°F to +131°F (–25°C to +55°C) |
| Protection Rating | IP30 (Dust/Splash Resistant) |
| Dimensions | 164×103×47 mm (6.46×4.07×1.85 in) |
| Net Weight | 0.39 kg (0.86 lb) |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-PWM40P |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
