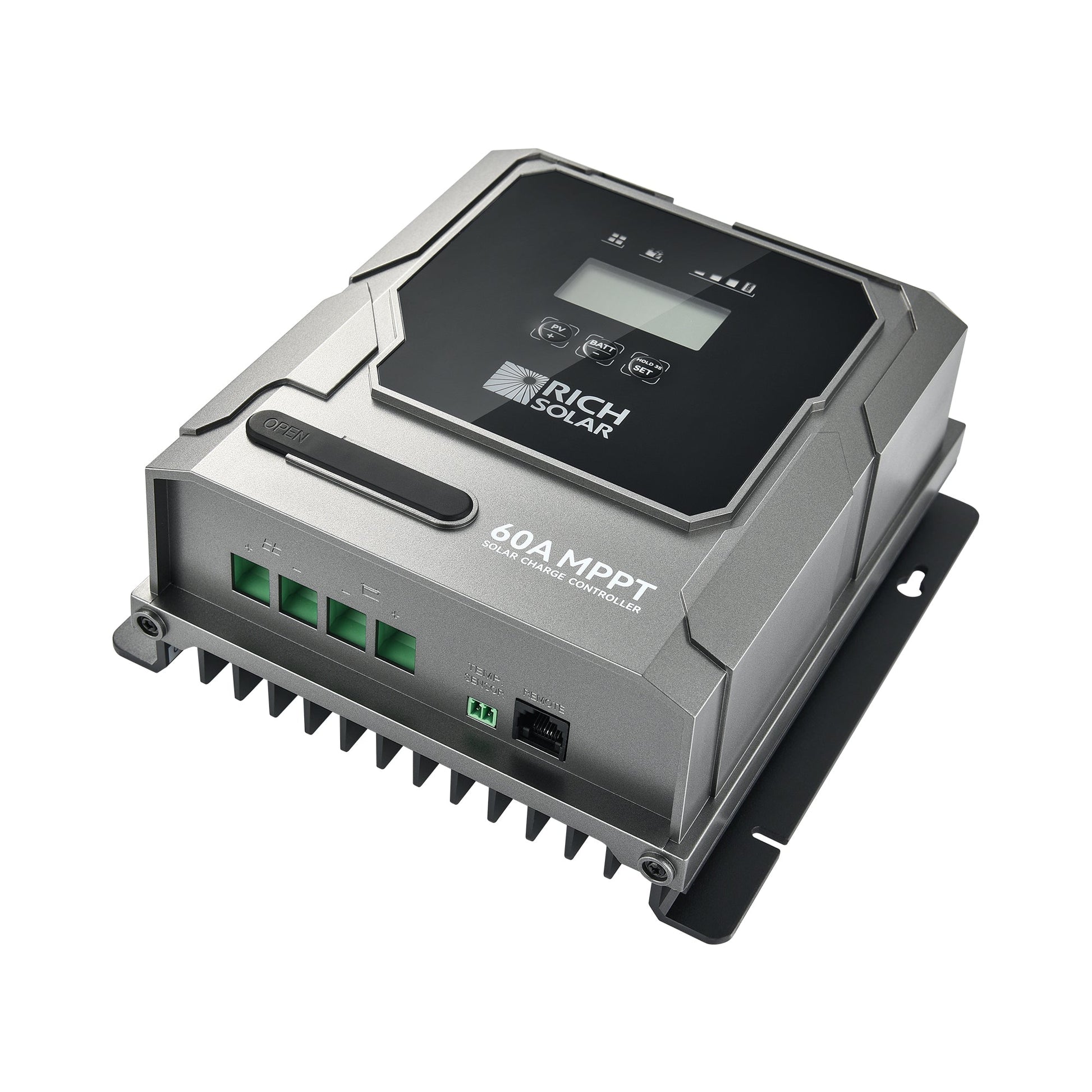

• RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 1

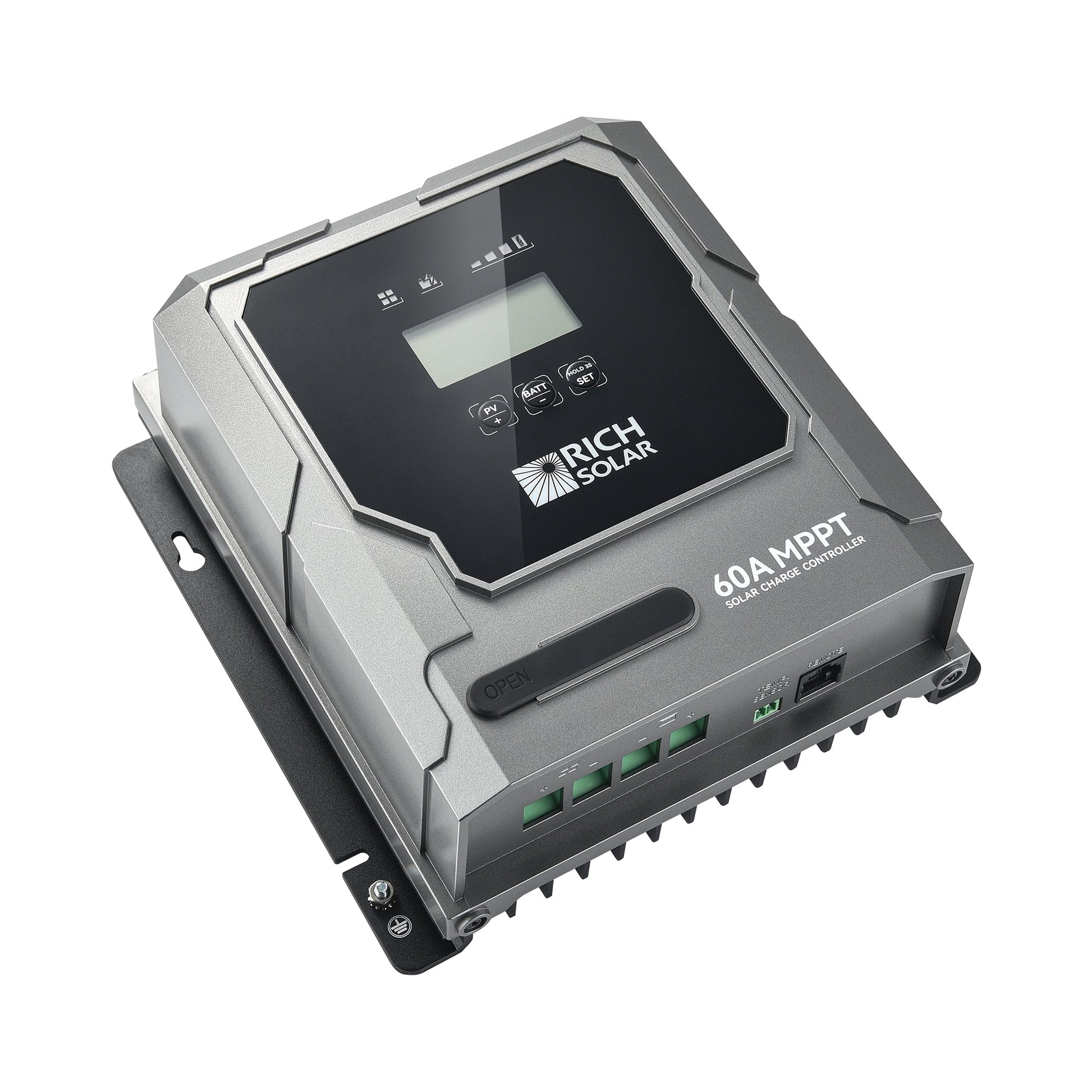

  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 2

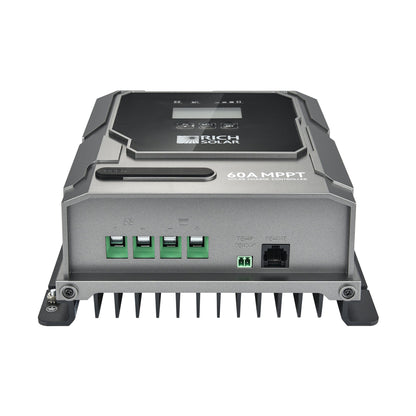

  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 3
  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 4

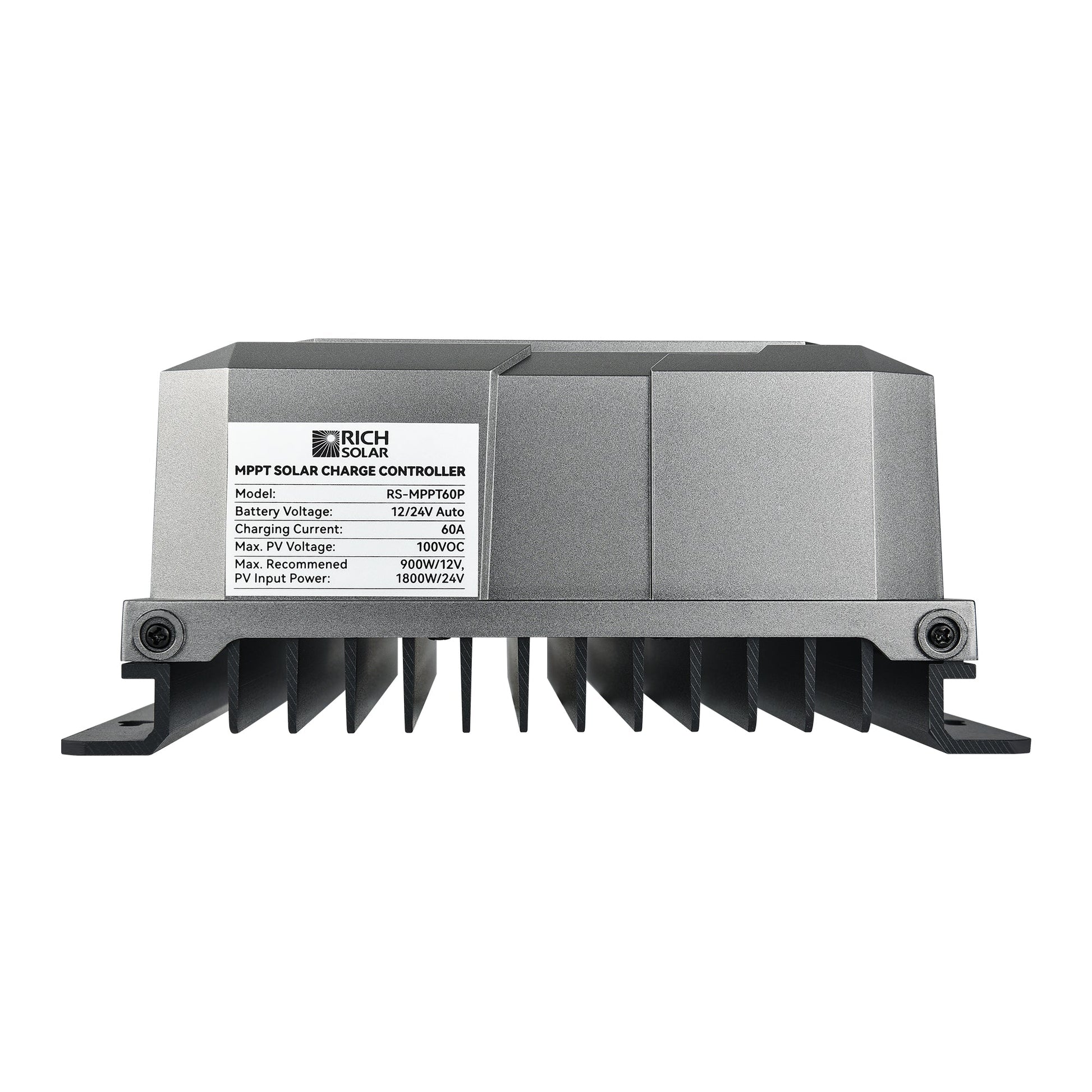

  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 5

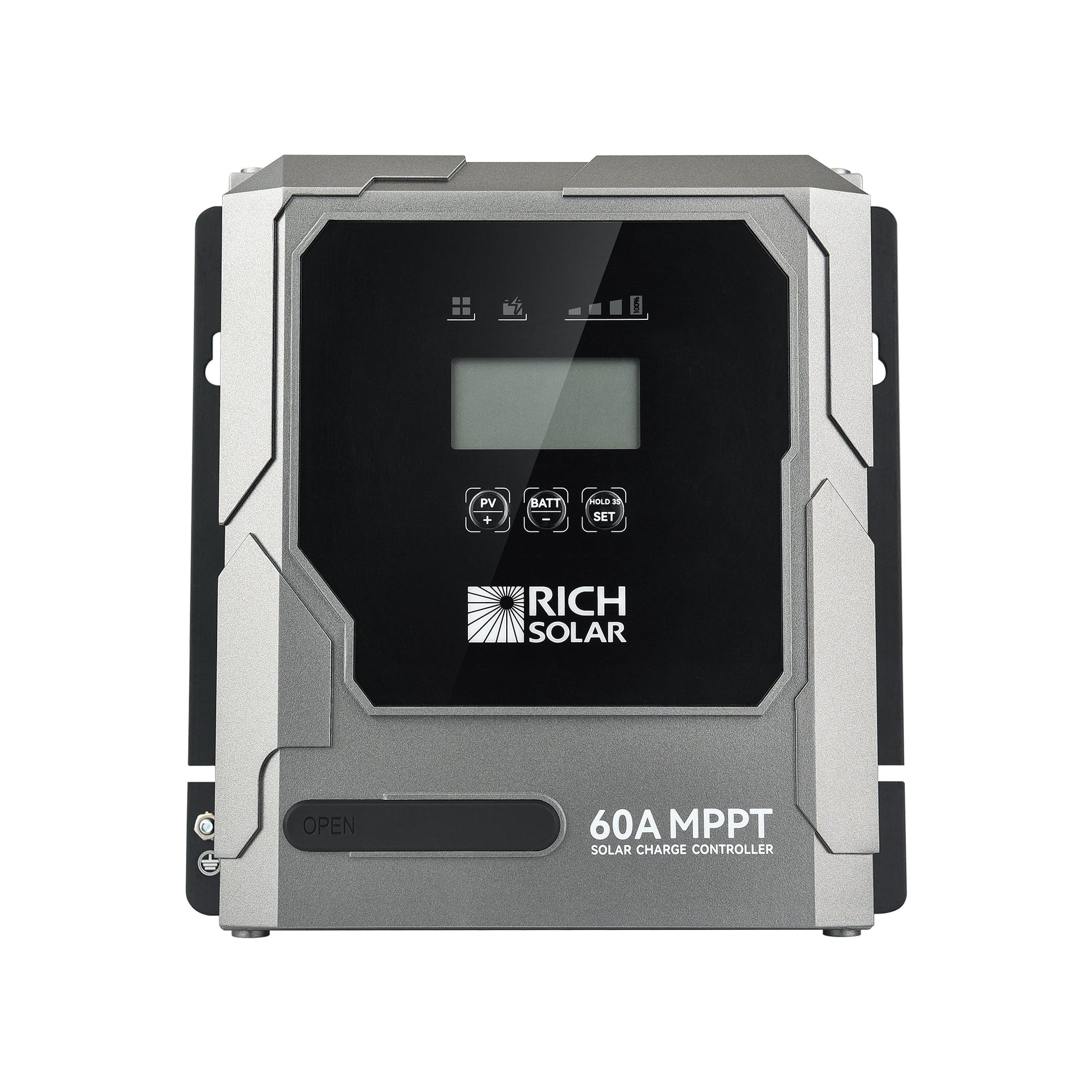

  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 6

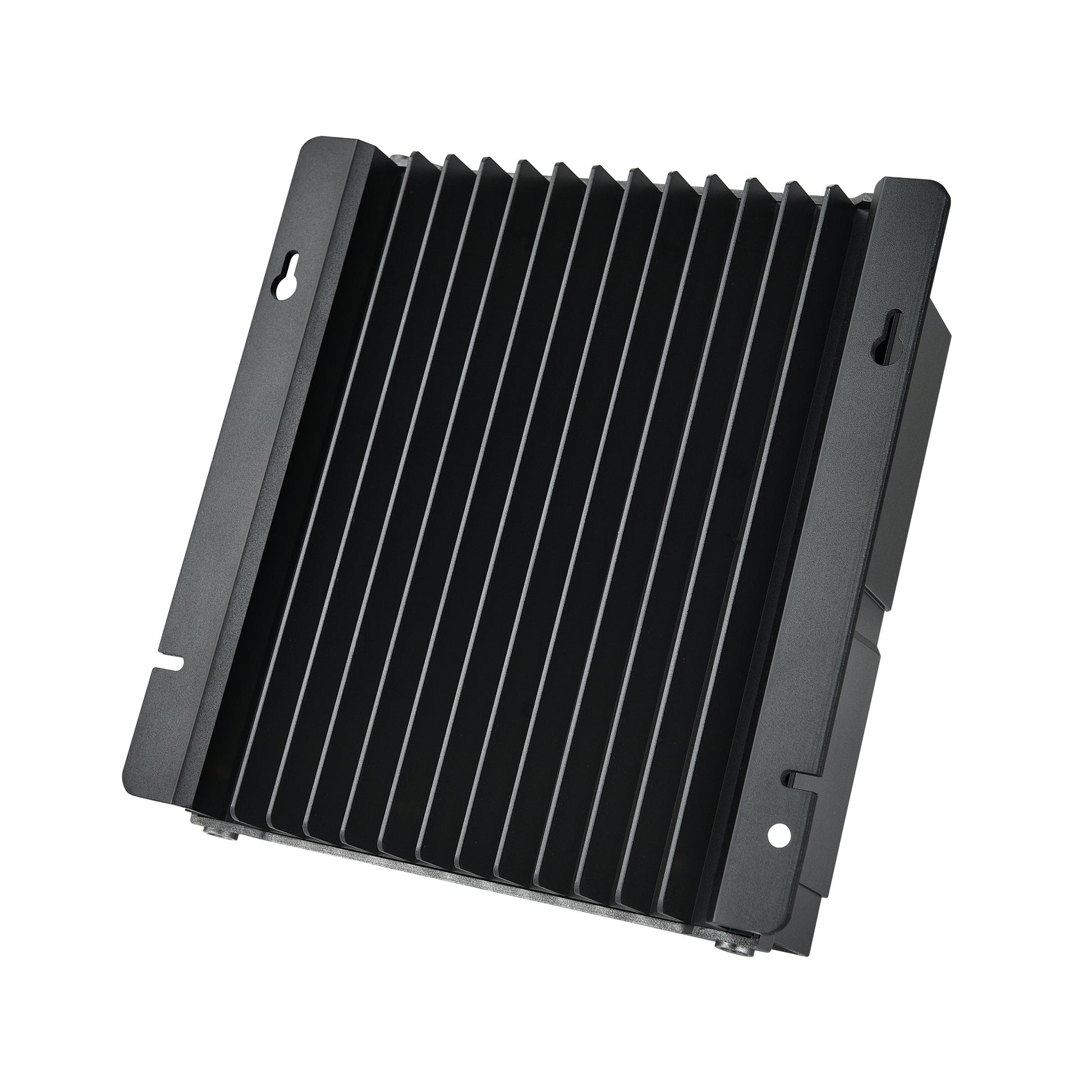

  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 7

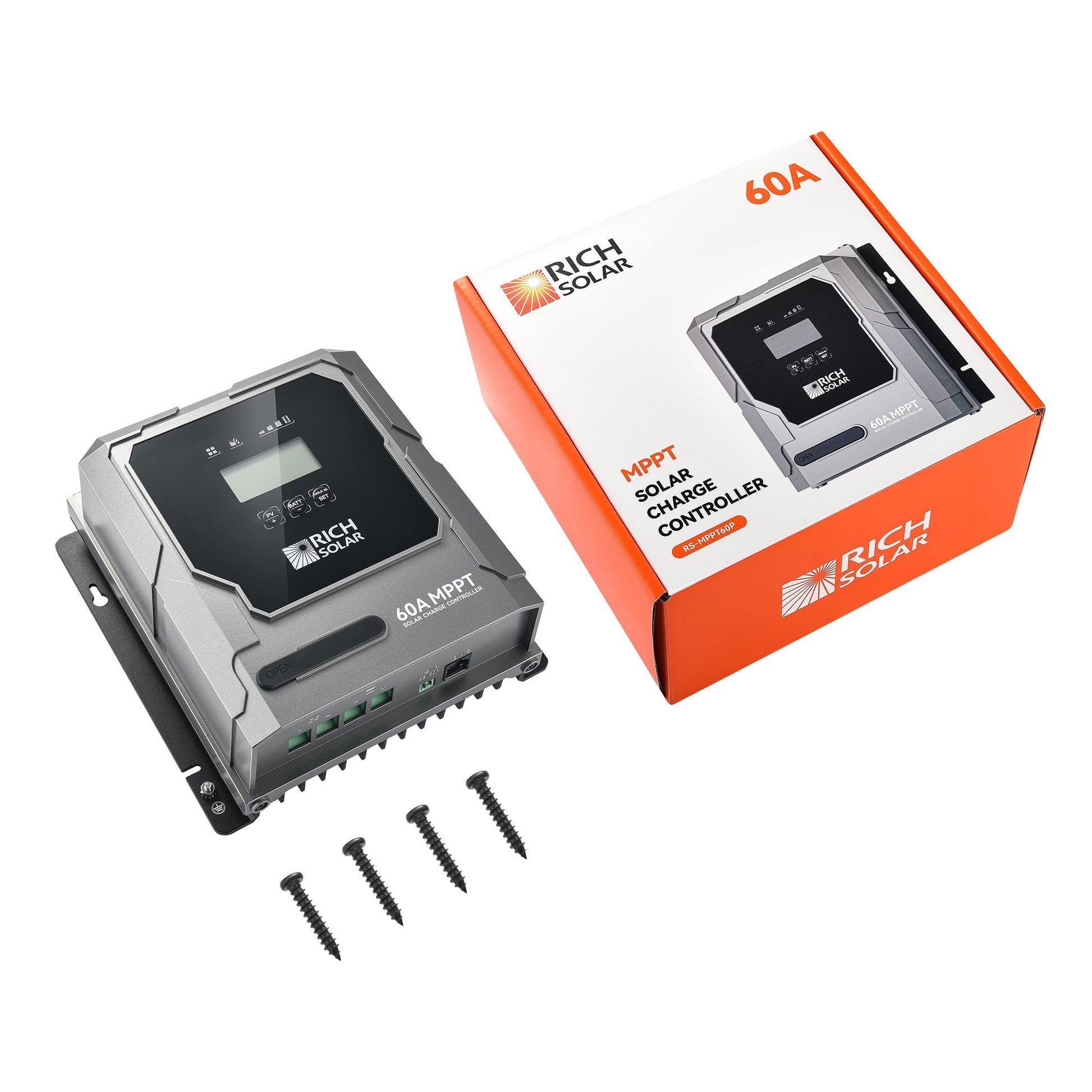

  • RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller product image 8

RICH SOLAR

RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller

RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller

SKU: RS-MPPT60P

$219.99
$219.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

MPPT charging for a measured solar and battery system

Manage up to 60A of solar charging with a controller built around 12/24V auto battery banks.

The RICH SOLAR BRAVO 60 is an MPPT solar charge controller for RVs, boats, cabins and off-grid battery systems. Its published limits pair a 60A maximum charging current with 100VDC maximum PV open-circuit voltage, giving system designers room to build efficient arrays without guessing at the controller's electrical ceiling.

RICH SOLAR BRAVO 60 MPPT solar charge controller

At a glance

The four limits to match first

60AMax charge current
12/24V autoBattery voltage
100VDCMax PV open circuit
4.18 lbController weight
PV watts never replace voltage and current checks

The listed recommended PV input is 900W at 12V or 1,800W at 24V. String voltage must remain below 100VDC after cold-weather correction, and parallel current must stay within the controller, conductor and protection limits.

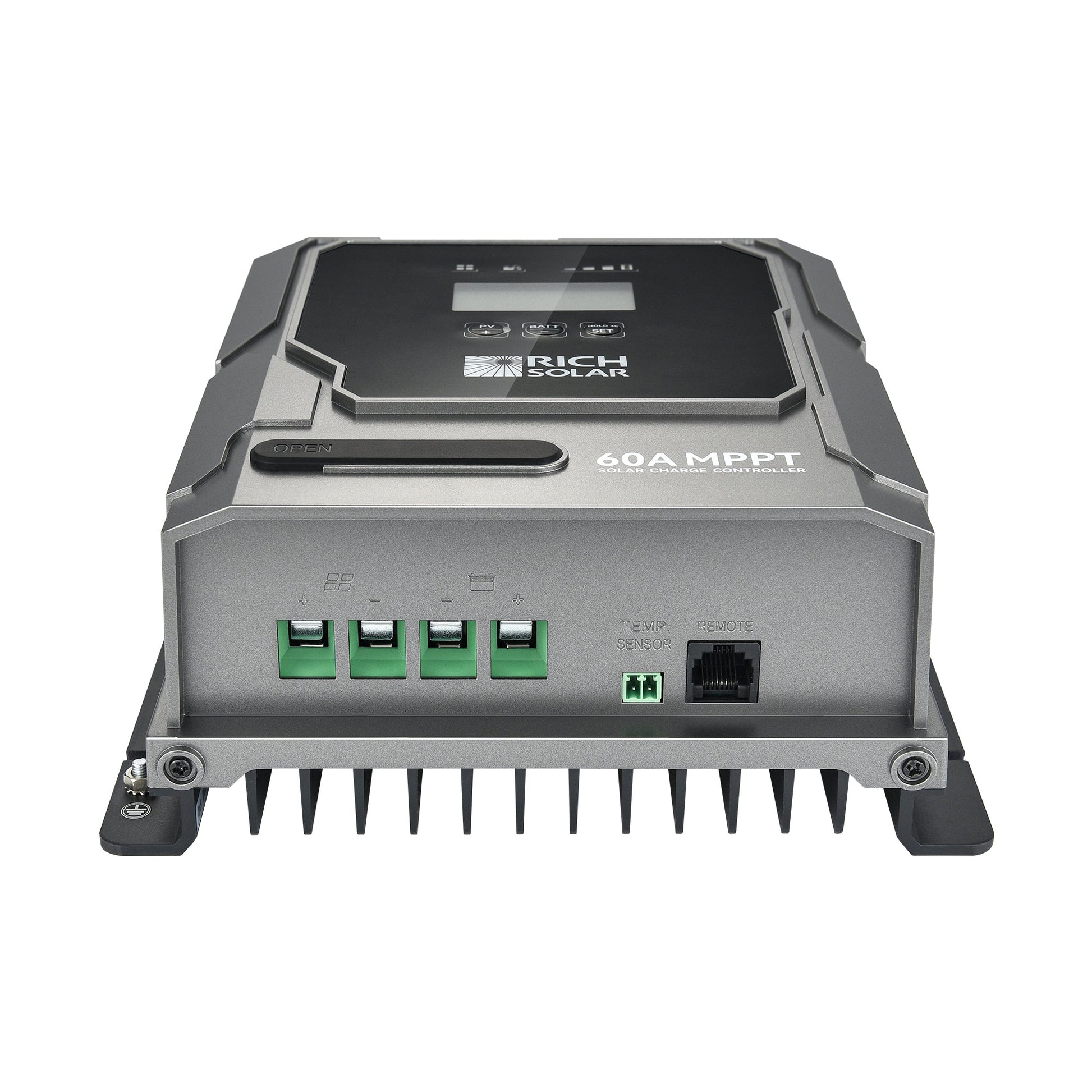

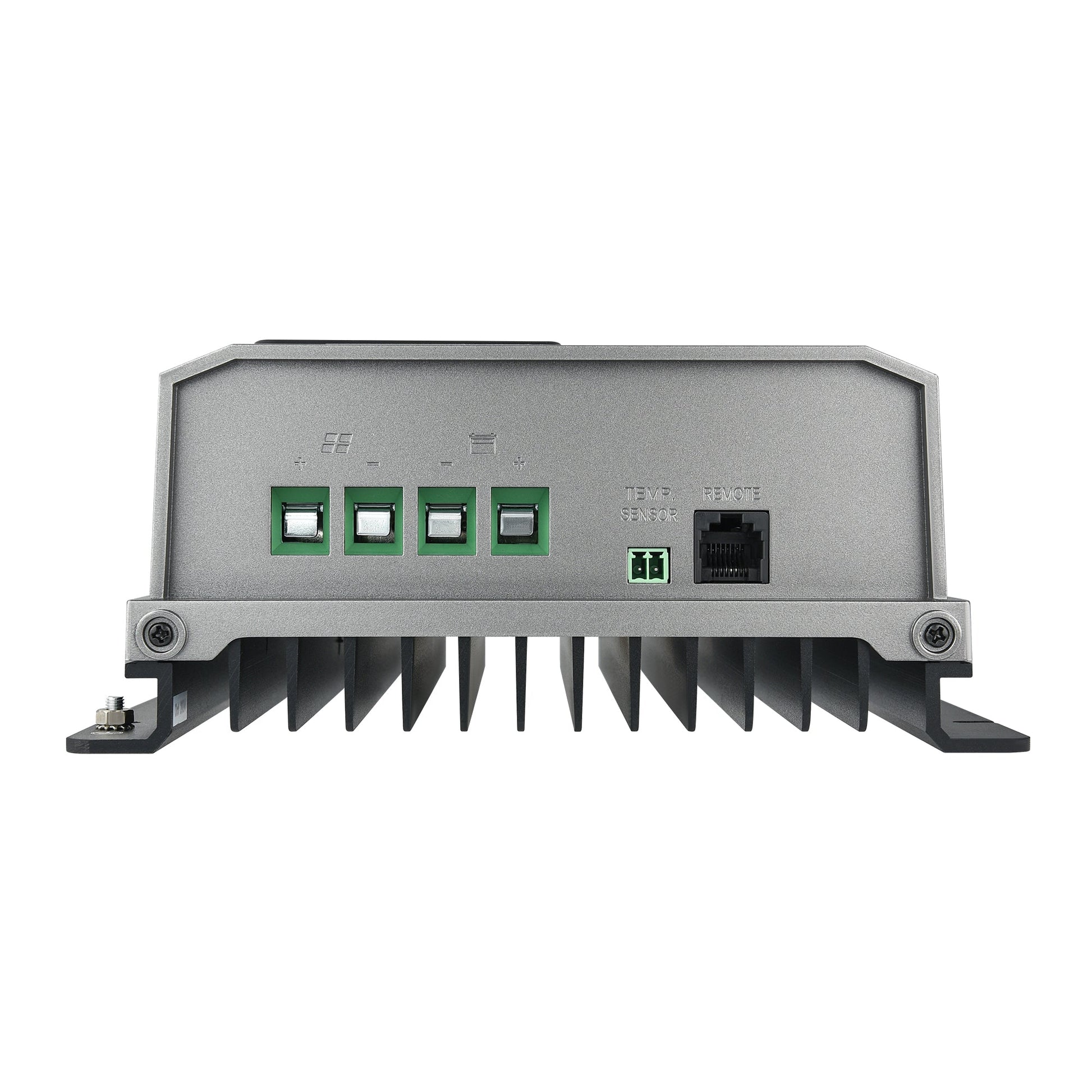

RICH SOLAR BRAVO 60 controls and connection layout

Why it stands out

Efficient charging with configurable battery support

True MPPT operationThe controller tracks the array operating point to improve harvest compared with a basic on/off charging method under changing solar conditions.
Multiple battery profilesPublished presets cover Crystal, Gel, AGM, WET, Calcium, LCO, LFP and LTO; confirm the exact voltage settings against the battery manual before charging.
Protection and monitoringThe controller includes operating-status information and electronic protections. Battery charging current and downstream load current are different design questions.

System fit

Match the array, battery and wiring as one circuit.

Use the 7.9 × 7.7 × 3.3 in enclosure where ventilation, conductor bend radius and service access are available. Confirm the controller's environmental rating, terminal capacity, grounding arrangement and battery-temperature guidance for the installation.

Strong use casesRV and marine house systems in protected locations, cabins and stationary off-grid banks whose array and battery voltage fit the published window.
Confirm before wiringCold-weather array Voc, maximum parallel current, disconnects, overcurrent protection, battery profile, conductor size and whether an optional remote or sensor is required.

In the box

What this BRAVO 60 listing covers

  • 1 × RICH SOLAR BRAVO 60 MPPT solar charge controller

Solar panels, battery, temperature sensor, Bluetooth module or remote display, disconnects, fuses or breakers and installation wiring are separate unless the selected listing expressly states otherwise.

Product confidence

Coverage follows RICH SOLAR's current written terms

Use the current controller manual for installation, settings and environmental limits. Warranty eligibility and remedies follow RICH SOLAR's written policy and exclusions for the exact controller model.

Common questions

BRAVO 60 system-design questions

How much solar can I connect?

Use both the published 900W at 12V or 1,800W at 24V recommendation and the electrical limits. The complete array must remain below 100VDC after temperature correction and inside every current limit.

Will it charge lithium batteries?

Published battery selections include Crystal, Gel, AGM, WET, Calcium, LCO, LFP and LTO. The preset still has to match the exact battery maker's required charge voltage, temperature rules and BMS behavior.

Can I place the controller outdoors?

Do not assume weatherproof installation. Follow the stated ingress rating for the connection area, provide required ventilation and keep terminals protected from water, debris and conductive contamination.

What wire and protection should I use?

Size conductors, disconnects and overcurrent protection from maximum circuit current, run length, terminal limits and local code. The controller amperage alone is not enough to choose them.
