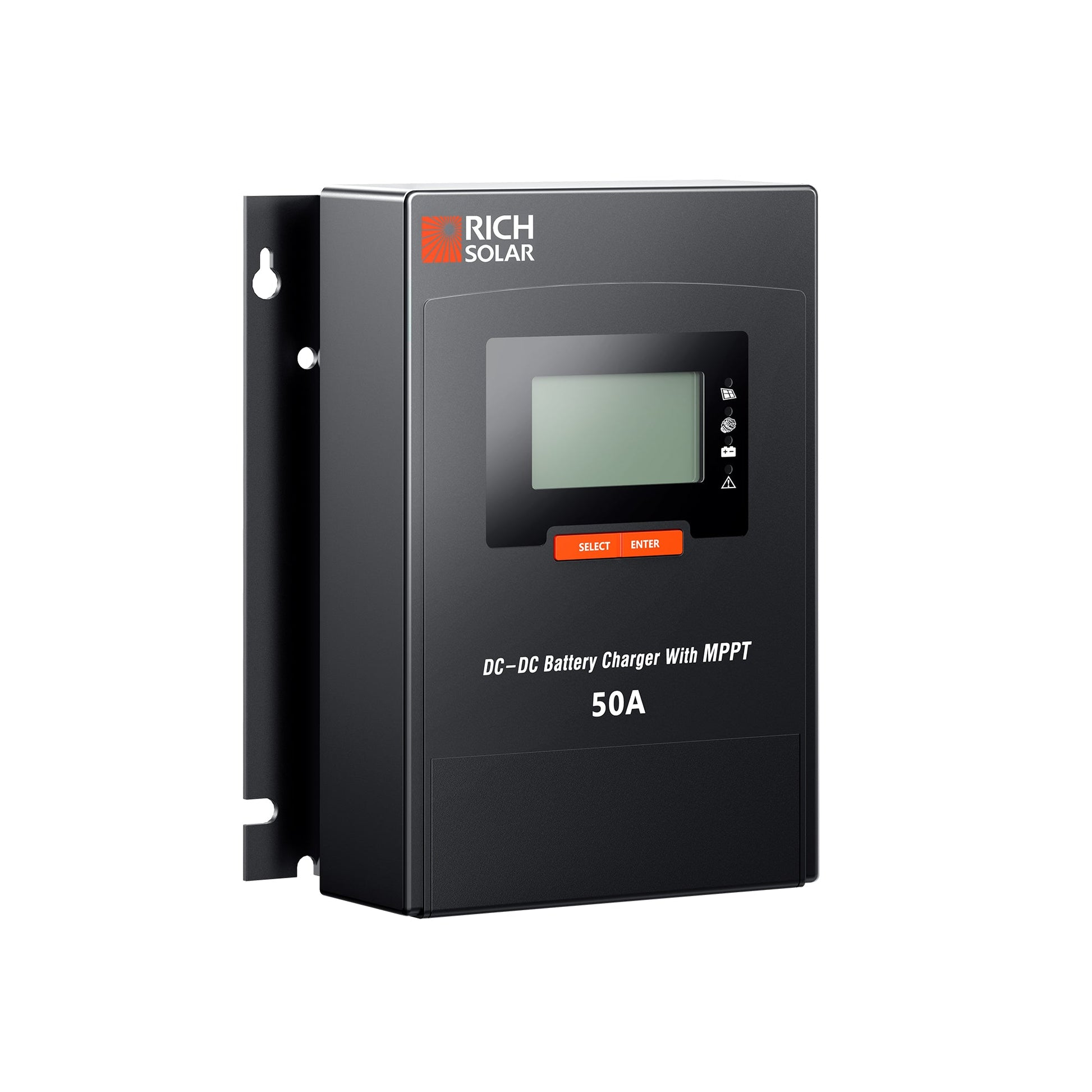

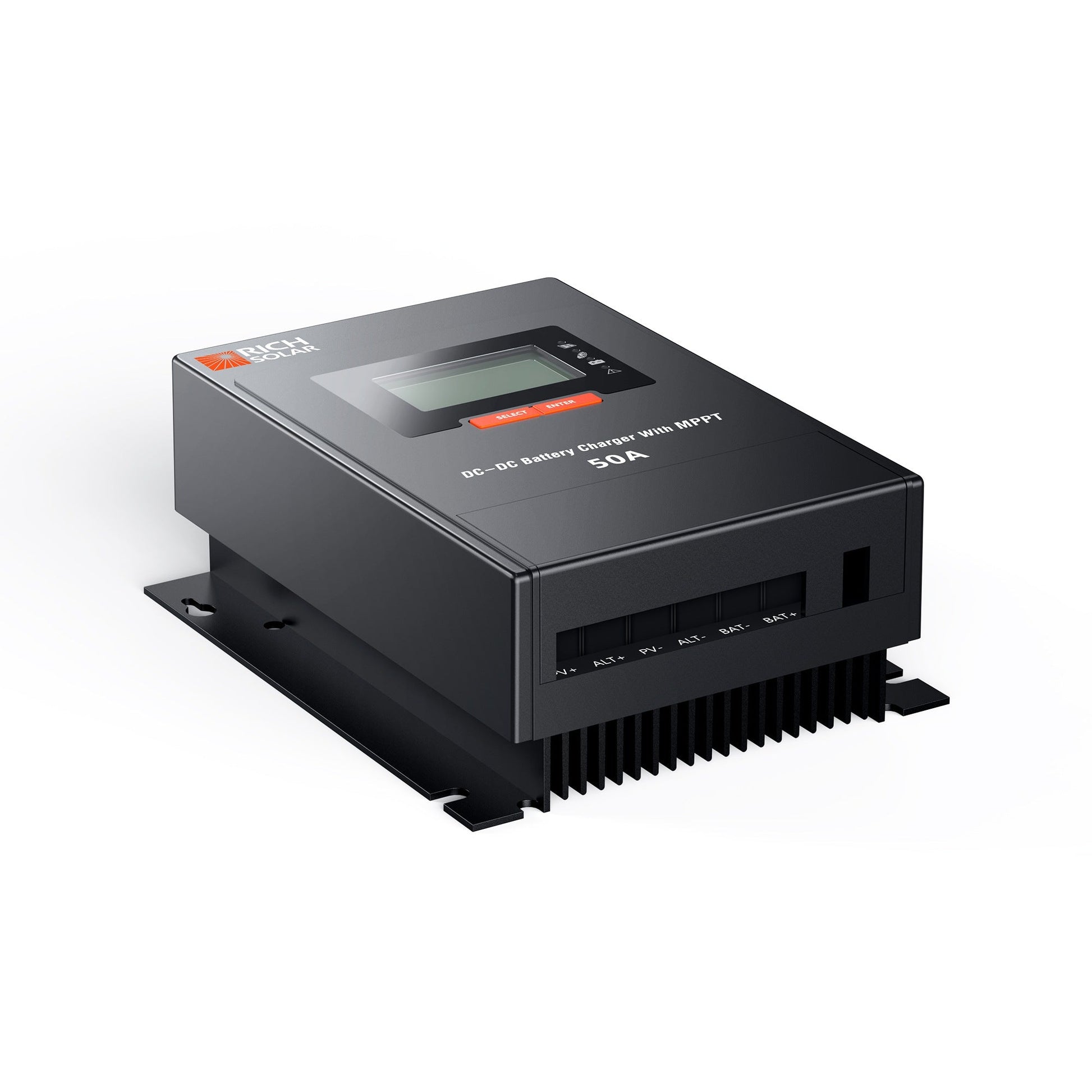

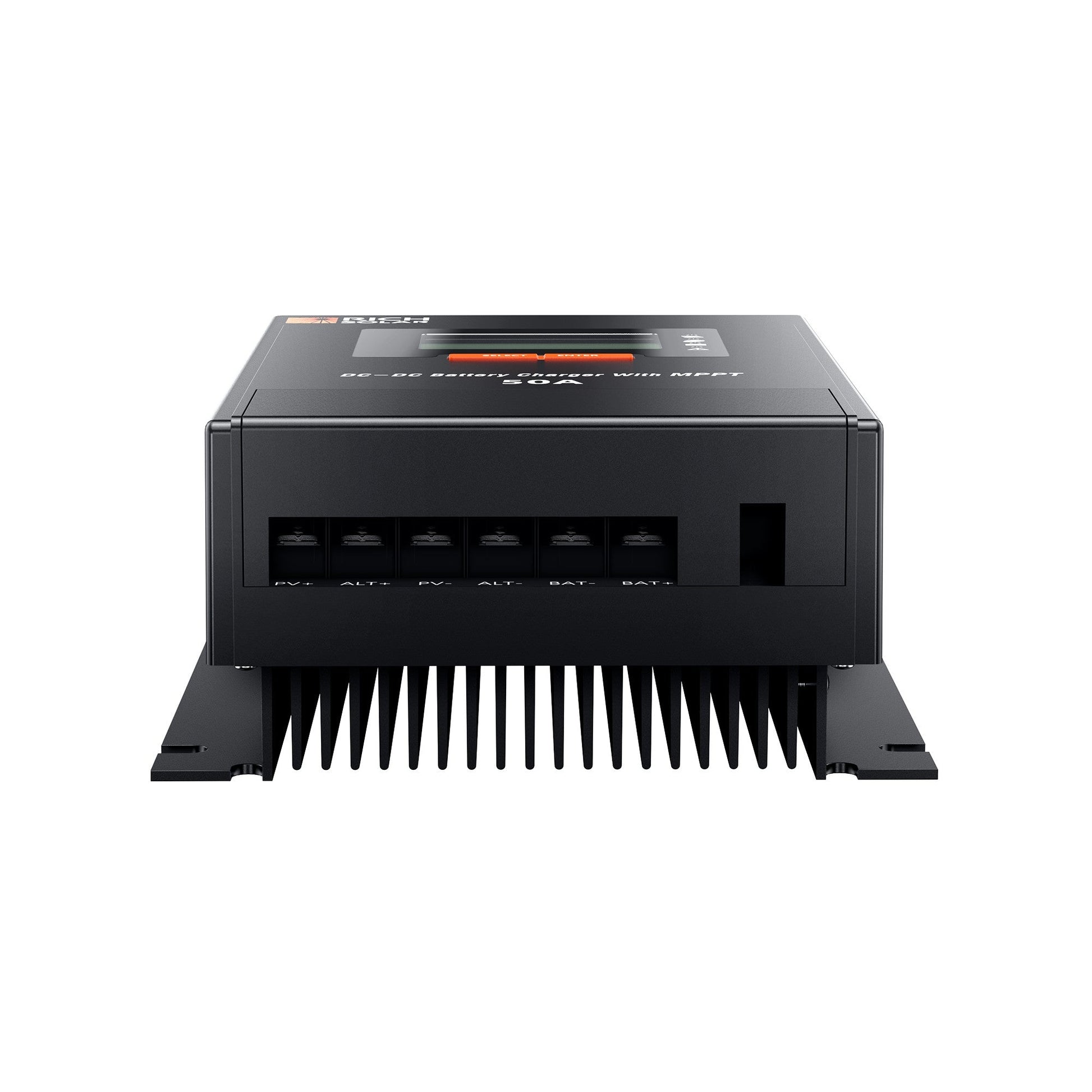

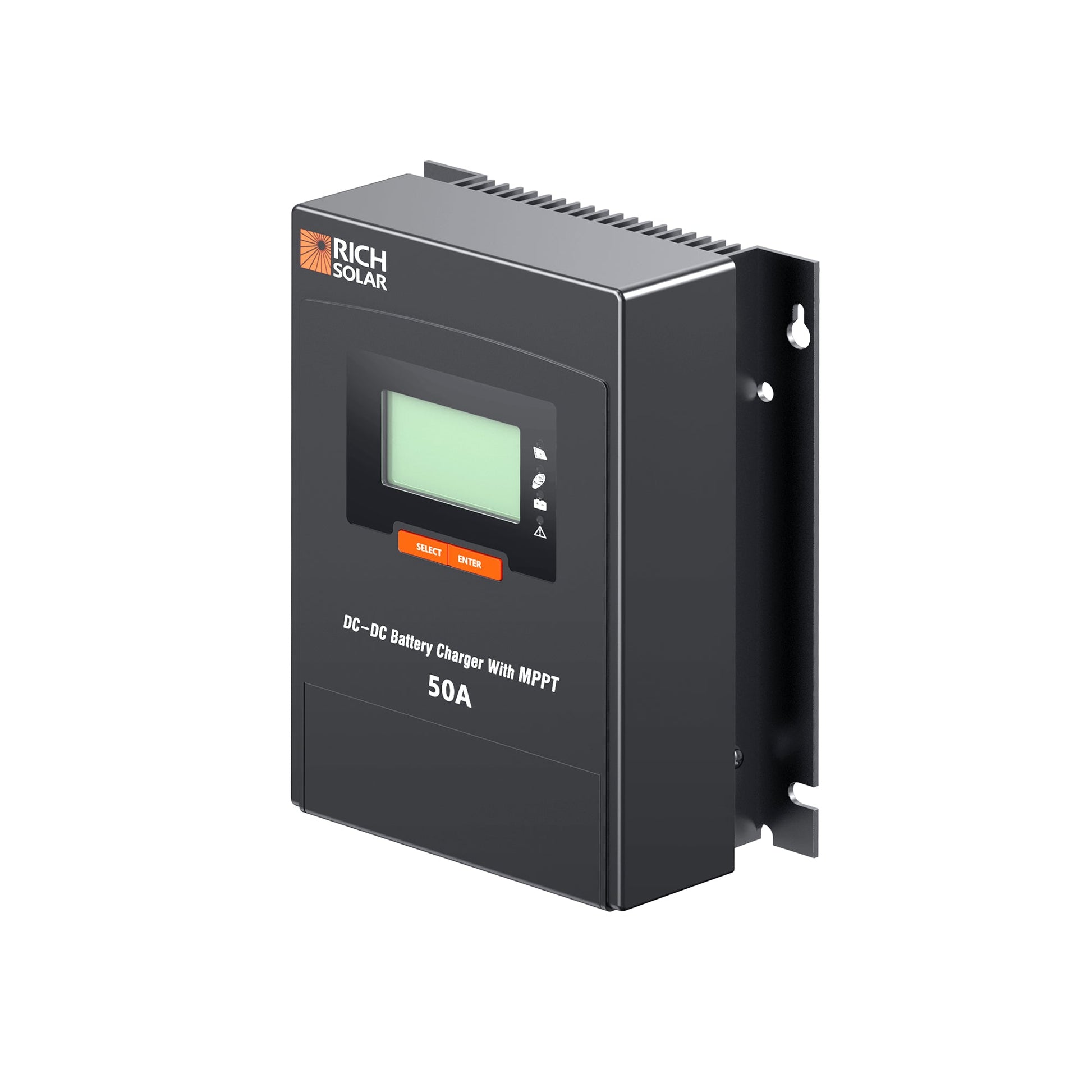

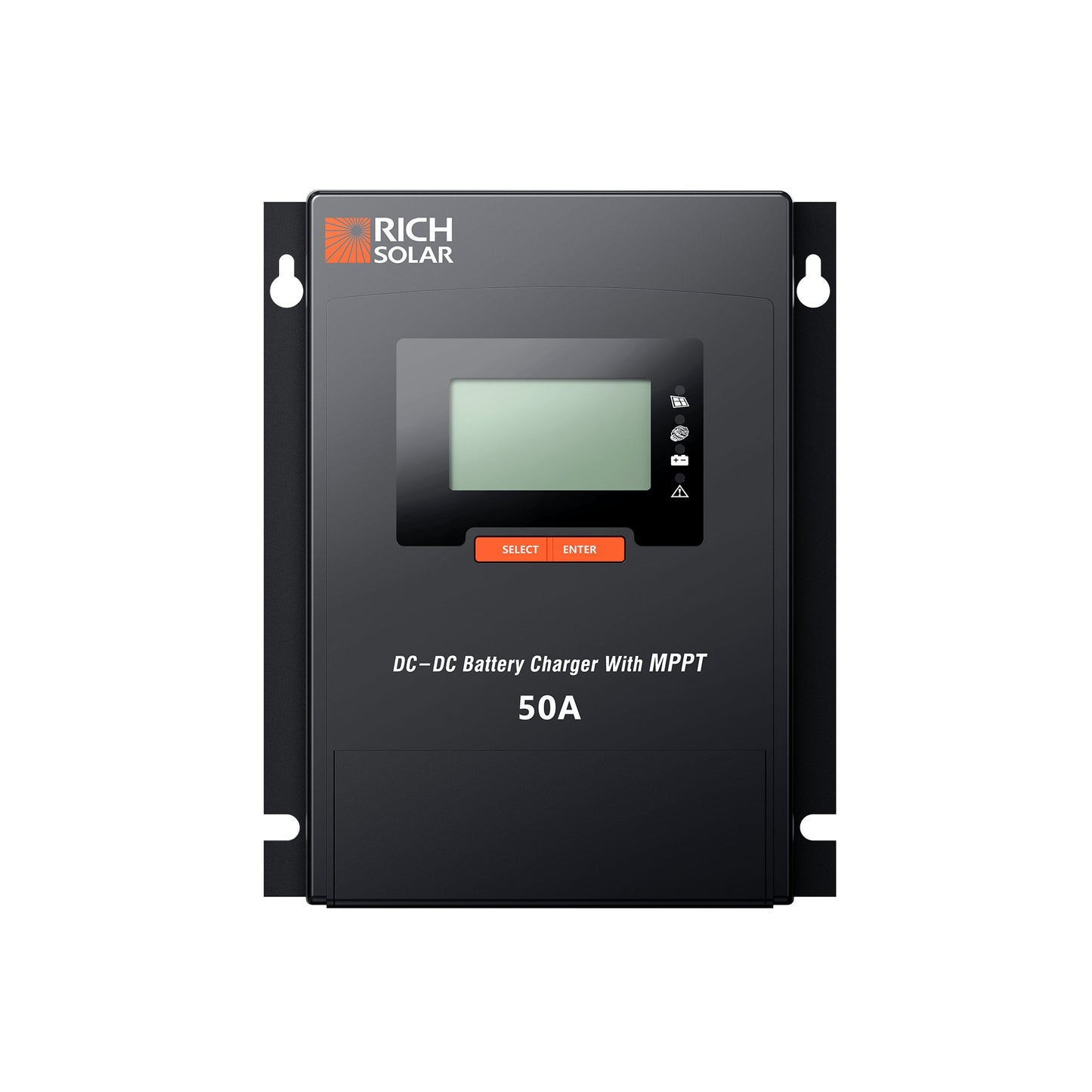

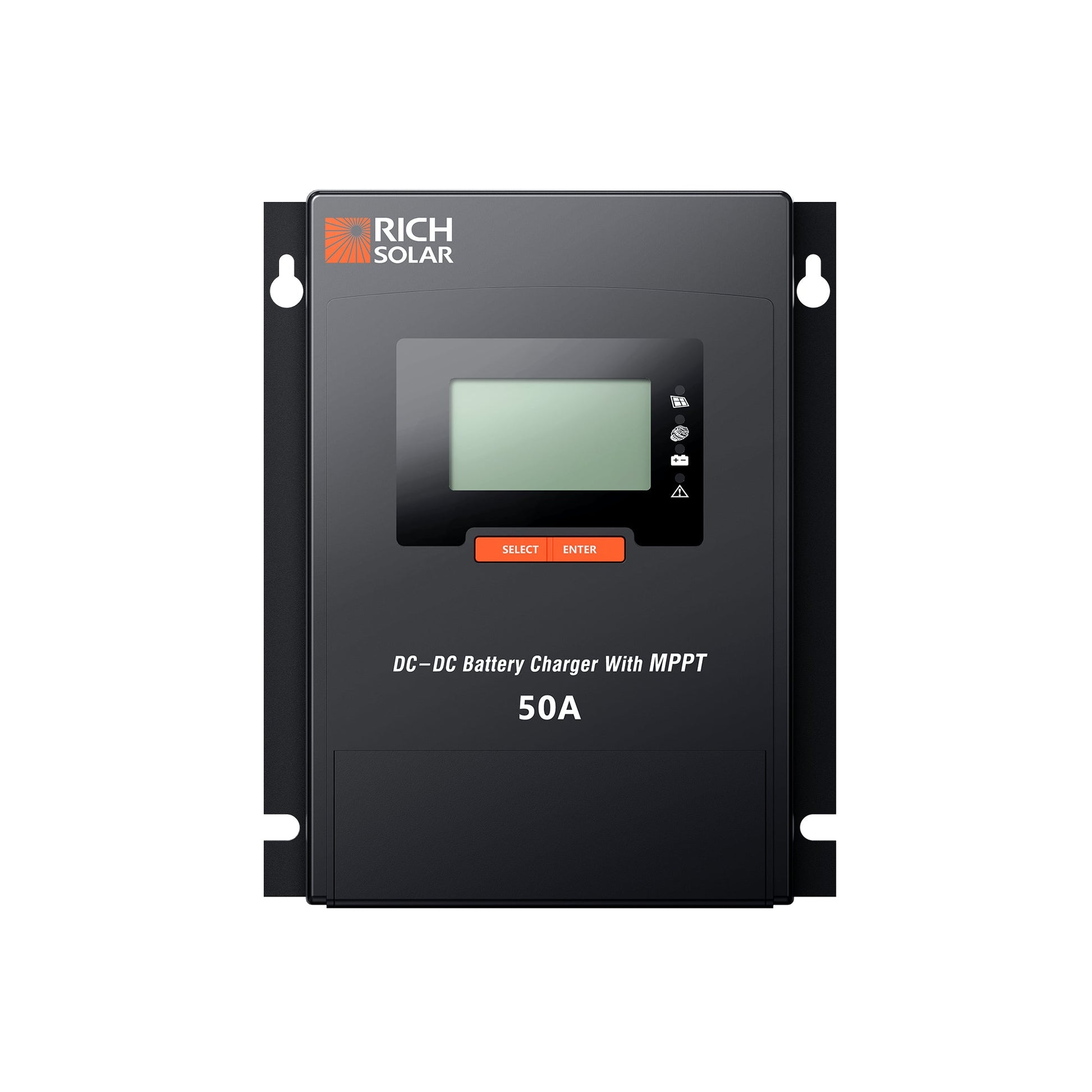

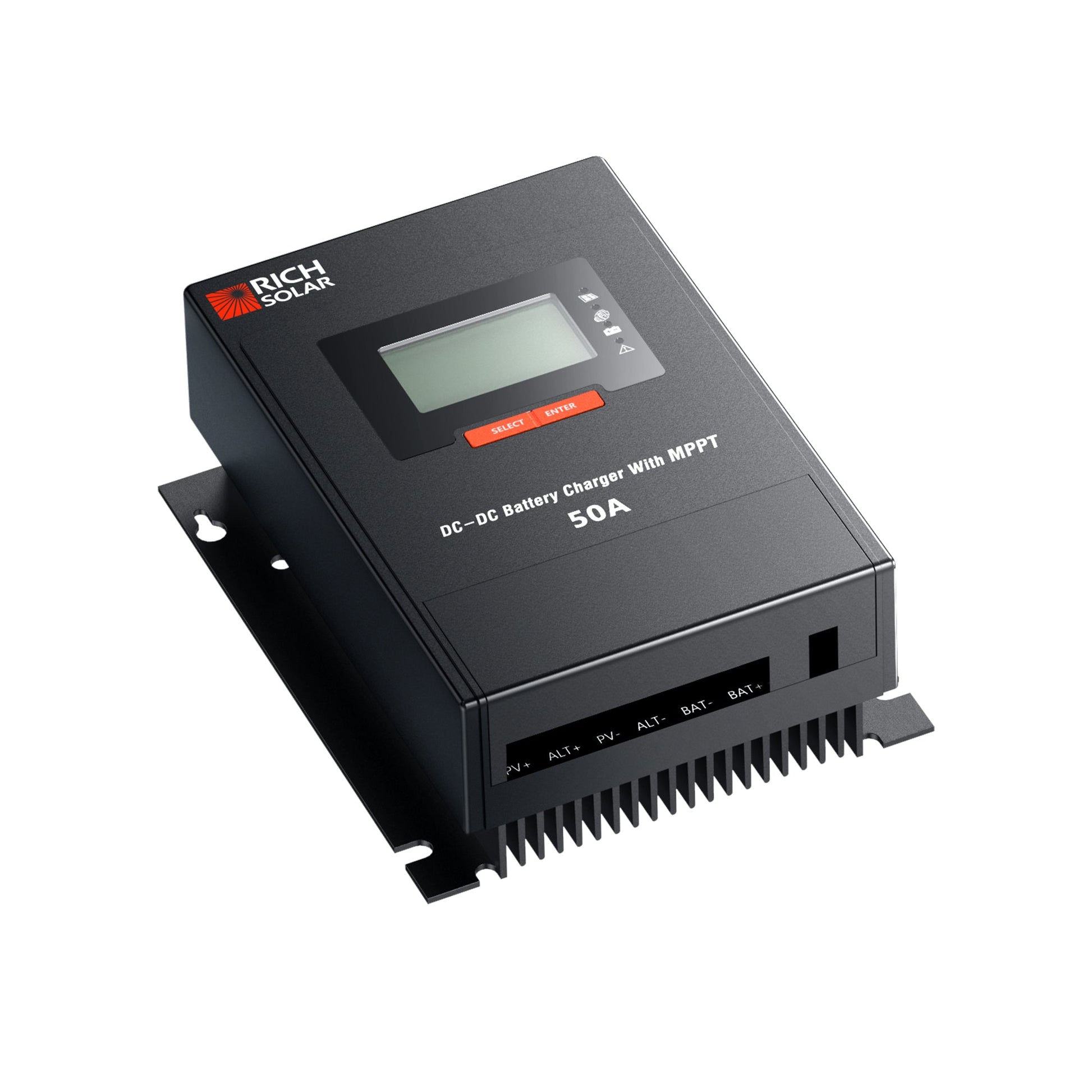

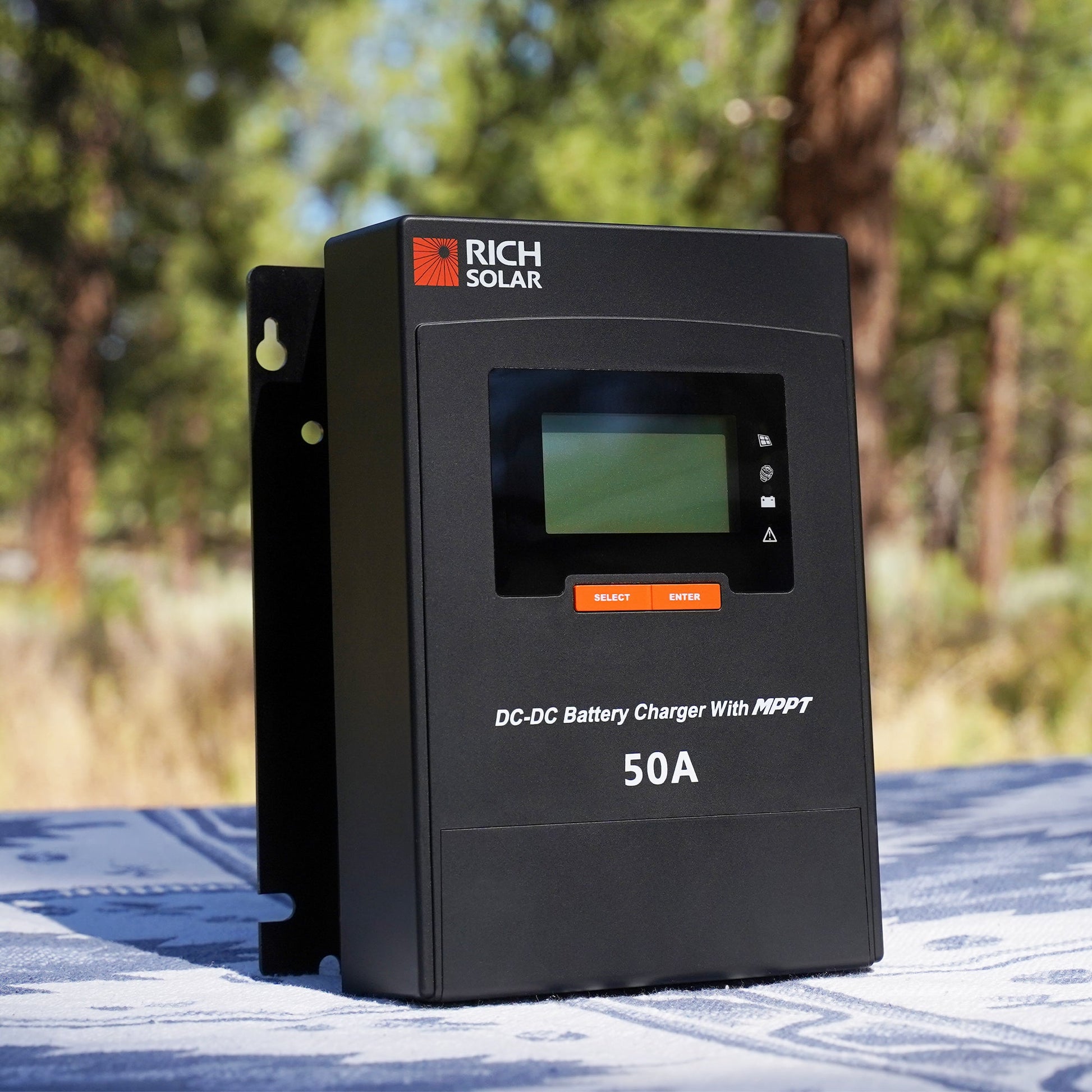

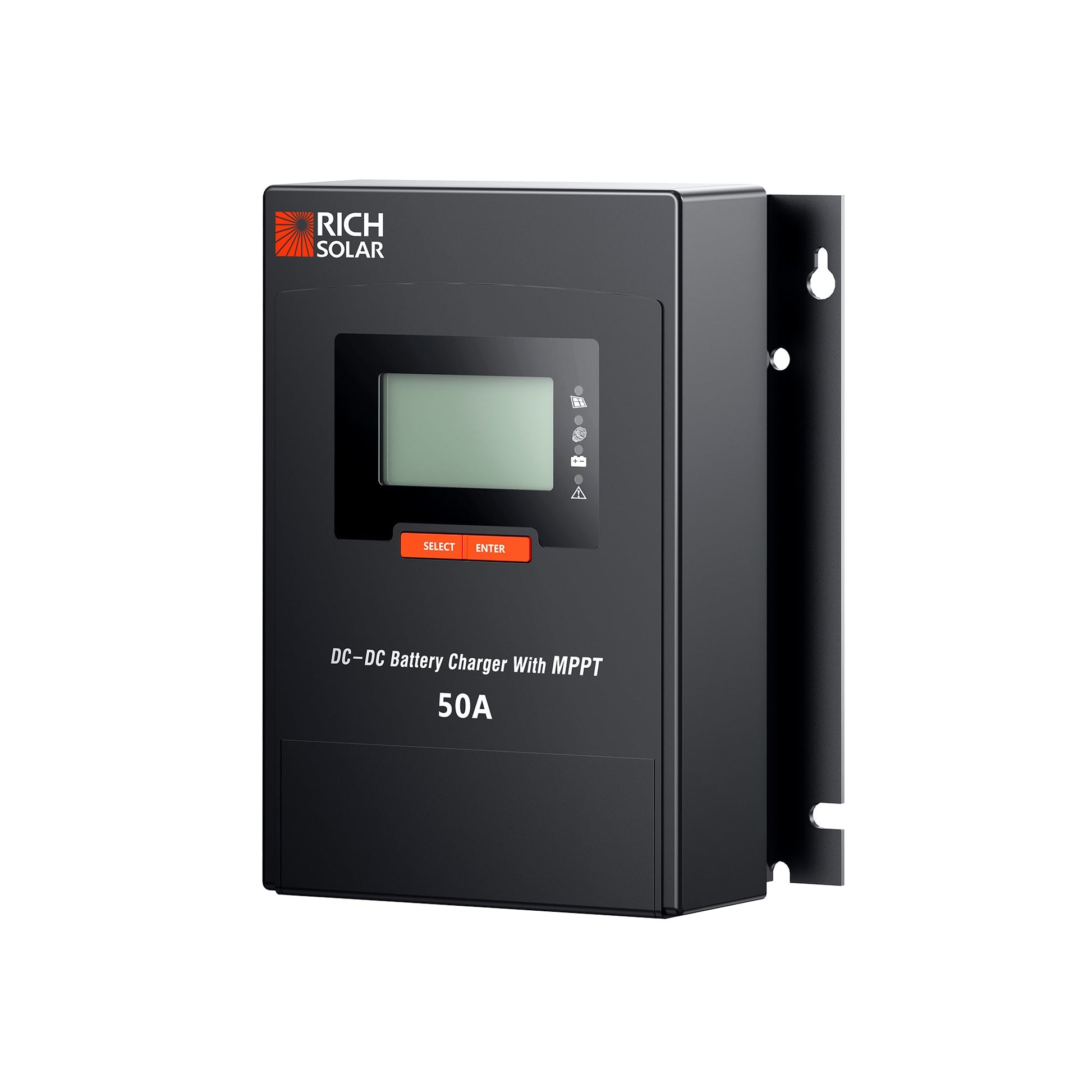

RICH SOLAR BRAVO 50 DC 50 Amp DC-DC Solar Charge Controller with MPPT
RICH SOLAR BRAVO 50 DC 50 Amp DC-DC Solar Charge Controller with MPPT
SKU: RS-MPPT50DC
- Regular price
- $249.99
- Regular price
- Sale price
- $249.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Alternator and solar charging in one 50A controller
Charge a 12V house bank from solar, the alternator—or both.
The RICH SOLAR BRAVO 50 DC combines a 50A DC-DC charger with MPPT solar regulation. It accepts 12V or 24V alternator input, supports up to 800W of recommended solar input and charges a 12V battery bank with selectable lead-acid or lithium profiles.
At a glance
The numbers that define this system
The current specifications list a 12V battery-system range of 9–16V. Do not use this controller to charge a 24V house bank based only on the product title.
System fit
Verify alternator capacity, ignition signal, solar voltage and battery profile.
A 50A charger creates meaningful cable and thermal demands. Confirm alternator reserve, conductor length and gauge, fusing at both ends, grounding, ventilation, ignition/control wiring and the battery manufacturer’s accepted charge current.
In the box
What the current product configuration includes
- RICH SOLAR BRAVO 50 DC controller (RS-MPPT50DC)
- Integrated alternator buck/boost DC-DC charging stage
- Integrated buck MPPT solar charging stage
- Built-in Bluetooth and wired communication interfaces described by RICH SOLAR
- Integrated protection functions for overcurrent, temperature, reverse polarity and overcharge
Power cables, fuses/breakers, ignition wire, solar panels, battery and mounting fasteners are not listed as included. Size every conductor and protective device for the installation.
Product confidence
Two-year MPPT-controller manufacturer coverage.
RICH SOLAR’s current limited warranty lists two-year coverage for MPPT controllers. The written prorated schedule, proof-of-purchase, installation requirements, exclusions and remedies control eligibility for RS-MPPT50DC.
Common questions
Before you build around this product
Can it charge a 24V house battery?
No. The current specification lists a 12V battery system. The 12V/24V rating refers to supported alternator input.
Can solar and alternator charge at the same time?
RICH SOLAR states that both inputs can operate simultaneously or independently, with selectable priority. Follow the current manual and total-current limits.
Does it work with smart alternators?
RICH SOLAR lists compatibility with traditional and smart 12V/24V alternators. Confirm ignition/control wiring and the exact vehicle charging system.
Is it waterproof?
The current specification lists IP32, not a fully waterproof rating. Install it in a protected, ventilated location.
Product Data
Technical Specifications
| Max. Solar Input | 55V DC / 50A / 800W (recommended) |
|---|---|
| MPPT Voltage Range | 17–36V DC |
| Alternator Input | 12/24V, 65A max |
| Battery System Voltage | 12V (9–16V range) |
| Rated Charging Current | 50A |
| Efficiency | MPPT: >99%; Conversion: up to 96% |
| Communication | Bluetooth, TTL, RS485, CAN (RV-C protocol) |
| Protections | Overcharge/current/temperature, reverse polarity |
| Operating Temperature | -35°C to +65°C (-31°F to +149°F) |
| Dimensions (W×D×H) | 221 × 175.8 × 92.4 mm (8.70 × 6.92 × 3.64 in) |
| Weight | 2.34 kg (5.16 lb) |
| IP Rating | IP32 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-MPPT50DC |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
