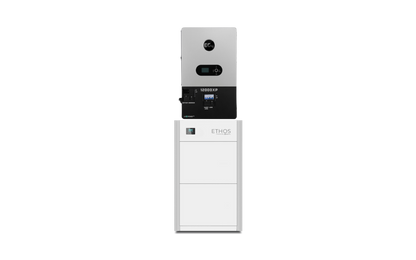

BigBattery ETHOS 30.72kWh Off-Grid Battery & Inverter Kit — 6 ETHOS Batteries + 1 EG4 12000XP V2 Off-Grid Inverter
BigBattery ETHOS 30.72kWh Off-Grid Battery & Inverter Kit — 6 ETHOS Batteries + 1 EG4 12000XP V2 Off-Grid Inverter
SKU: K0711
- Regular price
- $8,646.99
- Regular price
- $11,035.00
- Sale price
- $8,646.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Build a high-capacity off-grid system around serious solar and split-phase power.

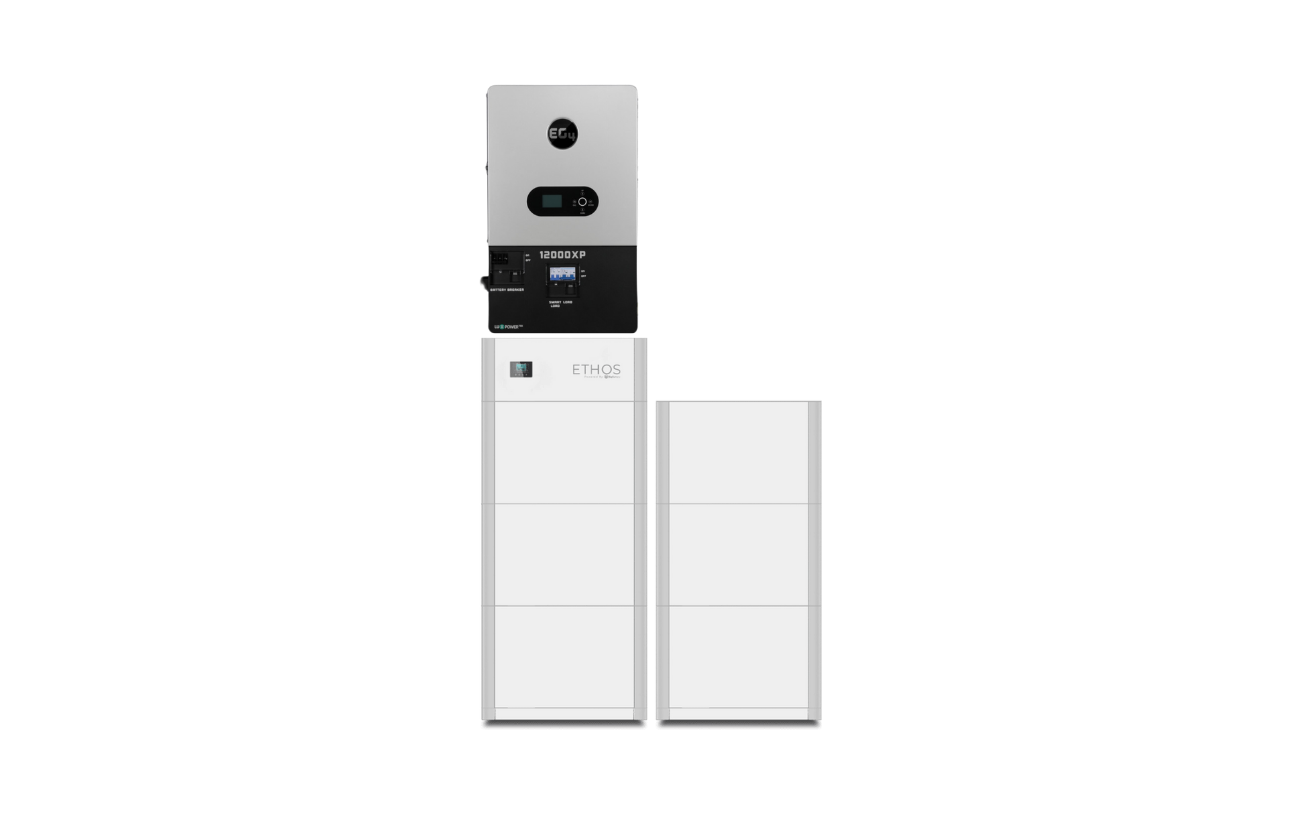

This off-grid kit combines 30.72kWh of nominal ETHOS storage with 1 EG4 12000XP V2 Off-Grid Inverter. It is suited to cabins, workshops and independent homes that need clearly matched battery quantity, 120/240V output and room to integrate solar or generator charging.
Why it earns a closer look
Useful capability, explained in buying language.
Storage sized to the project
30.72kWh of nominal capacity gives the installer a concrete starting point for load and runtime planning.
Battery-powered split-phase output
12kW from battery from the EG4 12000XP V2, with operating limits stated separately from battery capacity.
Modular storage that stays organized
ETHOS modules, a control box and the manufacturer-listed stack hardware create a purpose-built battery bank rather than a loose collection of parts.
Designed around off-grid priorities
Split-phase 120/240V output and solar or generator charging support independent properties without relying on grid sellback.
Where it fits
- Off-grid homes, cabins and remote properties
- Workshops and small commercial sites needing 120/240V split-phase power
- Solar-plus-generator systems designed around independent operation rather than grid export
System-fit guidance
The configured battery-bank continuous rating meets or exceeds the combined inverter battery-powered rating; final conductor, protection and surge design still requires engineering review. Off-grid with generator and AC bypass support; does not sell power back to the grid

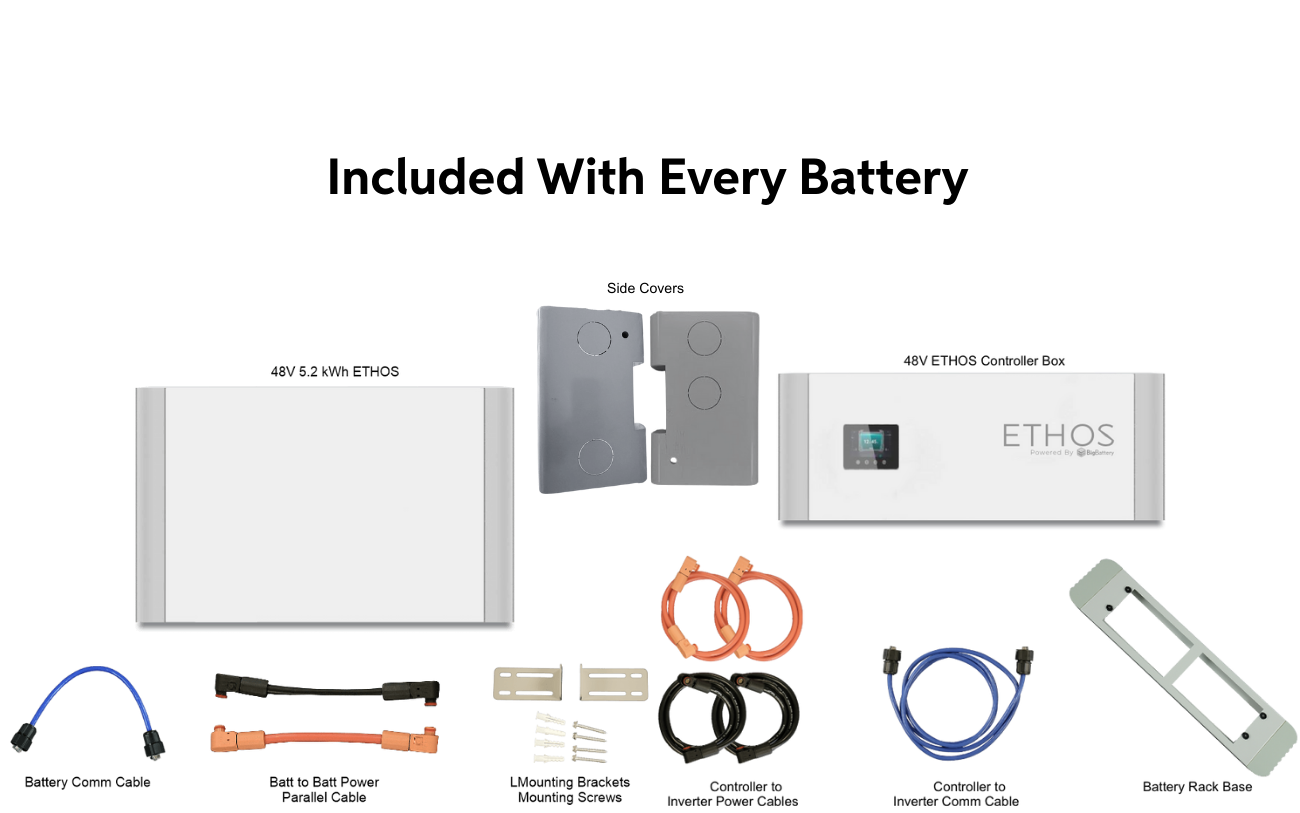

What’s included
- 6 × BigBattery ETHOS Batteries
- 1 × EG4 12000XP V2 Off-Grid Inverter
- 1 × ETHOS control box
- 2 × ETHOS bases
- Manufacturer-listed ETHOS communications, parallel and final positive/negative cable set for this stack size
- Manufacturer-listed second-stack connection cables
Typically still required
- Solar panels and array racking
- Permitting, utility interconnection and installation labor
- Site-specific conductors, conduit, disconnects, overcurrent protection and grounding unless itemized in a written order confirmation
Frequently asked questions
What exactly comes in this kit?
Are solar panels included?
How long will 30.72kWh run my loads?
Can this off-grid kit sell power back to the grid?
Is the complete kit UL 9540 certified?
What warranty applies?
Know what arrives—and what the installation still needs.
Send Torven Power your loads, existing equipment and project goals for pre-purchase fit guidance.
Specifications, images and package contents can change by hardware revision. The delivered model label, current manual, written warranty and permitted design control.
Product Data
Technical Specifications
System Summary
| Product SKU | K0711 |
|---|---|
| System type | Off-grid battery and inverter kit |
| Nominal battery voltage class | 51.2V / 48V-class |
| Total nominal storage | 30.72kWh |
| Battery configuration | 6 × BigBattery ETHOS Batteries |
| Inverter configuration | 1 × EG4 12000XP V2 Off-Grid Inverter |
| Configured battery-bank continuous rating | 12.8kW |
| Combined inverter battery-powered rating | 12kW |
| Power-sizing note | The configured battery-bank continuous rating meets or exceeds the combined inverter battery-powered rating; final conductor, protection and surge design still requires engineering review. |
| AC topology | 120/240V split phase |
| Operating mode | Off-grid with generator and AC bypass support; does not sell power back to the grid |
| Solar panels included | No |
| Certification scope | No blanket system-level UL 9540 claim is made for this off-grid bundle; component listings and testing vary by exact model. |
Battery System Specifications
| Battery family | BigBattery ETHOS LiFePO4 modular battery system |
|---|---|
| Battery modules | 6 × 51.2V 100Ah ETHOS modules |
| Capacity per module | 5.12kWh |
| Total nominal capacity | 30.72kWh |
| Total nominal amp-hours | 600Ah |
| Continuous discharge rating | 250A / 12.8kW at the configured bank size |
| Communications | CAN and RS485 through the ETHOS control box |
| Protection | Integrated battery management and fire-suppression features |
| Enclosure | IP65 / NEMA 4X |
| Charge temperature | 32°F to 113°F |
| Discharge temperature | -4°F to 140°F |
| Approximate configured battery-system weight | 755 lb |
| Battery warranty | 12-year limited warranty; current written terms control |
Inverter Specifications

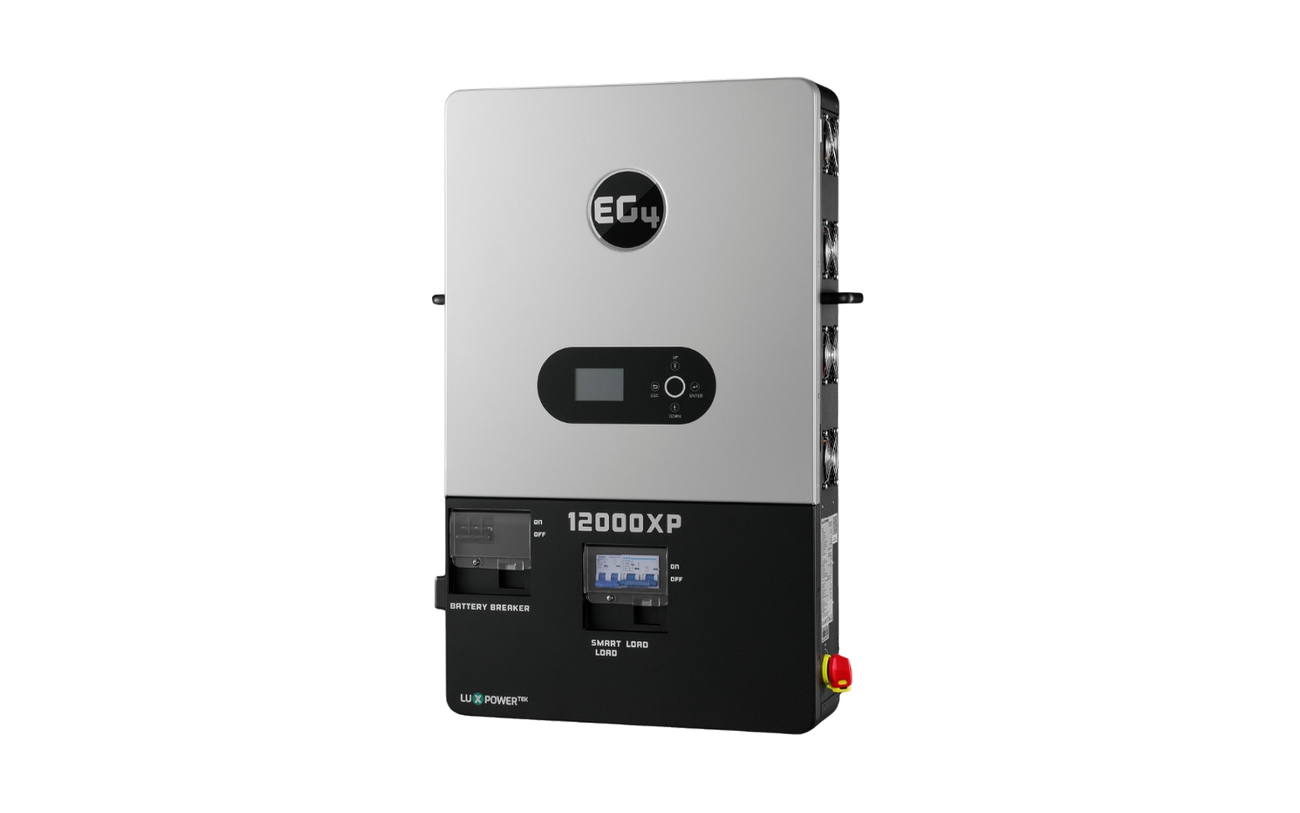

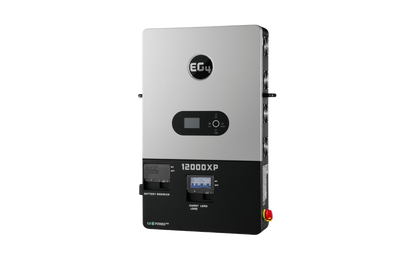

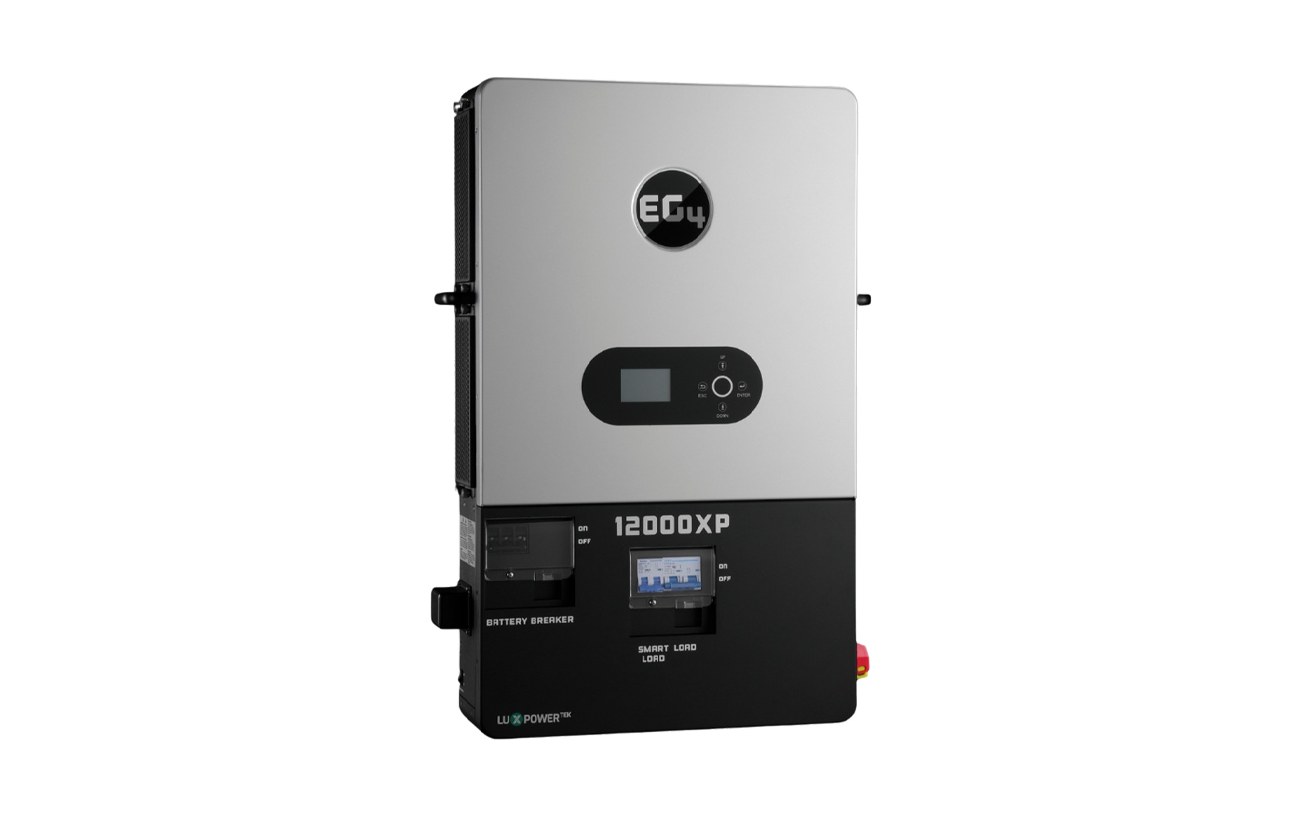

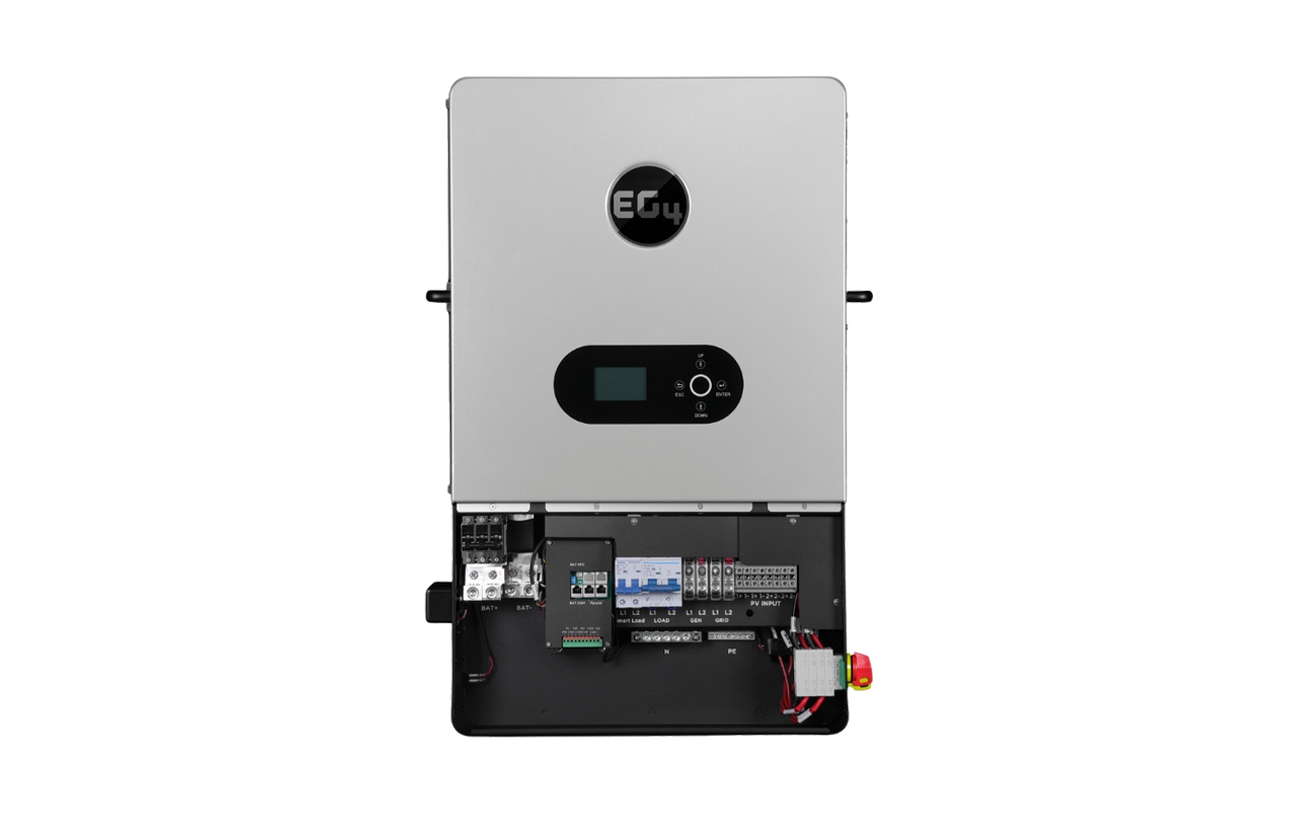

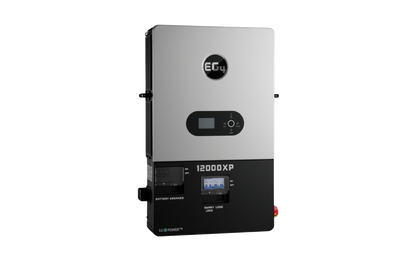

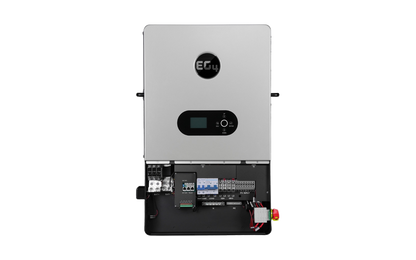

| Inverter family | EG4 12000XP / current V2-family off-grid inverter |
|---|---|
| Exact shipped MPN | Confirmation required: IV-12000-XP-IN-01 versus IV-15000-XP-IN-01 |
| Battery-powered AC output | 12kW |
| PV-assisted AC output | Do not publish a precise value until the shipped MPN is confirmed |
| AC topology | 120/240V split phase |
| Usable / maximum PV array | 24kW usable / 28kW maximum |
| MPPT channels / input current | 2 × 35A |
| AC bypass | 100A |
| Generator input | 63A |
| Grid export | No sellback |
| Weight | 104.7 lb |
| Inverter warranty | 5-year limited warranty; current written terms control |
Included Components
| Verified item 1 | 6 × BigBattery ETHOS Batteries |
|---|---|
| Verified item 2 | 1 × EG4 12000XP V2 Off-Grid Inverter |
| Verified item 3 | 1 × ETHOS control box |
| Verified item 4 | 2 × ETHOS bases |
| Verified item 5 | Manufacturer-listed ETHOS communications, parallel and final positive/negative cable set for this stack size |
| Verified item 6 | Manufacturer-listed second-stack connection cables |
| Not included 1 | Solar panels and array racking |
| Not included 2 | Permitting, utility interconnection and installation labor |
| Not included 3 | Site-specific conductors, conduit, disconnects, overcurrent protection and grounding unless itemized in a written order confirmation |
| Confirmation needed 1 | ETHOS grounding cable is not listed as included and must be planned separately. |
Verify the delivered model and hardware revision against the current manual and installation requirements.
