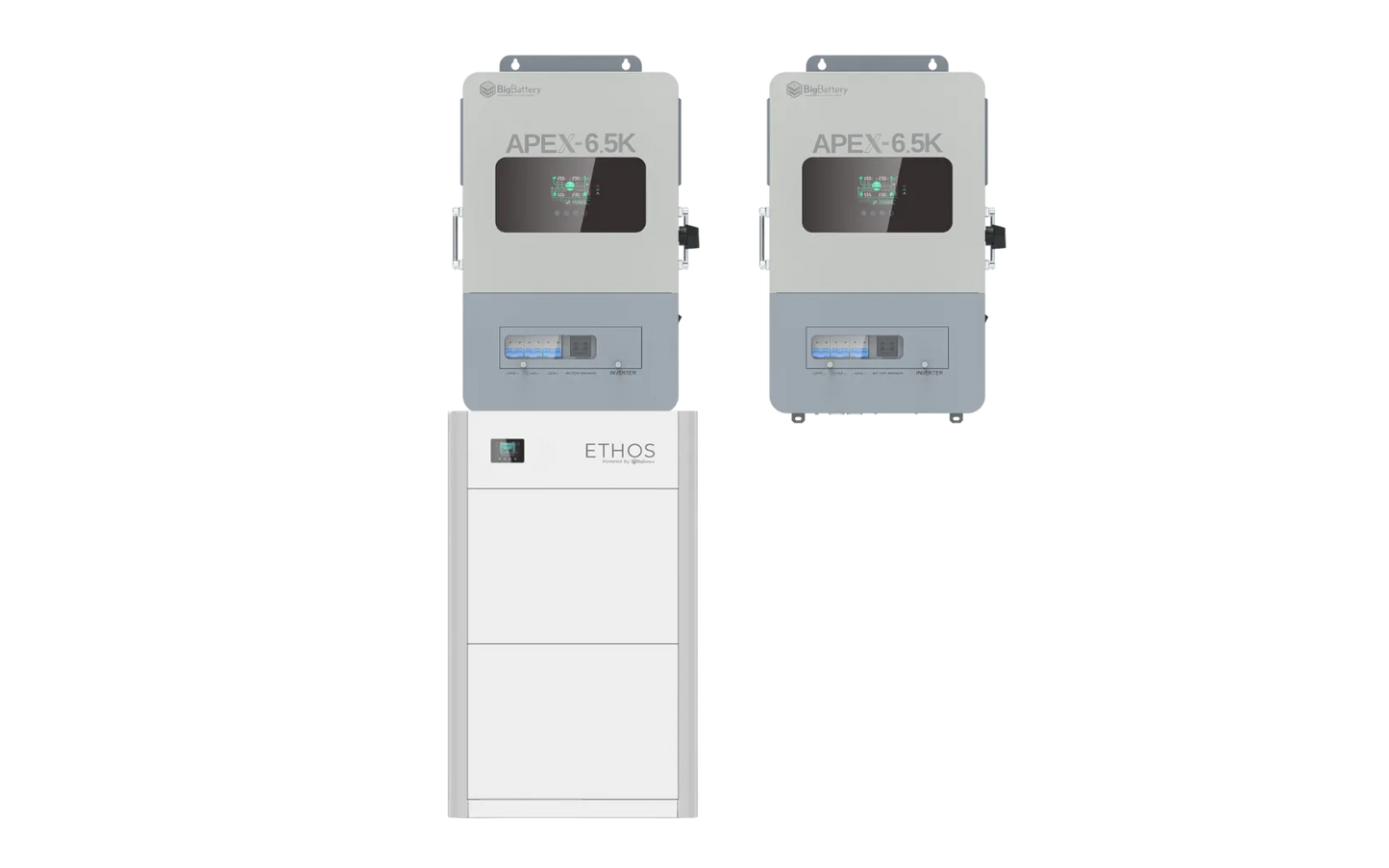

• BigBattery ETHOS 10.24kWh + APEX-6.5K Kit — complete kit product view

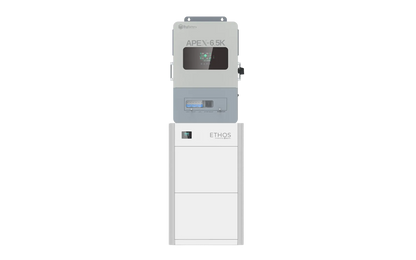

  • BigBattery ETHOS 10.24kWh Off-Grid Battery & Inverter Kit — 2 ETHOS Batteries + 2 APEX-6.5K Split-Phase Inverters — product detail view
  • BigBattery ETHOS 10.24kWh Off-Grid Battery & Inverter Kit — 2 ETHOS Batteries + 2 APEX-6.5K Split-Phase Inverters — product detail view

BigBattery

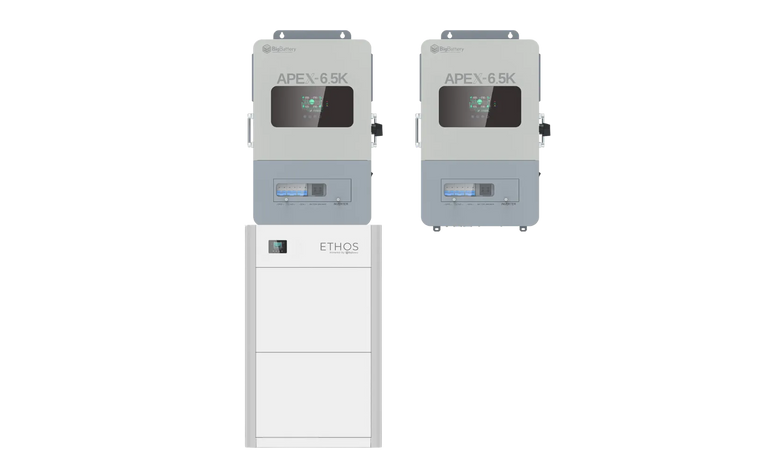

BigBattery ETHOS 10.24kWh Off-Grid Battery & Inverter Kit — 2 ETHOS Batteries + 2 APEX-6.5K Split-Phase Inverters

BigBattery ETHOS 10.24kWh Off-Grid Battery & Inverter Kit — 2 ETHOS Batteries + 2 APEX-6.5K Split-Phase Inverters

SKU: K0307

$5,385.00
$5,385.00
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Independent Off-Grid Power

Reliable split-phase power for a property that cannot depend on the grid.

This off-grid kit combines 10.24kWh of nominal ETHOS storage with 2 BigBattery APEX-6.5K Split-Phase Off-Grid Inverters. It is suited to cabins, workshops and independent homes that need clearly matched battery quantity, 120/240V output and room to integrate solar or generator charging.

10.24kWh
Nominal battery storage
13kW combined
Combined inverter battery-powered rating
20kW combined PV input
Solar input planning
12 years
Battery warranty term

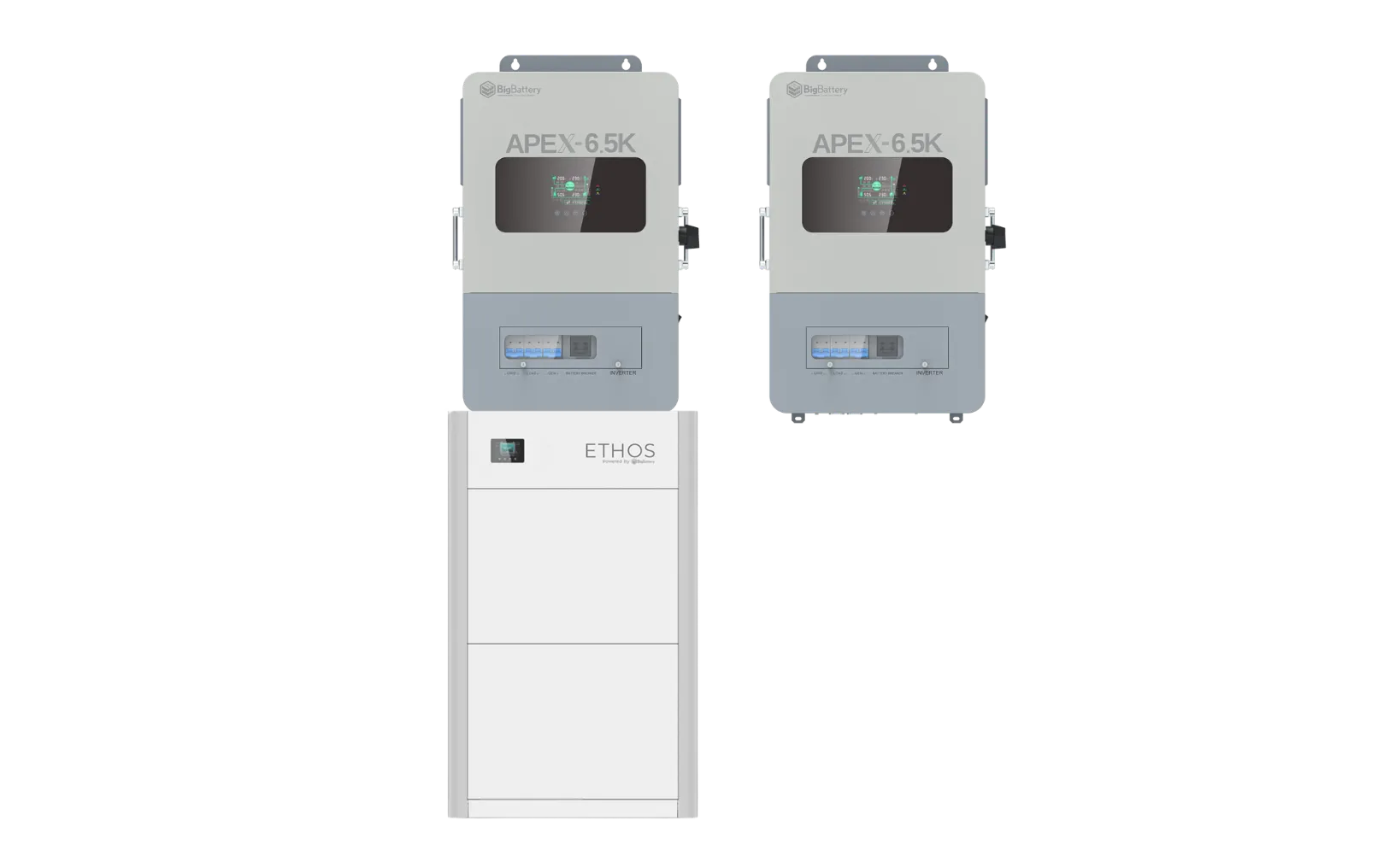

BigBattery ETHOS 10.24kWh + APEX-6.5K Kit — complete kit product view
BigBattery ETHOS 10.24kWh + APEX-6.5K Kit — complete kit product view

Why it earns a closer look

Useful capability, explained in buying language.

Storage sized to the project

10.24kWh of nominal capacity gives the installer a concrete starting point for load and runtime planning.

Combined inverter capacity

2 BigBattery APEX-6.5K units provide a 13kW combined battery-powered inverter rating; the configured battery bank remains limited to 10.24kW continuous.

Modular storage that stays organized

ETHOS modules, a control box and the manufacturer-listed stack hardware create a purpose-built battery bank rather than a loose collection of parts.

Designed around off-grid priorities

Split-phase 120/240V output and solar or generator charging support independent properties without relying on grid sellback.

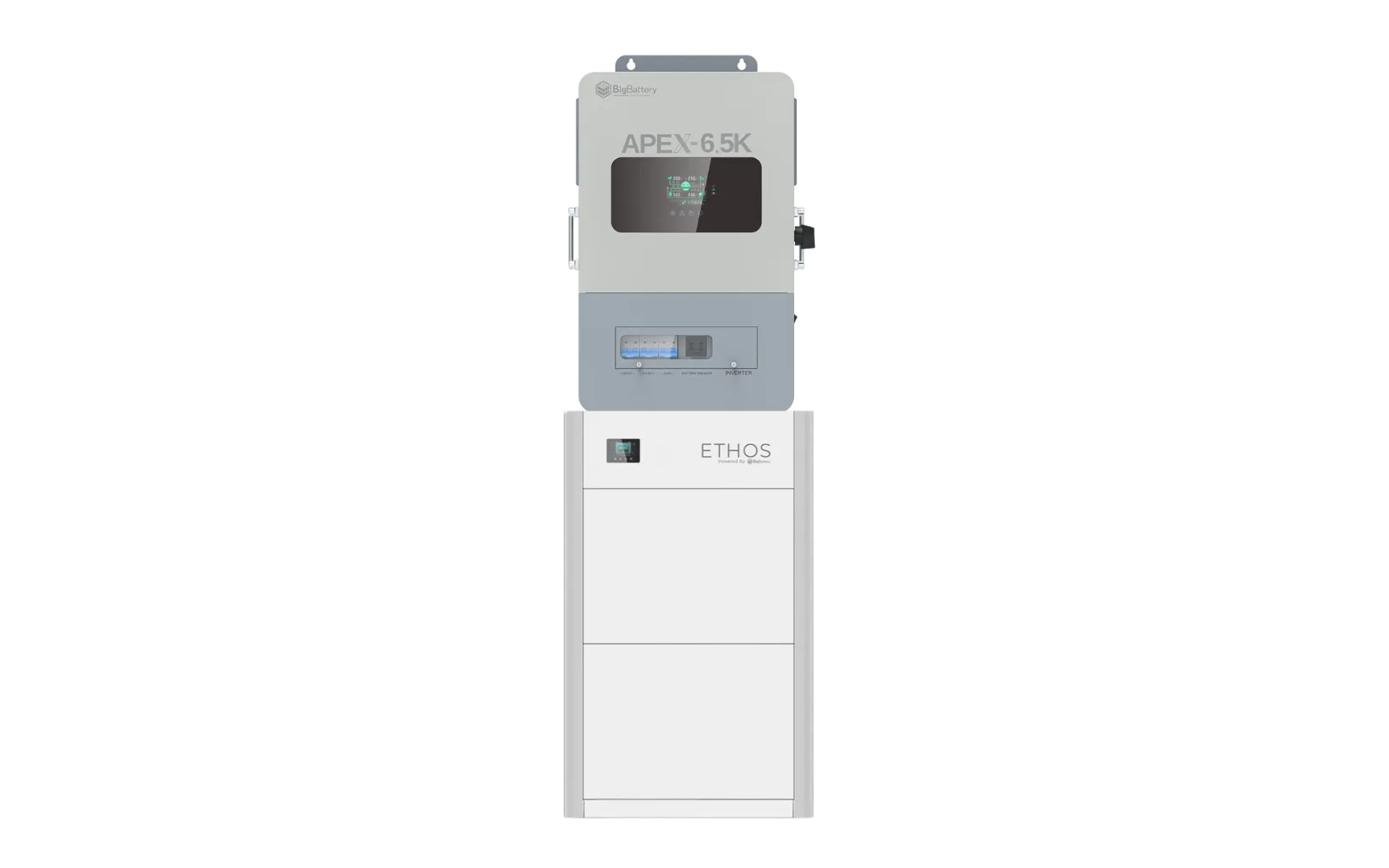

BigBattery ETHOS 10.24kWh Off-Grid Battery & Inverter Kit — 2 ETHOS Batteries + 2 APEX-6.5K Split-Phase Inverters — product detail view

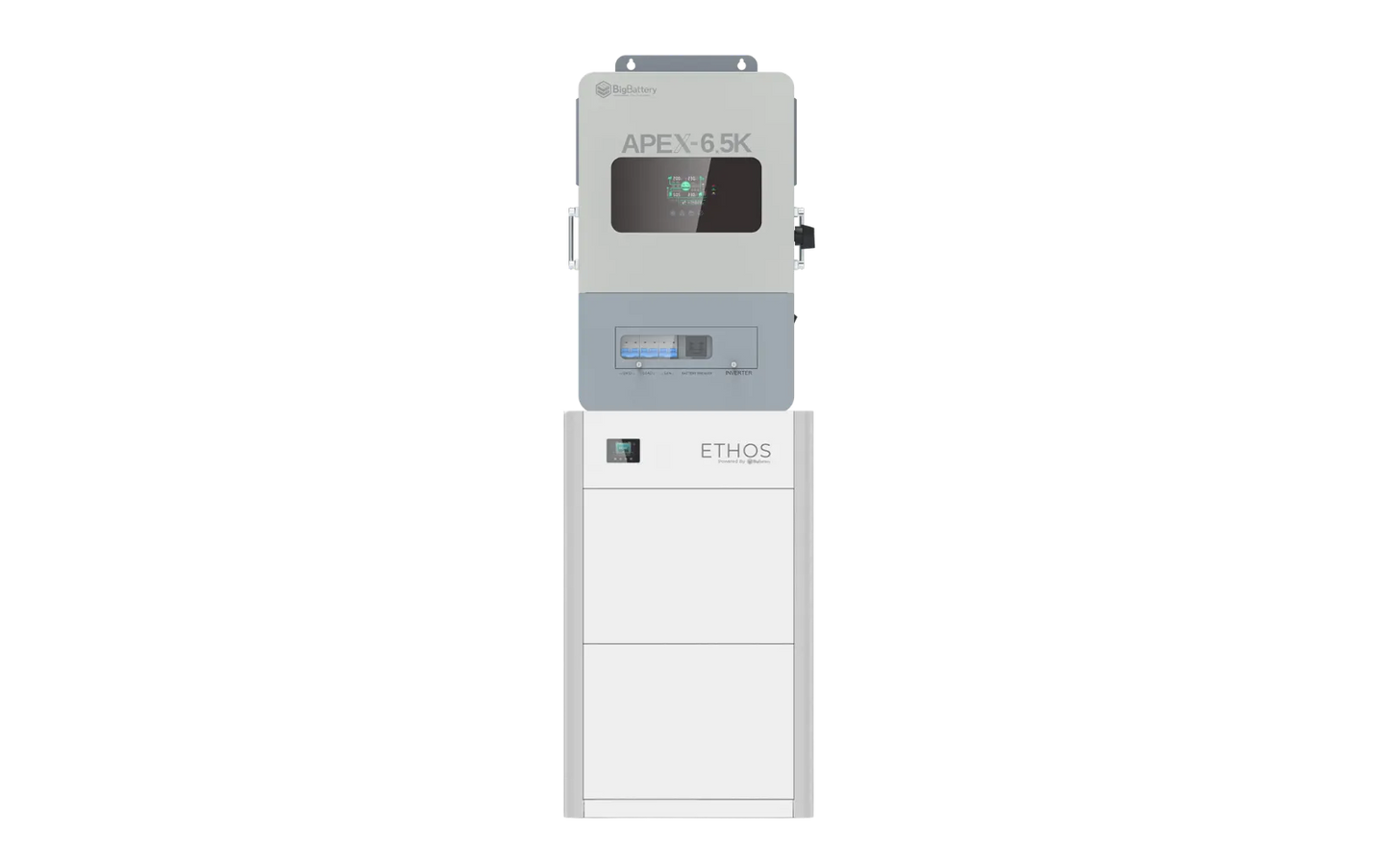

BigBattery ETHOS 10.24kWh Off-Grid Battery & Inverter Kit — 2 ETHOS Batteries + 2 APEX-6.5K Split-Phase Inverters — product detail view

Where it fits

  • Off-grid homes, cabins and remote properties
  • Workshops and small commercial sites needing 120/240V split-phase power
  • Solar-plus-generator systems designed around independent operation rather than grid export

System-fit guidance

The configured battery bank is the lower continuous-output limit at 10.24kW; do not assume the full 13kW inverter rating is available from battery alone. Off-grid; no grid-export claim is made

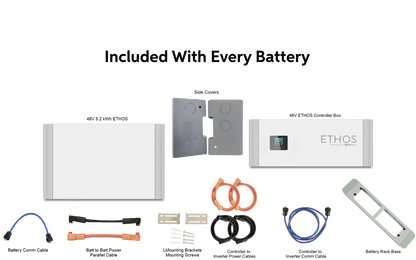

What’s included

  • 2 × BigBattery ETHOS Batteries
  • 2 × BigBattery APEX-6.5K Split-Phase Off-Grid Inverters
  • 1 × ETHOS control box
  • 1 × ETHOS base
  • Manufacturer-listed ETHOS communications, parallel and final positive/negative cable set for this stack size

Typically still required

  • Solar panels and array racking
  • Permitting, utility interconnection and installation labor
  • Site-specific conductors, conduit, disconnects, overcurrent protection and grounding unless itemized in a written order confirmation

Frequently asked questions

What exactly comes in this kit?
The currently verified core package is 2 ETHOS Batteries and 2 BigBattery APEX-6.5K Split-Phase Off-Grid Inverters. ETHOS grounding cable is not listed as included and must be planned separately. Confirm the final written packing list for SKU K0307 before fulfillment.
Are solar panels included?
No. Solar panels, array racking and site-specific balance-of-system materials are not part of the verified package. They must be selected for the roof or ground array, climate, code and inverter input limits.
How long will 10.24kWh run my loads?
Runtime depends on the loads, reserve setting, temperature and conversion losses. As a simple planning example, 10.24kWh of nominal energy represents about 10.24 hours at a constant 1kW load before losses and reserve; real usable runtime will be lower.
Can this off-grid kit sell power back to the grid?
BigBattery APEX-6.5K is presented here as an off-grid inverter. This kit is not merchandised for grid sellback; use its AC input, bypass and generator functions only within the current manual and permitted design.
Is the complete kit UL 9540 certified?
No blanket UL 9540 system claim is made for this off-grid bundle. Review the current listings and test reports for each component with the installer and authority having jurisdiction.
What warranty applies?
BigBattery lists a 12-year limited battery warranty. For the BigBattery APEX-6.5K, the current manufacturer materials state: 5-year limited warranty; current written terms control. Eligibility, registration, operating conditions and remedy are governed by the current written manufacturer terms.

Know what arrives—and what the installation still needs.

Send Torven Power your loads, existing equipment and project goals for pre-purchase fit guidance.

Specifications, images and package contents can change by hardware revision. The delivered model label, current manual, written warranty and permitted design control.
