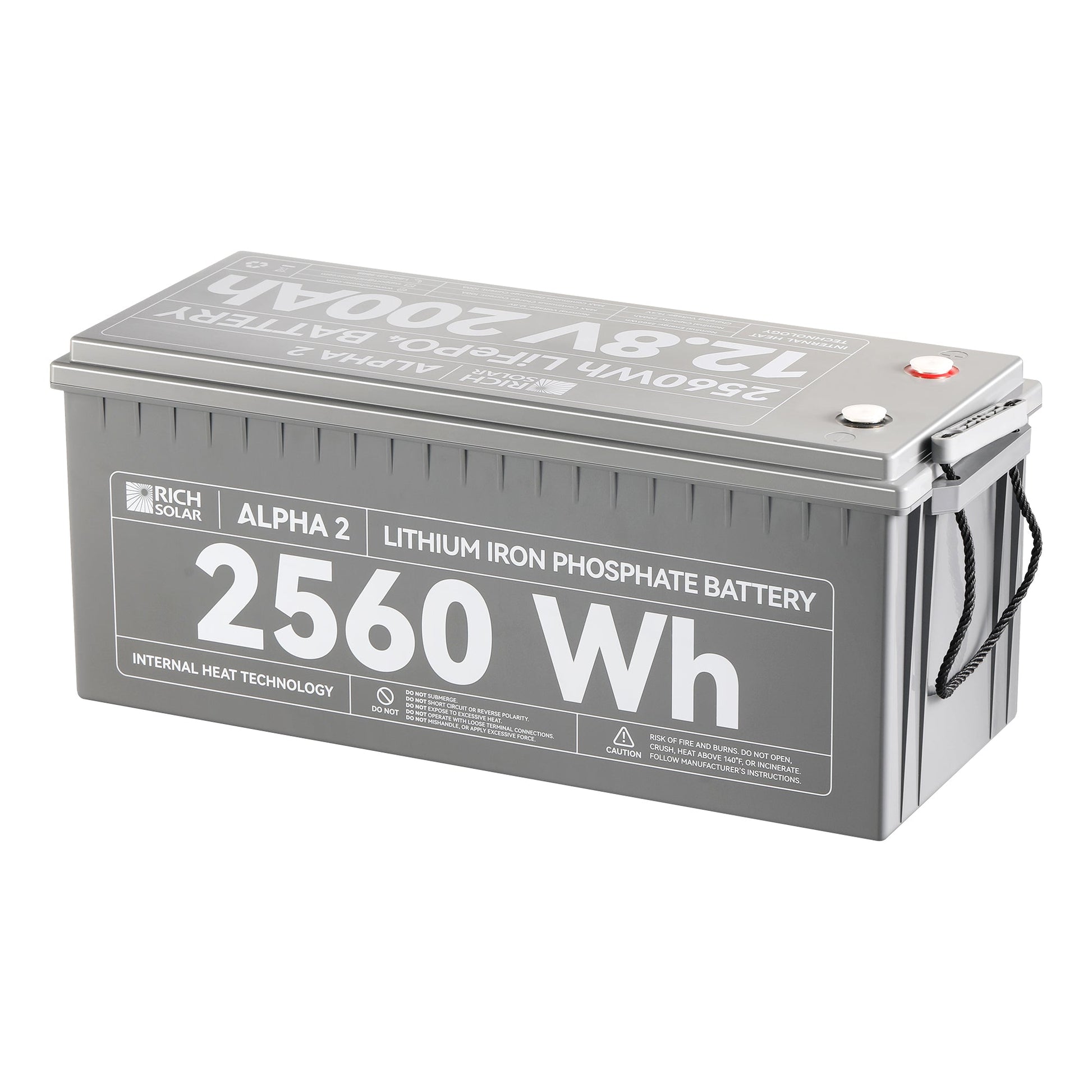

RICH SOLAR ALPHA 2 12V 200Ah LiFePO4 Battery
RICH SOLAR ALPHA 2 12V 200Ah LiFePO4 Battery
SKU: RS-B122S
- Regular price
- $999.99
- Regular price
- Sale price
- $999.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Twice the energy of a 100Ah battery in one 12V case
Store 2.56kWh with Bluetooth monitoring and cold-weather charging support.
The RICH SOLAR ALPHA 2 is a 12.8V, 200Ah LiFePO4 battery for higher-capacity RV, trailer, boat, cabin and backup banks. A 100A BMS supports measured 12V loads, while internal heat and app monitoring make the battery easier to manage across changing seasons.
At a glance
More 12V runtime without building a multi-battery bank
RICH SOLAR documents up to four identical ALPHA 2 batteries in parallel and does not support series connection. Choose a native 24V or 48V battery for higher-voltage systems.
System fit
Size the inverter from the 100A battery limit.
At 12.8V, a 100A continuous battery limit is roughly 1,280W of DC power before voltage drop and inverter losses. Large 12V inverters may require multiple properly paralleled batteries or a different battery architecture.
In the box
What comes with the ALPHA 2
- 1 × ALPHA 2 12.8V 200Ah battery (RS-B122S)
- 2 × M8 × 12 mm terminal screws
- 2 × M8 × 16 mm terminal screws
- 2 × M8 × 20 mm terminal screws
- 1 × ALPHA 2 user manual
Charger, inverter, battery cables, disconnects, fuses or breakers, busbars and mounting hardware are not listed as included. Select each component for the 12V voltage, 100A current limit and installation environment.
Product confidence
Five-year ALPHA Series warranty coverage
RICH SOLAR lists five-year limited, prorated coverage for the ALPHA Series. Eligibility and remedies follow the current written policy, including installation, operating-condition and claim-documentation requirements.
Common questions
ALPHA 2 setup questions
Can I connect two ALPHA 2 batteries in series for 24V?
No. Series connection is not supported. Use a native 24V battery for a 24V system.
How many ALPHA 2 batteries can be connected in parallel?
RICH SOLAR documents up to four identical batteries in parallel. Use matching models and ages, equal-length conductors, closely matched pack voltage and correctly sized protection.
How does the internal heater work?
The 100W heater activates with charging current when battery temperature is at or below 41°F and stops when charging is removed or battery temperature reaches at least 50°F. It does not replace the full temperature rules in the manual.
How much AC power can one battery support?
The battery is limited to 100A continuous discharge. Practical AC output depends on battery voltage, cable loss and inverter efficiency, so size the inverter and loads from the current limit—not the 2.56kWh energy rating alone.
Verified Manufacturer Data
Technical Specifications
Identity and electrical ratings
| Manufacturer / model | RICH SOLAR ALPHA 2 |
|---|---|
| SKU | RS-B122S |
| Chemistry | LiFePO4 / LFP |
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Minimum capacity | 200Ah |
| Nominal energy | 2560Wh |
| Charge voltage | 14.4V |
| Discharge cutoff voltage | 11.2V |
| Standard charge current | 50A |
| Maximum charge current | 100A |
| Standard discharge current | 50A |
| Maximum continuous discharge current | 100A |
| Maximum discharge current | 100A |
Temperature and storage
| Charging temperature | 0 to 55 (charge-current derating applies by temperature) °C |
|---|---|
| Discharging temperature | -20 to 60 °C |
| Storage under one month | -30 to 55 at ≤90% RH °C |
| Storage over three months | -10 to 45 at ≤90% RH °C |
| Recommended long-term storage | -10 to 35 at ≤85% RH °C |
Physical, durability, and features

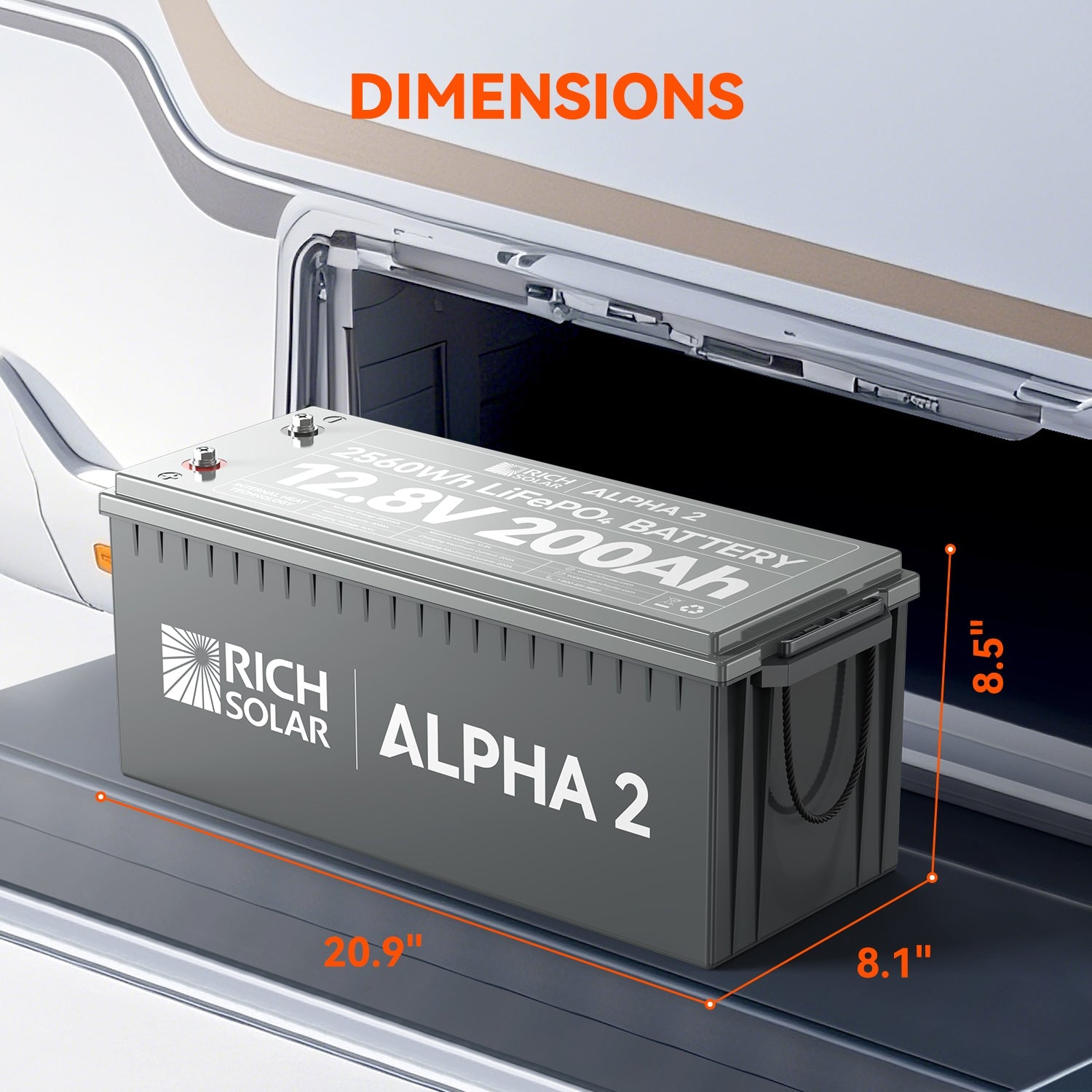

| Dimensions (L × W × H) | 20.9 × 8.1 × 8.5 |
|---|---|
| Weight | 48.5 lb |
| Enclosure | UL94 V-0 flame-retardant plastic shell |
| Ingress protection | IP65 |

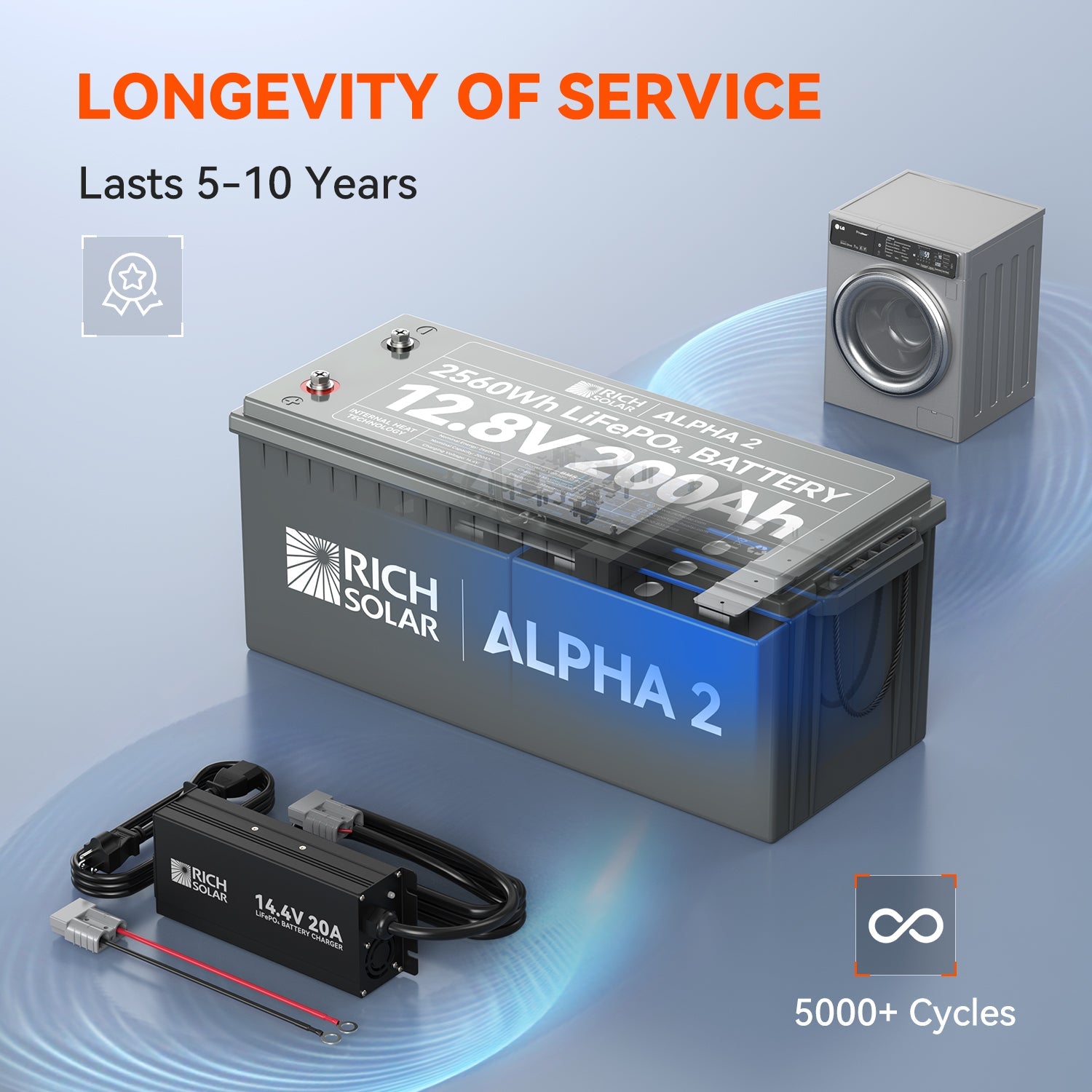

| Cycle life | ≥5,000 cycles at 25°C ±2°C |
| Monthly self-discharge | ≤5% |
| Initial internal resistance | ≤50 mΩ |

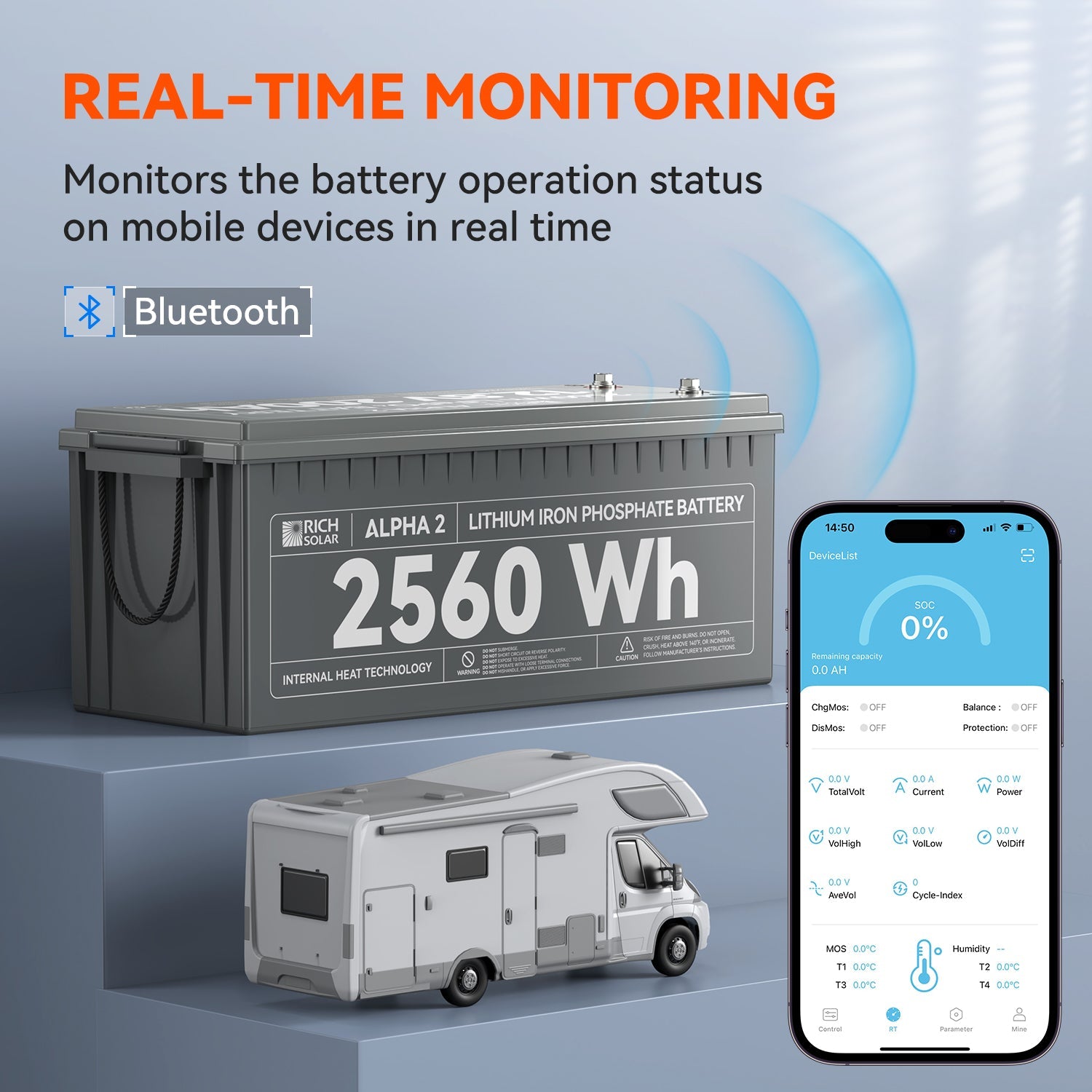

| Communication / monitoring | Built-in Bluetooth for real-time app monitoring |
| Internal heating | 100W; activates with charge current at ≤5°C / 41°F and stops when the charger is disconnected or battery temperature reaches ≥10°C / 50°F |
Bank configuration and warranty
| Series connection | Not supported/documented; do not market series use |
|---|---|
| Parallel connection | Maximum 4 identical batteries in parallel |
| Configuration notes | Official manuals require matching model/specification, equal-length cables and closely matched pack voltage before paralleling. |
| Warranty tier | ALPHA Series |
| Warranty term | 5 years |
| Warranty summary | Limited prorated warranty under the current 5-year schedule. |
Official product resources
| Specification Sheet | Download the official specification PDF |
|---|---|
| Owner’s Manual 2 | Download the official manual PDF |
| Current warranty policy | Review RICH SOLAR’s current warranty terms |
Review the current manufacturer manual for your exact model before installation or use.
