Inverter, dual MPPT charging and battery in one cabinet
Simplify a 48V-class off-grid system with 6.5kW output and 5.12kWh of storage.

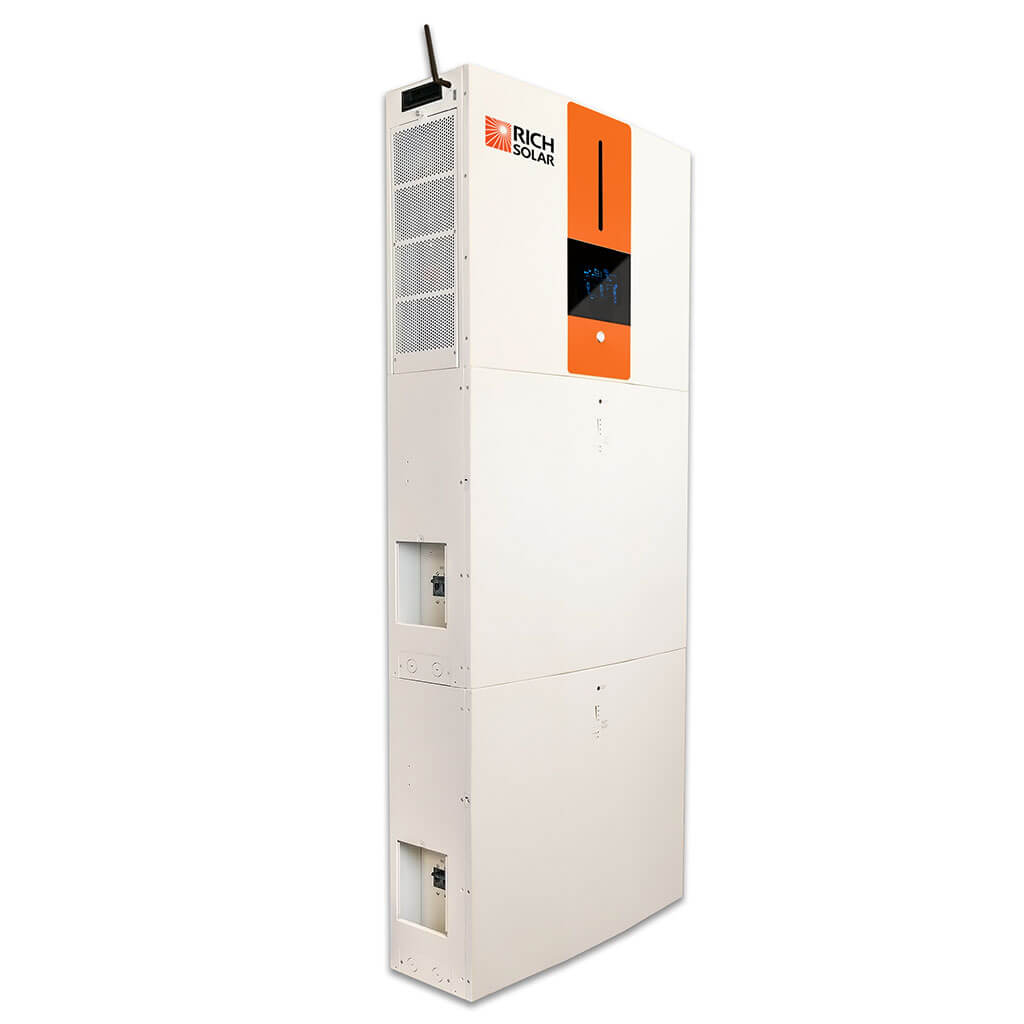

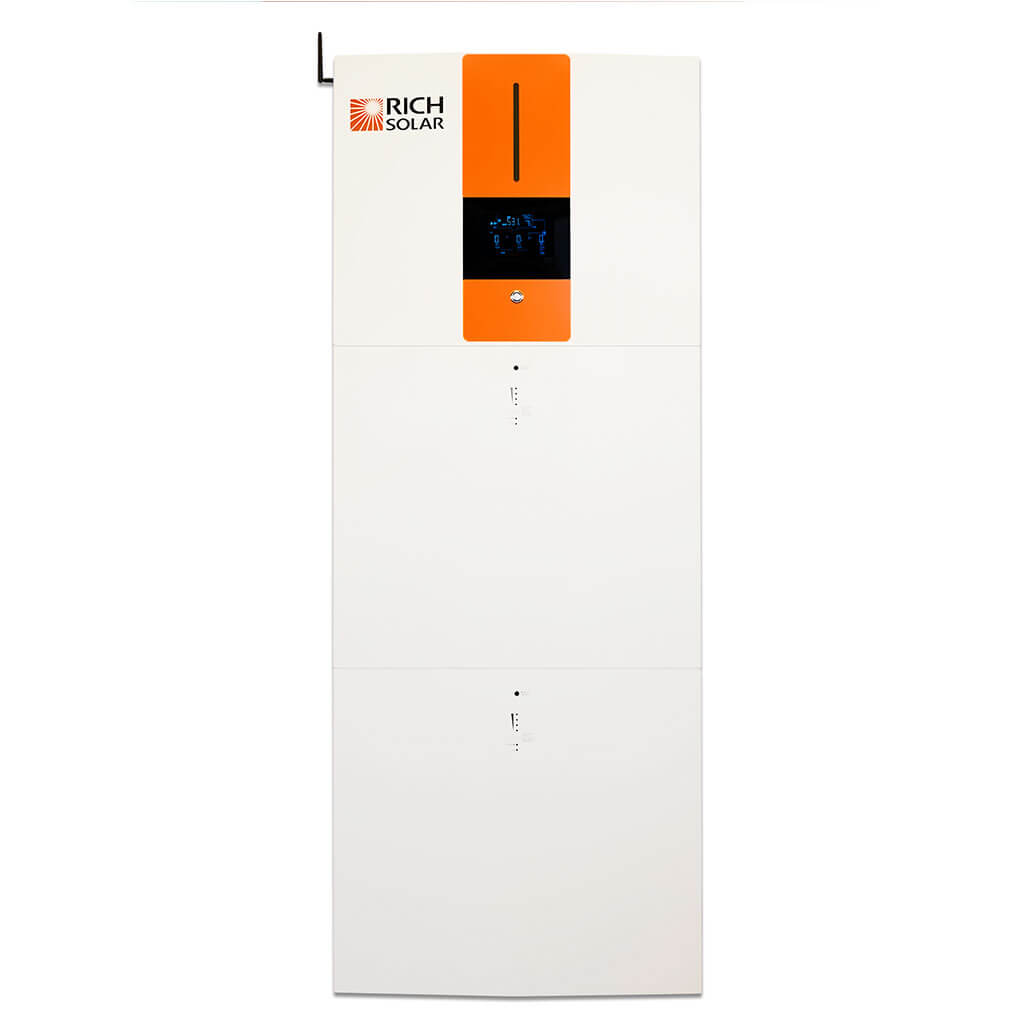

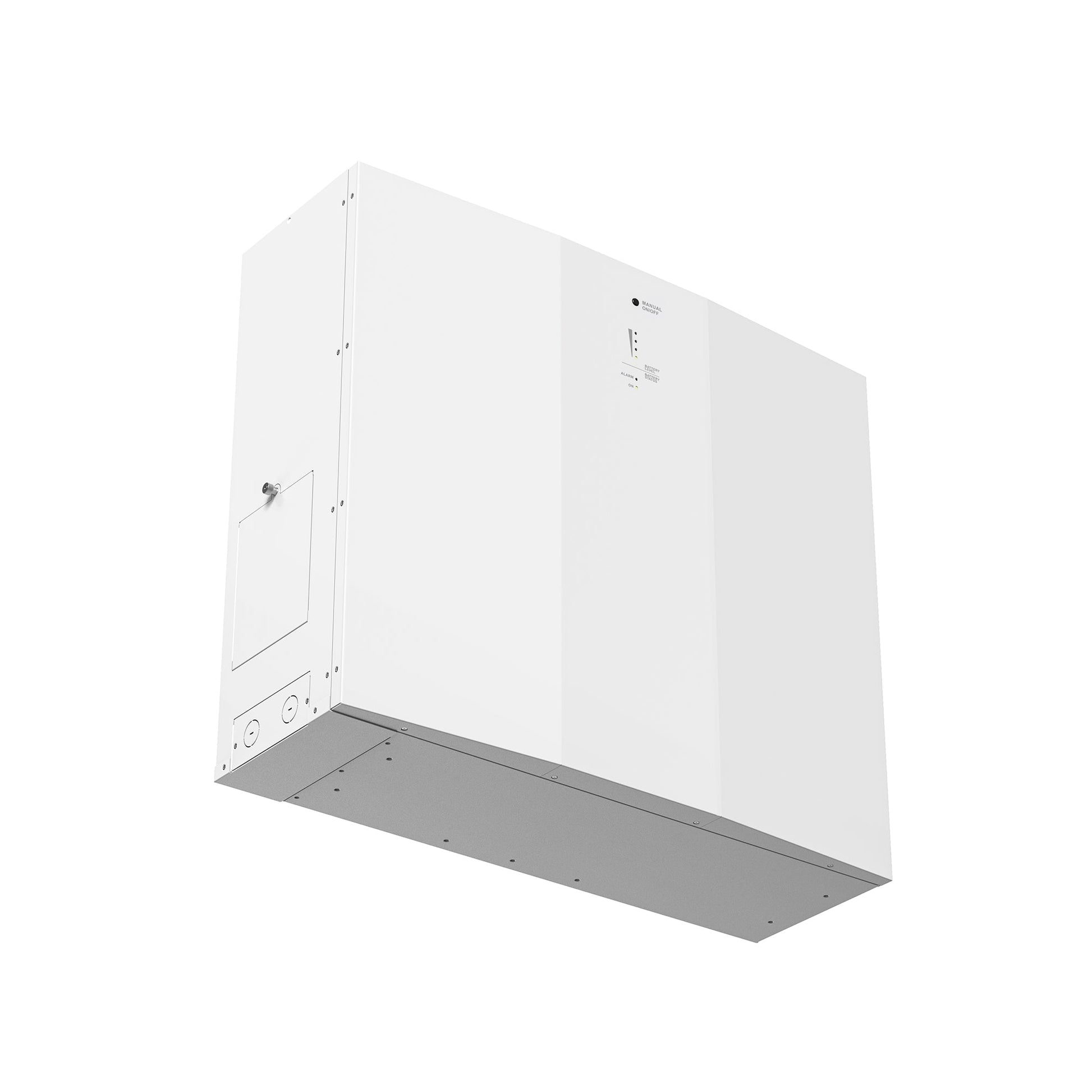

The RICH SOLAR RS-A10 integrates a 6,500W pure sine wave inverter, dual MPPT solar charging and a 51.2V 100Ah battery into a floor-standing enclosure. It supports configurable PV, battery and utility priorities plus app connectivity for a more consolidated installation than separate wall-mounted components.
At a glance
The numbers that define this system
The 287 lb system still requires engineered PV strings, correctly rated protection, grounding, AC input/output wiring, transfer strategy, clearances and code-compliant installation.
System fit
Best for a planned 120V off-grid or backup installation with managed loads.
The system provides 120V AC—not native 120/240V split phase. Verify every load, start-up surge, runtime target, panel string, utility/generator input and whether additional battery expansion is supported by the exact revision.
In the box
What the current product configuration includes
- RICH SOLAR RS-A10 all-in-one cabinet
- Integrated 6,500W pure sine wave inverter
- Integrated dual-MPPT solar/AC charger

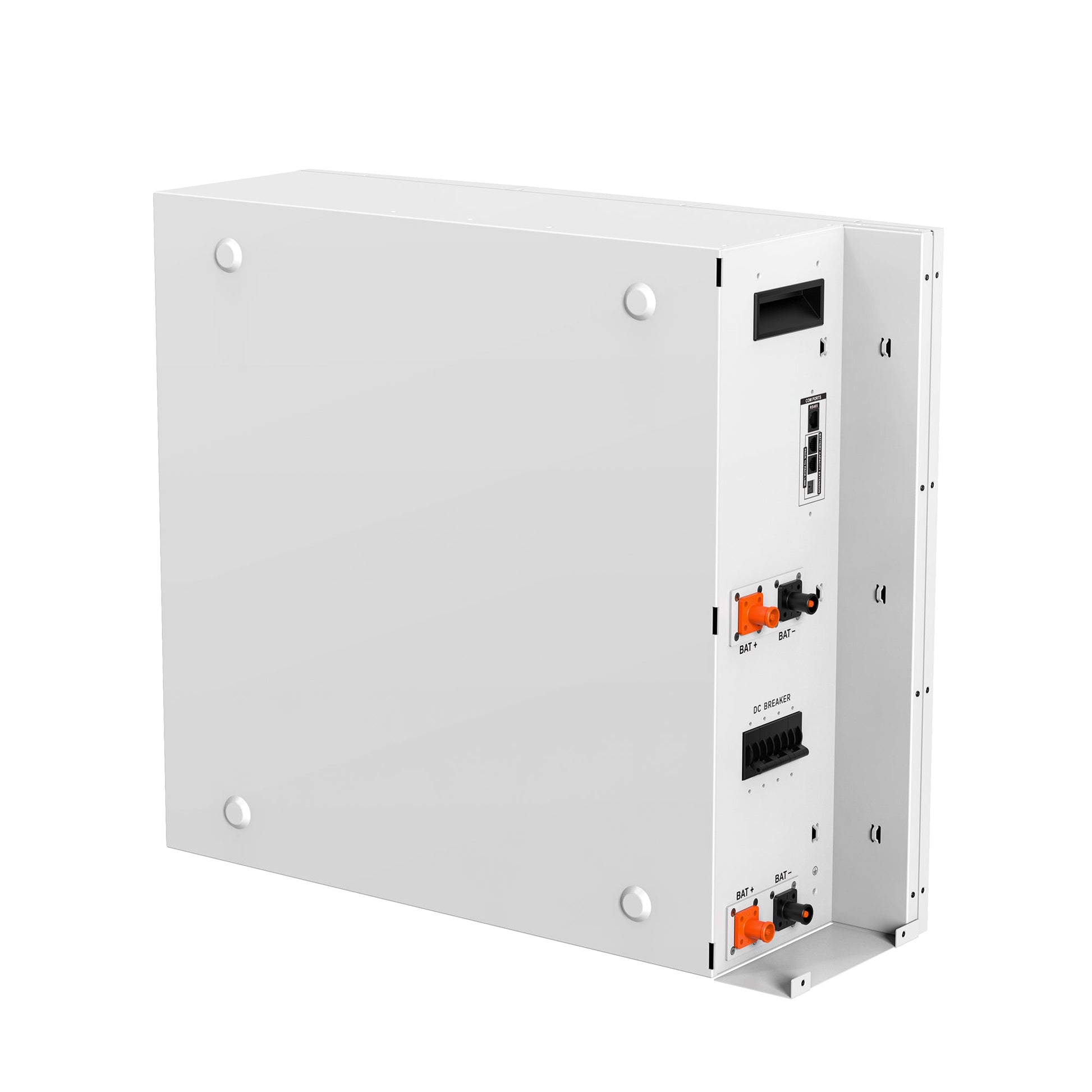

- Integrated 51.2V 100Ah / 5.12kWh battery with BMS and breaker

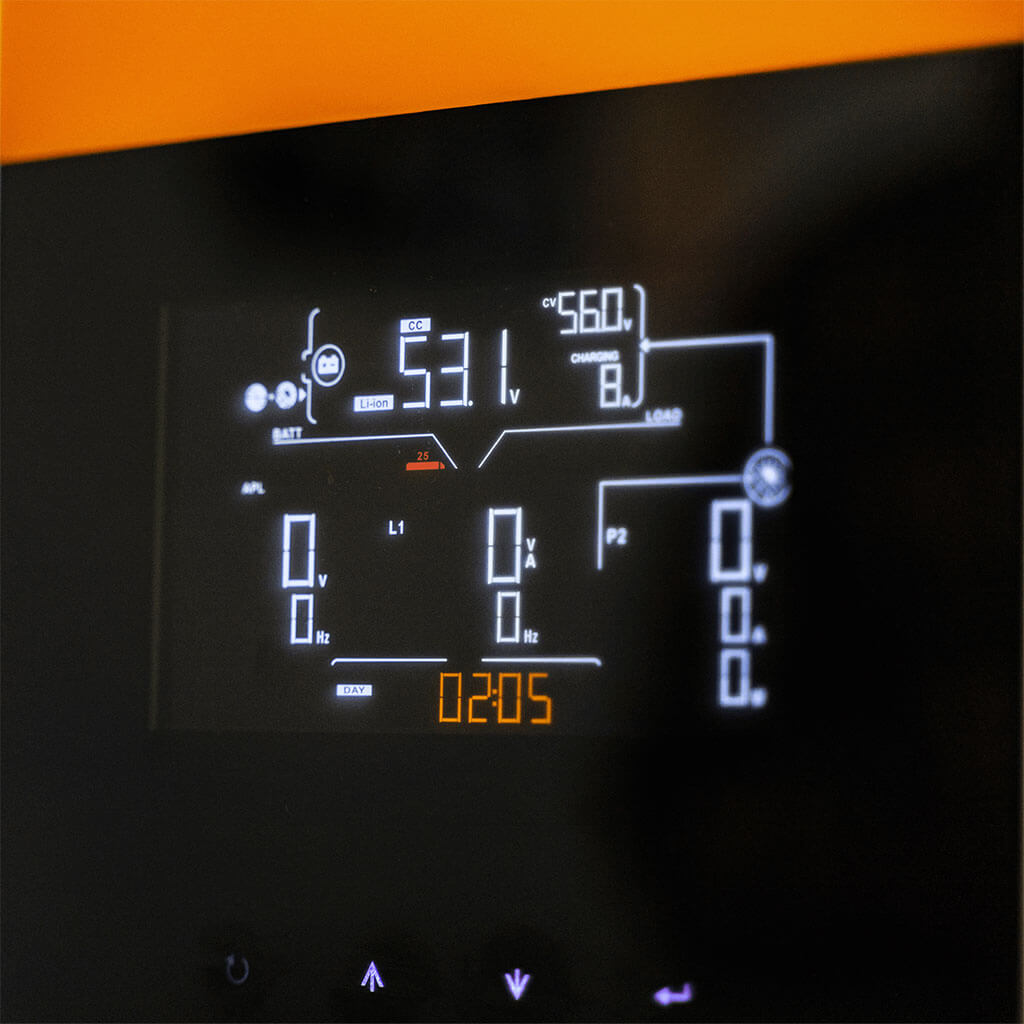

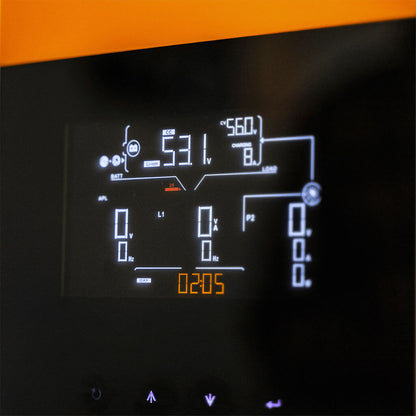

- Built-in system monitoring and supported communications hardware
Solar panels, PV wiring, racking, external disconnects/protection, AC distribution, transfer equipment, installation and permits are not listed as included. RICH SOLAR also offers a separate battery-only option; Torven Power will process an order from this page as the RS-A10 all-in-one system.
Product confidence
Review the current RS-A10 system warranty before installation.
RICH SOLAR links this product to its general written warranty rather than stating a dedicated term on the product page. Review the manufacturer’s current warranty for coverage, registration, installation requirements and exclusions, or contact Torven Power for help before ordering.
Common questions
Before you build around this product
Does this output 240V?
No native 240V output is listed. The current specification states 120V AC nominal battery-mode output.
Are solar panels included?
No panels are listed with the RS-A10 cabinet. Design the PV array within the 90–230V MPPT operating range, 250V maximum Voc and input-current limits.
How long will the 5.12kWh battery run my loads?
Runtime depends on usable depth of discharge, inverter losses and load. High-power appliances can use 5.12kWh quickly.
Is this the same as the battery-only option?
No. This page is for the RS-A10 all-in-one energy storage system. RICH SOLAR’s battery-only option is a separate product.
Product Data
Technical Specifications
| Model | RS-A10 |
|---|---|
| Maximum PV Input Power | 8000W |
| Rated Output Power | 6500W |
| Maximum Charging Power | 6500W |
| MPPT Range @ Operating Voltage | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 18A |
| Acceptable Input Voltage Range | 90–140 VAC (For Computers) 80–140 VAC (For Home Appliances) |
| Maximum AC Input Current | 60A |
| Nominal Output Voltage | 120 VAC |
| Maximum Conversion Efficiency (DC/AC) | 93% |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 120A |
| Dimension (D × W × H) | 8.4" × 24.4" × 19.7" |
| Net Weight | 99 lb |
| Capacity | 5120Wh |
| Nominal Voltage | 51.2VDC |
| Full Charge Voltage (FC) | 56V |
| Full Discharge Voltage (FD) | 42V |
| Typical Capacity | 100Ah |
| Max Continuous Discharging Current | 120A |
| Max Discharging Current | 192A at 1 min |

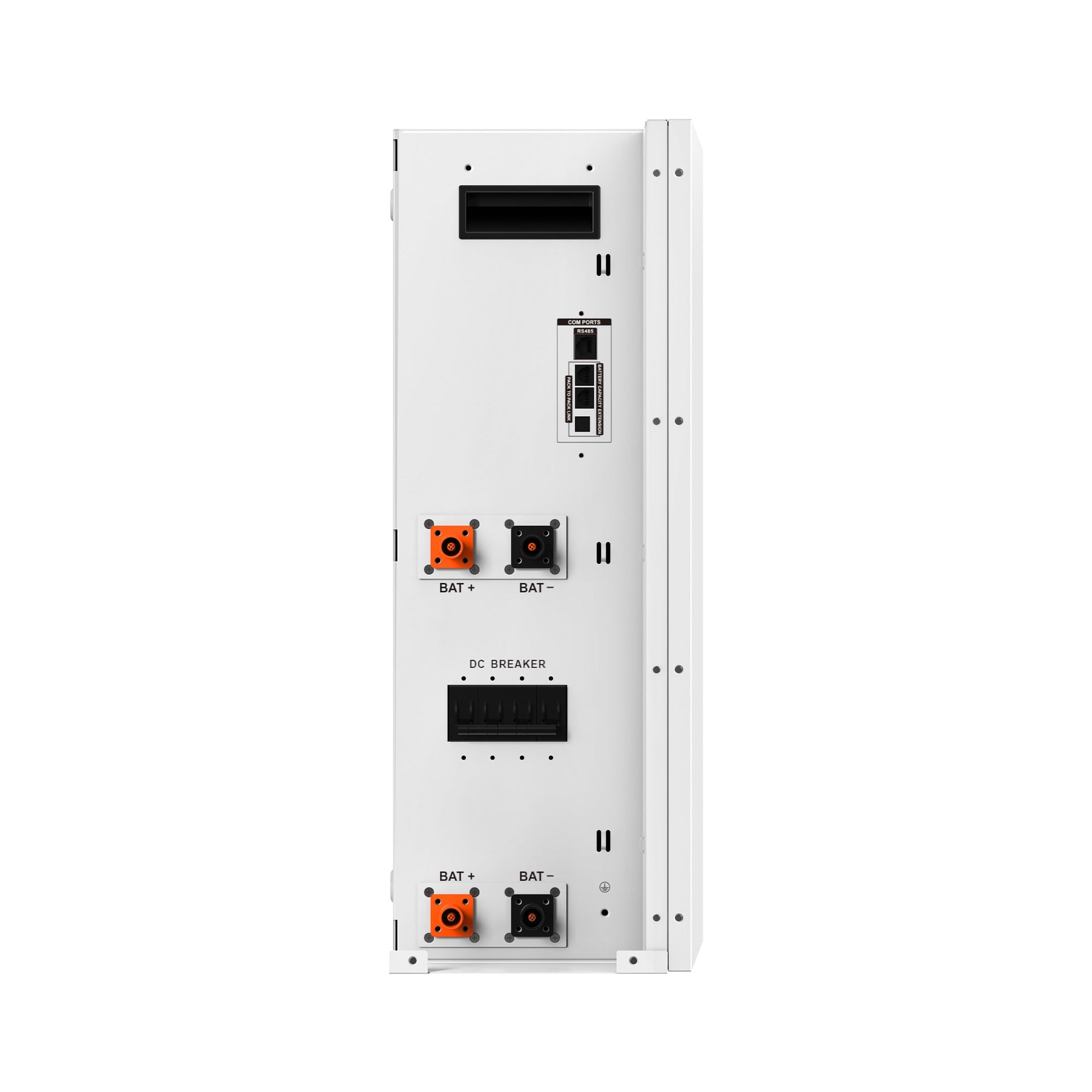

| Protection | BMS, Breaker |
| Float Charge Voltage | 52.5V |
| Charge Current | 20A (0.2C) |
| Maximum Charge Current | 50A (0.5C) |
| Standard Charge Method | 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C |
| Inner Resistance | ≤20mΩ |
| System Dimension (D × W × H) | 19.7" × 26" × 49.2" |
Available configurations
| Option | SKU |
|---|---|
| All in One ESS | RS-A10 |
Review the current manufacturer manual for your exact model before installation or use.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
