RICH SOLAR 8000W 48V-120/240VAC Solar Kit
RICH SOLAR 8000W 48V-120/240VAC Solar Kit
SKU: RS-CBK8000
- Regular price
- $21,999.99
- Regular price
- Sale price
- $21,999.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
A high-capacity split-phase solar and storage package
Combine 8.2kW of solar, 40.96kWh of storage and paired 6.5kW inverters.
The RICH SOLAR RS-CBK8000 is a large 48V-class off-grid kit built around twenty MEGA 410 panels, eight ALPHA 5 PRO rack batteries and two NOVA 6500S hybrid inverters. The paired inverters are intended for 120/240V operation, while the included batteries provide a substantial reserve for a professionally designed essential-load or off-grid system.
At a glance
The numbers that define this system
The current component list contains twenty 410W panels, which equals 8,200W—not exactly 8,000W. Array stringing, clipping and usable production still depend on the inverter limits and site design.
System fit
This is system equipment—not a whole-home performance guarantee.
A qualified designer must calculate critical and noncritical loads, surge, daily energy, days of autonomy, array production, conductor ampacity, protection, grounding, transfer equipment, permitting and equipment-location requirements.

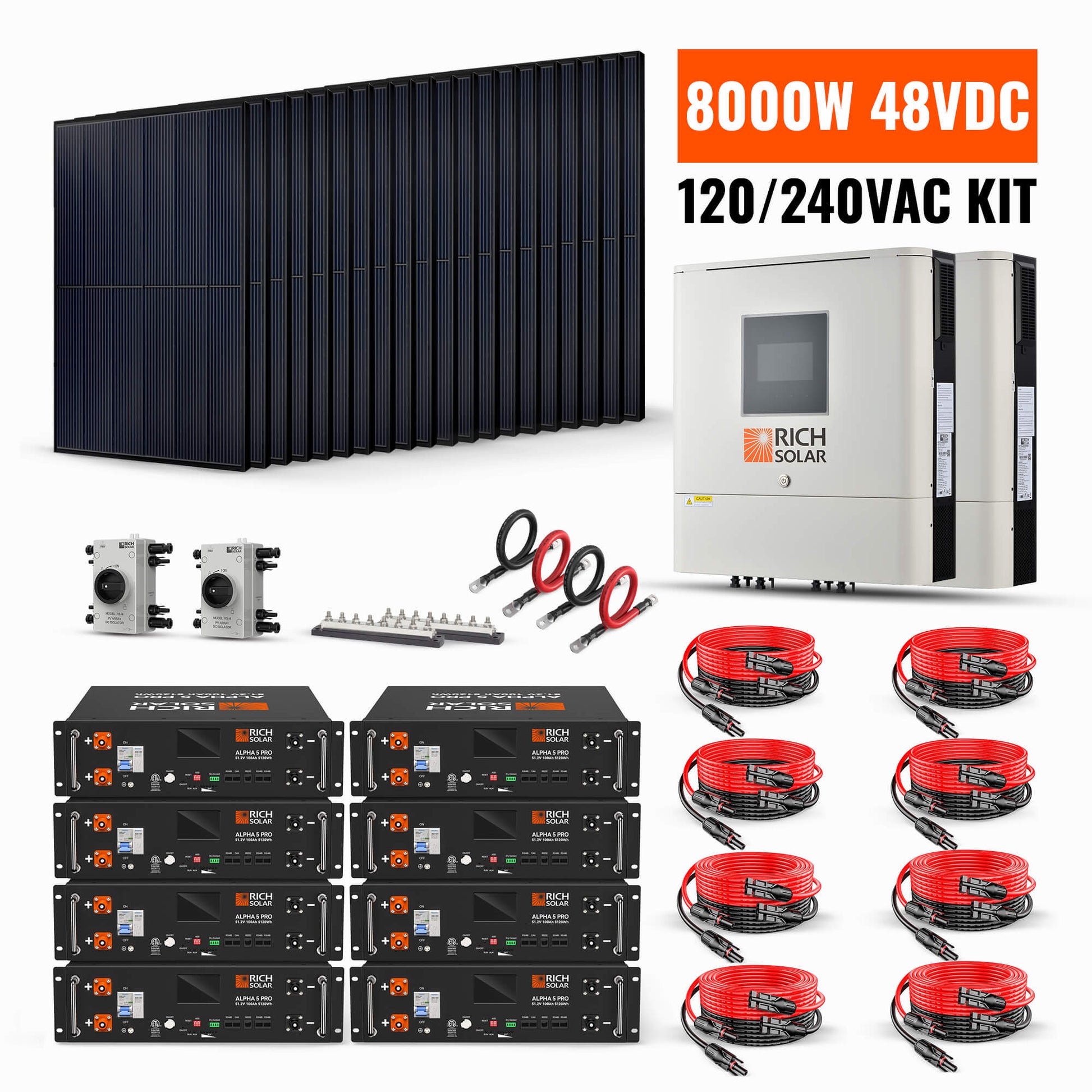

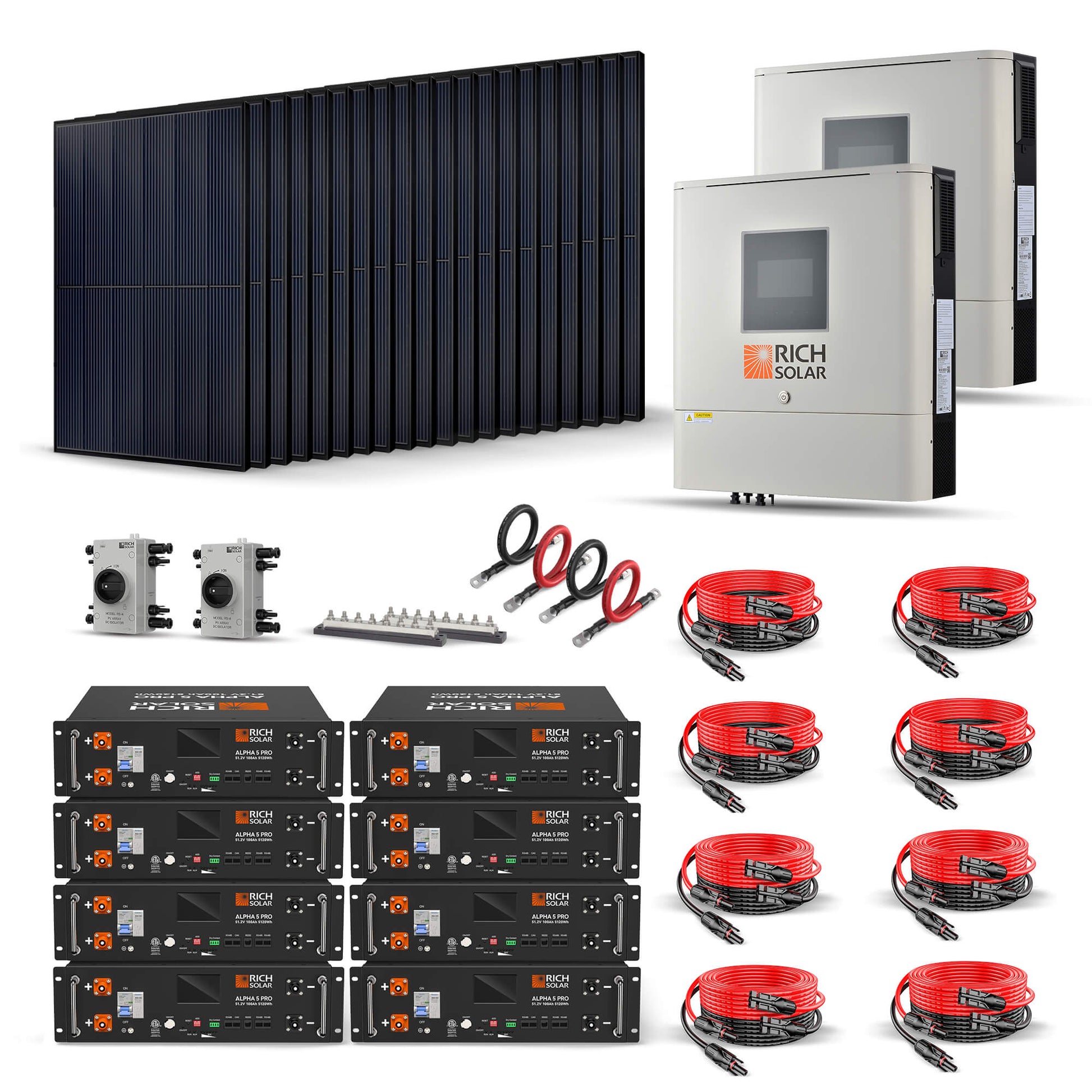

In the box
What the current product configuration includes
- 2 × NOVA 6500S 6,500W 48V hybrid inverters (RS-H6548S)
- 20 × MEGA 410W solar panels (RS-M410)
- 8 × ALPHA 5 PRO 5.12kWh rack batteries (RS-B5121P)
- 2 × 600A busbars
- 4 × 30 ft and 4 × 10 ft 10AWG extension cables
- 2 × RS-i4 PV DC disconnects and 2 × listed 4/0 AWG 5 ft battery cable sets
Battery cabinet or rack, panel racking, AC/DC distribution, transfer equipment, grounding, rapid-shutdown hardware, installation and permits are not listed as included. Contact Torven Power for an itemized equipment check, and have your installer define the site-specific balance of system before ordering.
Product confidence
Published coverage across the panels, batteries and inverters.
RICH SOLAR’s current limited warranty lists 25-year power-output and 10-year workmanship coverage for rigid panels, 10-year coverage for ALPHA PRO batteries and three-year coverage for hybrid inverters. The written prorated schedules, proof-of-purchase, installation, exclusions and remedies control each delivered component.
Common questions
Before you build around this product
Is the solar array 8,000W or 8,200W?
RICH SOLAR names this an 8,000W kit, while the included twenty 410W panels total 8,200W of nameplate capacity. Use 8,200W for array calculations and have the final string design verified against the inverter limits.
Will this power an entire house?
Not automatically. Whole-home suitability depends on peak and surge load, daily energy, required backup duration, climate, array production and how loads are divided.
Does it include the battery rack?
A rack is not named in the current RS-CBK8000 component list. Verify rack/cabinet, busbar mounting and cable requirements before ordering.
Can the paired inverters provide 120/240V?
The product is sold for 120/240V architecture, but the inverters must be wired, programmed and synchronized exactly according to the current parallel/split-phase documentation.
Product Data
Technical Specifications
| Manufacturer model | 8000W 48V-120/240VAC Solar Kit |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-CBK8000 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
2 × NOVA 6500S 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter (RS-H6548S)
| Model | RS-H6548S |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Compliance Safety | UL |
20 × MEGA 410 410W Solar Panel Pallet (RS-M410)
| Maximum Power(Pmax) | 410W |
|---|---|
| Maximum Power Voltage(Vmp) | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) | 37.5V |
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.8 x 44.7 x 1.2 in |
8 × ALPHA 5 PRO 51.2V 100Ah Rack Battery (RS-B5121P)
| Manufacturer model | ALPHA 5 PRO | 51.2V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, RVs, Off-Grid | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973, UL9540A Certified |
|---|---|
| Listed SKU count | 6 |
Review the current manufacturer manual for your exact model before installation or use.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Why Buy From Us
Shop with confidence at Torven Power.
Clear policies and real support before and after your purchase.
Ordering Information
Shipping & Returns
Shipping: Shipping method, availability, and delivery timing are confirmed during order review. Batteries, panel pallets, and large kits may require freight delivery, an appointment, or receiving coordination.
Returns: Eligibility, timing, product-condition, freight, and restocking terms vary by item. Review the current Shipping Policy and Return & Refund Policy before ordering.
