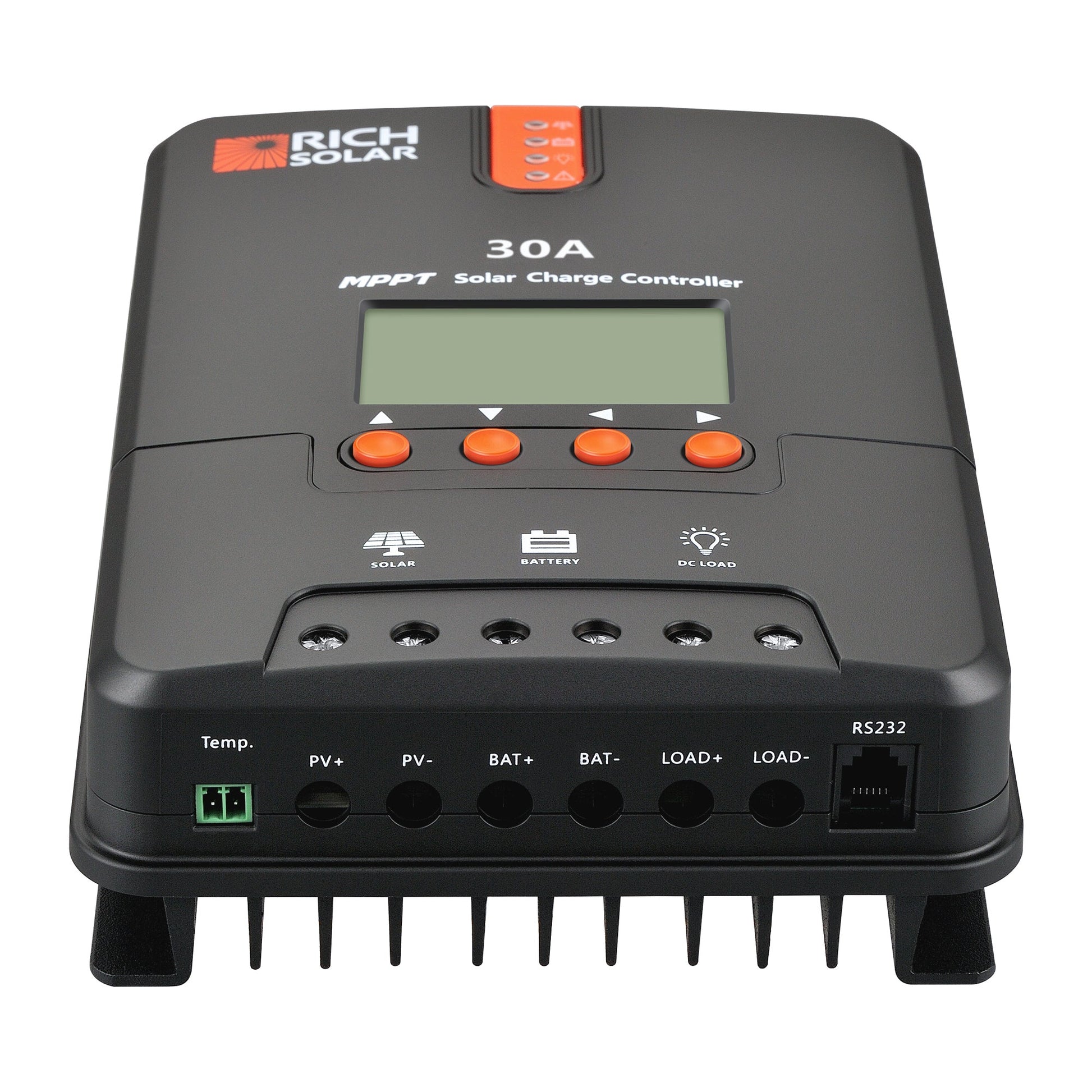

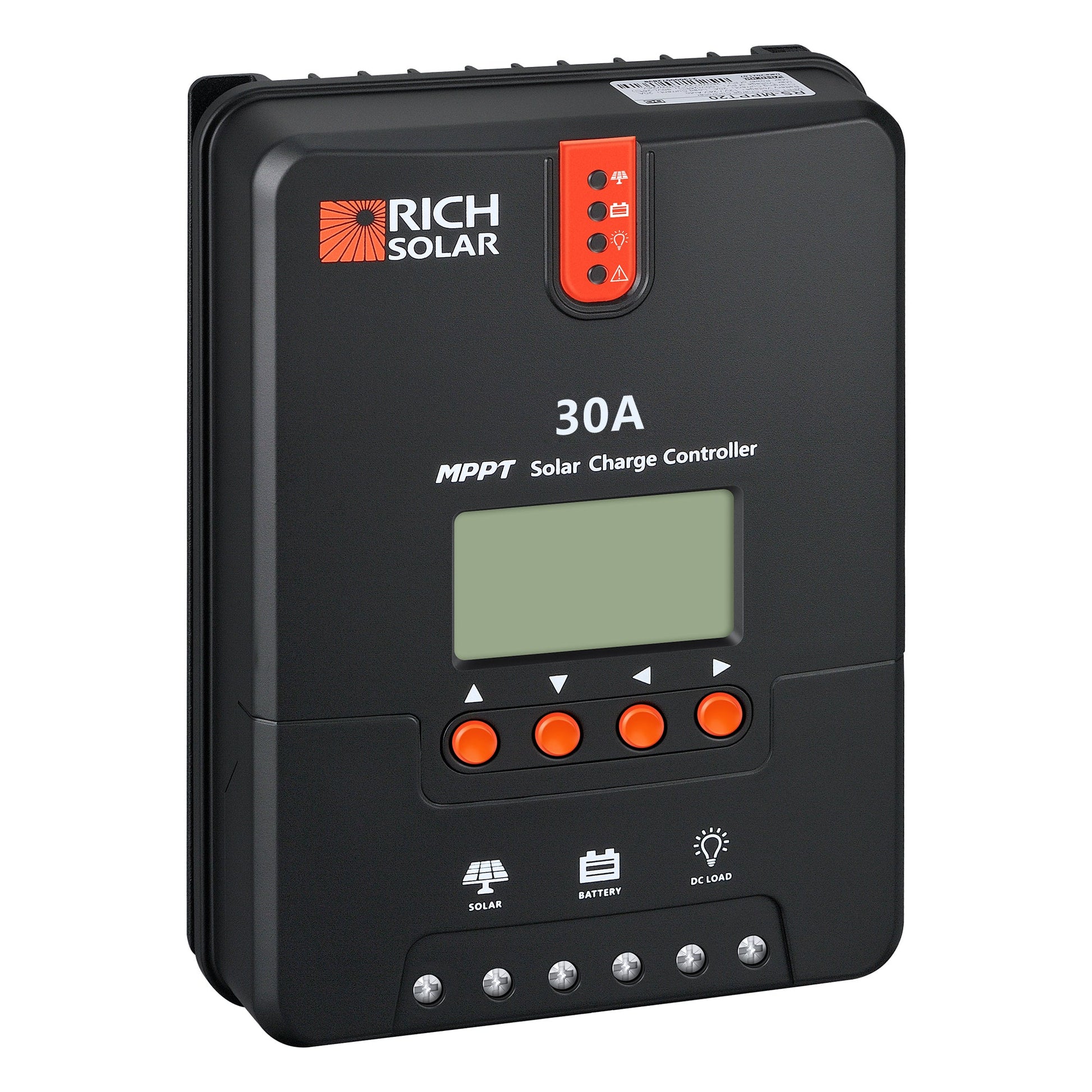

RICH SOLAR 30 Amp MPPT Solar Charge Controller
RICH SOLAR 30 Amp MPPT Solar Charge Controller
SKU: RS-MPPT30
- Regular price
- $139.99
- Regular price
- Sale price
- $139.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
MPPT charging for a measured solar and battery system
Manage up to 30A of solar charging with a controller built around 12/24V auto battery banks.
The RICH SOLAR 30A MPPT Controller is an MPPT solar charge controller for RVs, boats, cabins and off-grid battery systems. Its published limits pair a 30A maximum charging current with 100V at 77°F; 90V at −13°F maximum PV open-circuit voltage, giving system designers room to build efficient arrays without guessing at the controller's electrical ceiling.
At a glance
The four limits to match first
The listed recommended PV input is 400W at 12V or 800W at 24V. String voltage must remain below 100V at 77°F; 90V at −13°F after cold-weather correction, and parallel current must stay within the controller, conductor and protection limits.
System fit
Match the array, battery and wiring as one circuit.
Use the 9.37 × 6.81 × 2.85 in enclosure where ventilation, conductor bend radius and service access are available. Confirm the controller's environmental rating, terminal capacity, grounding arrangement and battery-temperature guidance for the installation.
In the box
What this 30A MPPT Controller listing covers
- 1 × RICH SOLAR 30A MPPT Controller MPPT solar charge controller
Solar panels, battery, temperature sensor, Bluetooth module or remote display, disconnects, fuses or breakers and installation wiring are separate unless the selected listing expressly states otherwise.
Product confidence
Coverage follows RICH SOLAR's current written terms
Use the current controller manual for installation, settings and environmental limits. Warranty eligibility and remedies follow RICH SOLAR's written policy and exclusions for the exact controller model.
Common questions
30A MPPT Controller system-design questions
How much solar can I connect?
Use both the published 400W at 12V or 800W at 24V recommendation and the electrical limits. The complete array must remain below 100V at 77°F; 90V at −13°F after temperature correction and inside every current limit.
Will it charge lithium batteries?
Published battery selections include sealed, gel, flooded and lithium. The preset still has to match the exact battery maker's required charge voltage, temperature rules and BMS behavior.
Can I place the controller outdoors?
Do not assume weatherproof installation. Follow the stated ingress rating for the connection area, provide required ventilation and keep terminals protected from water, debris and conductive contamination.
What wire and protection should I use?
Size conductors, disconnects and overcurrent protection from maximum circuit current, run length, terminal limits and local code. The controller amperage alone is not enough to choose them.
Product Data
Technical Specifications
| Nominal System Voltage | 12V/24V Auto |
|---|---|
| Rated Charging Current | 30A |
| Rated Load Current | 20A |
| Max Solar Input Voltage | 100V(25℃), 90V(-25℃) |
| Discharge Circuit Voltage drop | ≤0.15V |
| Net Weight | 4.41lbs |
| Overall Dimension | 9.37 x 6.81 x 2.85in |
| Battery Wire Diameter | 6mm² |
| Load Wire Diameter | 5mm² |
| No-load Loss | 0.7W to 1.2W |
| Battery Voltage | 9V to 35V |
| Max. Power Point Voltage Range | Battery Voltage +2V to 75V |
| Max. Photovoltaic System Input Power | 400W/12V, 800W/24V |
| Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99% |
| Temperature Compensation Factor | -3mv//2V Default |
| Operating Temperature | -35°C to +45°C |
| Protection Degree | IP32 |
| Communication Method | RS232 |
| Altitude | ≤3000m |
| Max. Capacitive Load Capacity | 1000uF |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-MPPT30 |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
