RICH SOLAR
RICH SOLAR 2500W 48VDC-240VAC Solar Kit
RICH SOLAR 2500W 48VDC-240VAC Solar Kit
SKU: RS-CBK2500240
- Regular price
- $9,499.99
- Regular price
- Sale price
- $9,499.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.

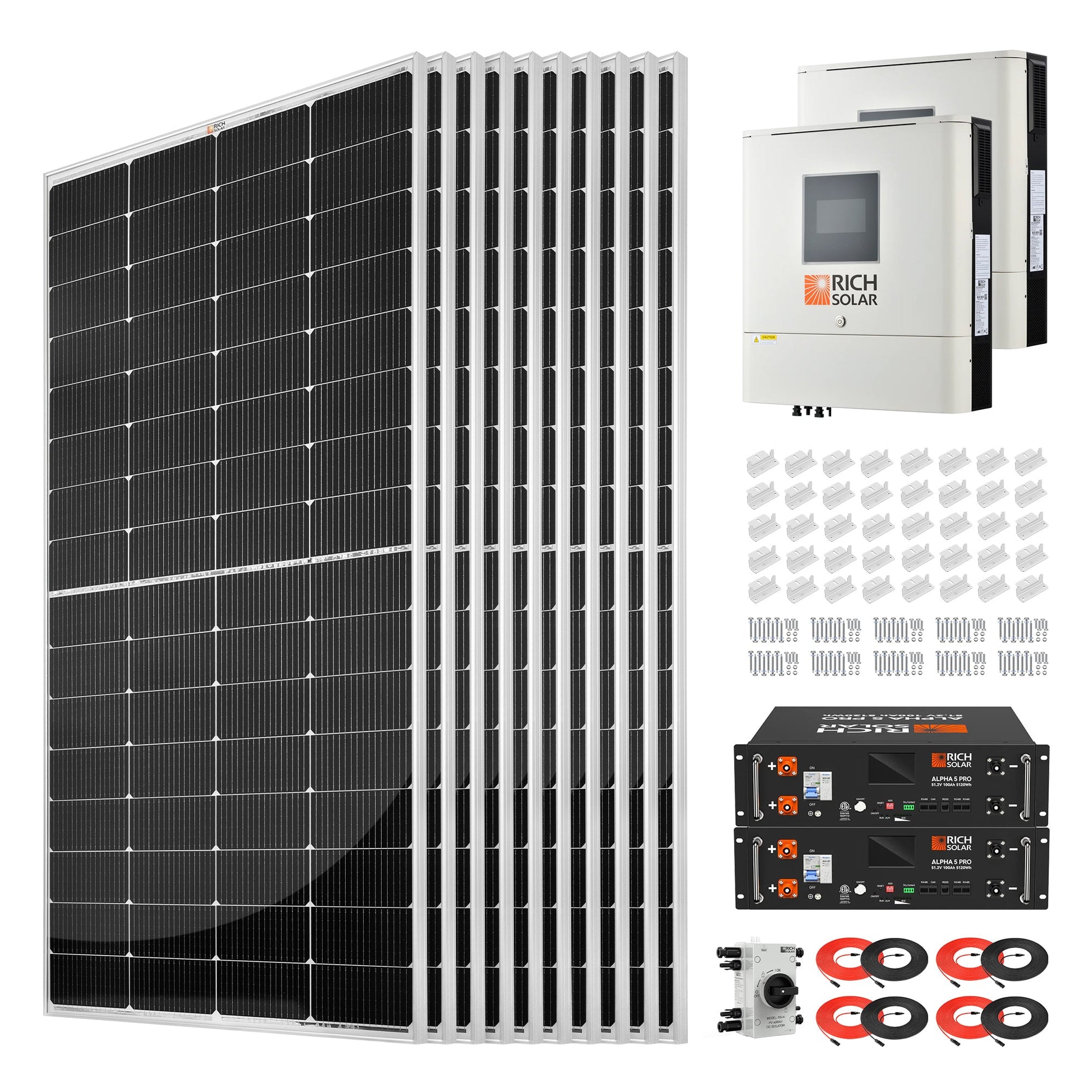

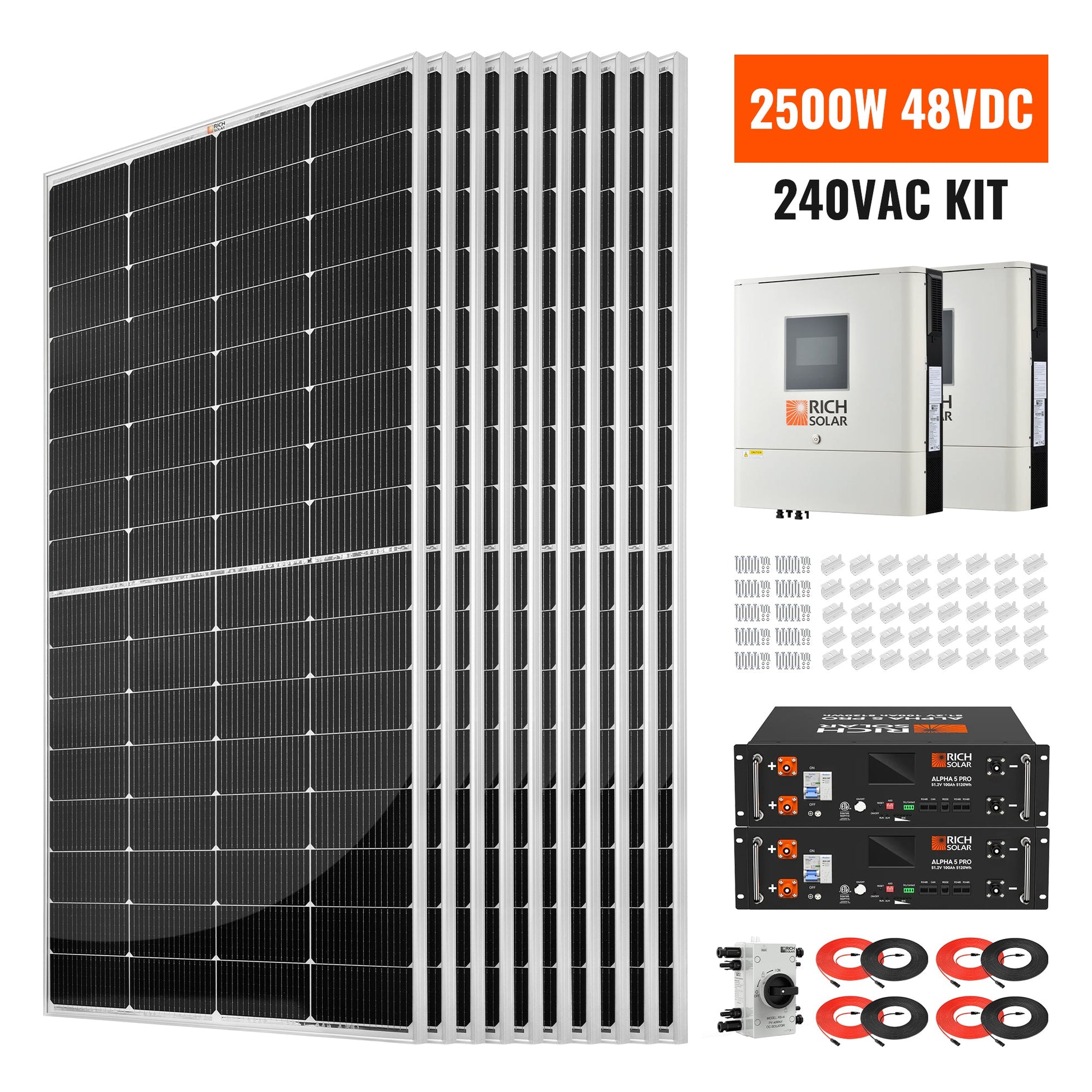

A 48V split-phase package with ten 250W panels
Build 120/240V power around 2.5kW of solar and 10.24kWh of storage.
The RICH SOLAR RS-CBK2500240 pairs two NOVA 6500S hybrid inverters with ten MEGA 250 panels and two ALPHA 5 PRO batteries. It is aimed at a custom cabin, remote-building or essential-load system that needs split-phase capability but a smaller solar and storage package than the 4kW and 8kW kits.
At a glance
The numbers that define this system
Two batteries store 10.24kWh nominal. High sustained loads can deplete that reserve quickly, so model runtime and battery current instead of treating the combined inverter rating as available energy.
System fit
A good fit only when the energy budget supports the smaller battery and array.
Calculate daily watt-hours, peak and surge demand, solar-resource variability, desired autonomy and generator or grid support. Then verify PV strings, battery current, transfer method and all protection.
In the box
What the current product configuration includes
- 2 × NOVA 6500S 6,500W 48V hybrid inverters (model H6548S)
- 10 × MEGA 250W solar panels (RS-M250)
- 2 × ALPHA 5 PRO 5.12kWh rack batteries (RS-B5121P)
- Published 30 ft and 10 ft 10AWG extension cables
- 15 × RS-ZB4C Z-bracket line items
- 1 × RS-i4 PV DC quick disconnect
Battery busbars and cables, a rack, AC/DC distribution, transfer equipment, grounding and installation are not listed as included. Contact Torven Power for an itemized equipment check, then add the site-specific parts required by your installer.
Product confidence
Published coverage across the panels, batteries and inverters.
RICH SOLAR’s current limited warranty lists 25-year power-output and 10-year workmanship coverage for rigid panels, 10-year coverage for ALPHA PRO batteries and three-year coverage for hybrid inverters. The written prorated schedules, proof-of-purchase, installation, exclusions and remedies control each delivered component.
Common questions
Before you build around this product
How long will 10.24kWh last?
Runtime depends on usable depth of discharge, inverter losses and load. Divide estimated usable watt-hours by average load watts, then add margin for surge and changing conditions.
Does it include all battery cables and busbars?
They are not listed as included. Contact Torven Power for an itemized equipment check, and have your installer specify correctly rated battery interconnects, busbars and protection.
Can the two inverters provide 240V?
The kit is sold for 120/240V use, but correct parallel/split-phase setup, wiring and programming are mandatory.
Are ten panels enough for the batteries?
That depends on daily energy use, sun hours, climate, orientation and other charging sources. Model the site rather than assuming one-day recovery.
Product Data
Technical Specifications
| Manufacturer model | 2500W 48VDC-240VAC Solar Kit |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-CBK2500240 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
2 × NOVA 6500S 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter (RS-H6548S)
| Model | RS-H6548S |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Compliance Safety | UL |
10 × MEGA 250 250W 12V Solar Panel (RS-M250)
| Maximum Power (Pmax) | 250W |
|---|---|
| Maximum Power Voltage (Vmp) | 18.9V |
| Maximum Power Current (Imp) | 13.2A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40 ~ +185℉ |
| Weight | 26.9 lb |
| Dimensions | 60.6 x 29.9 x 1.2 in |
2 × ALPHA 5 PRO 51.2V 100Ah Rack Battery (RS-B5121P)
| Manufacturer model | ALPHA 5 PRO | 51.2V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, RVs, Off-Grid | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973, UL9540A Certified |
|---|---|
| Listed SKU count | 6 |
Review the current manufacturer manual for your exact model before installation or use.
