A storage-backed 48V cabin and backup system
Pair a 2.5kW array with 10.24kWh of LiFePO4 storage and 6.5kW of 120V output.

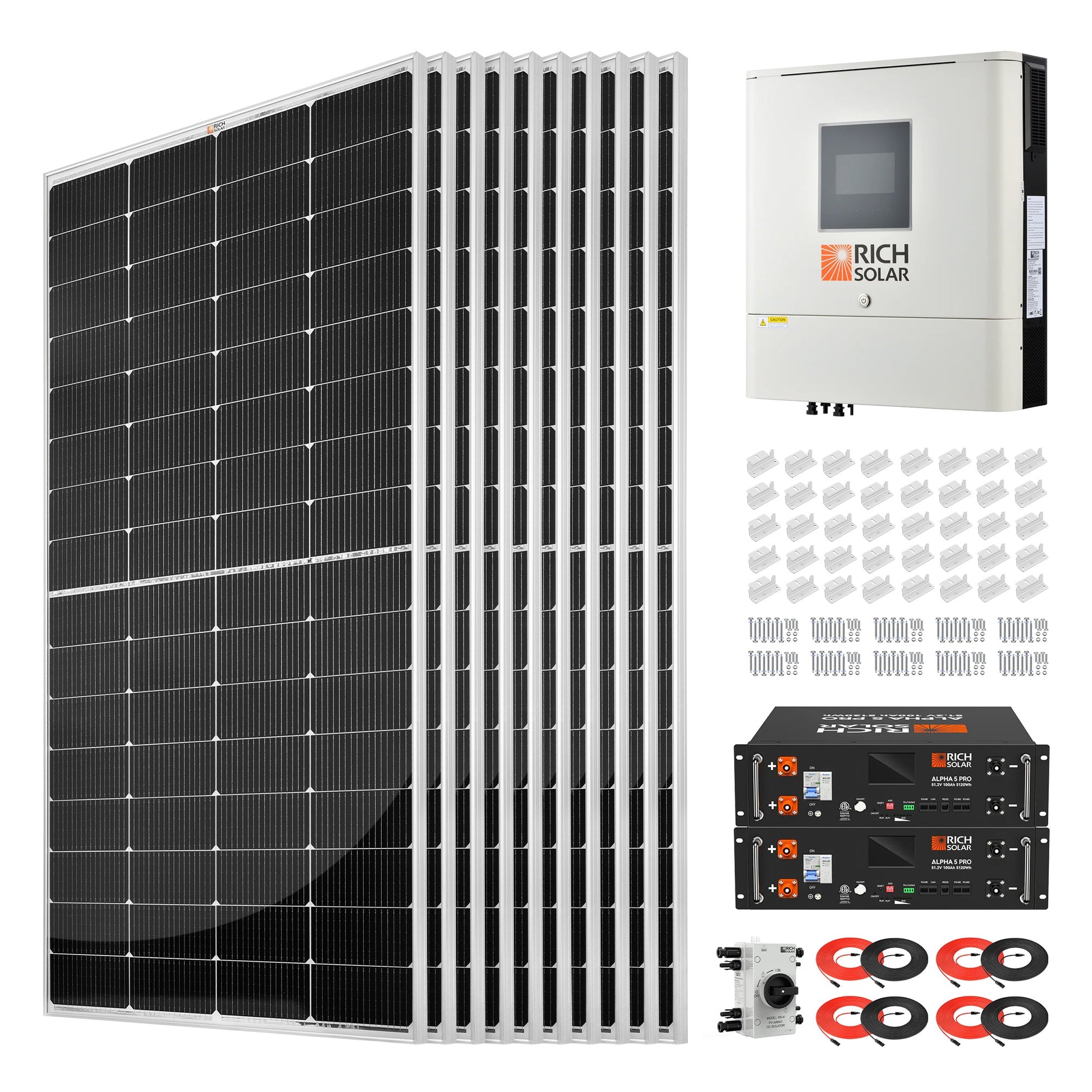

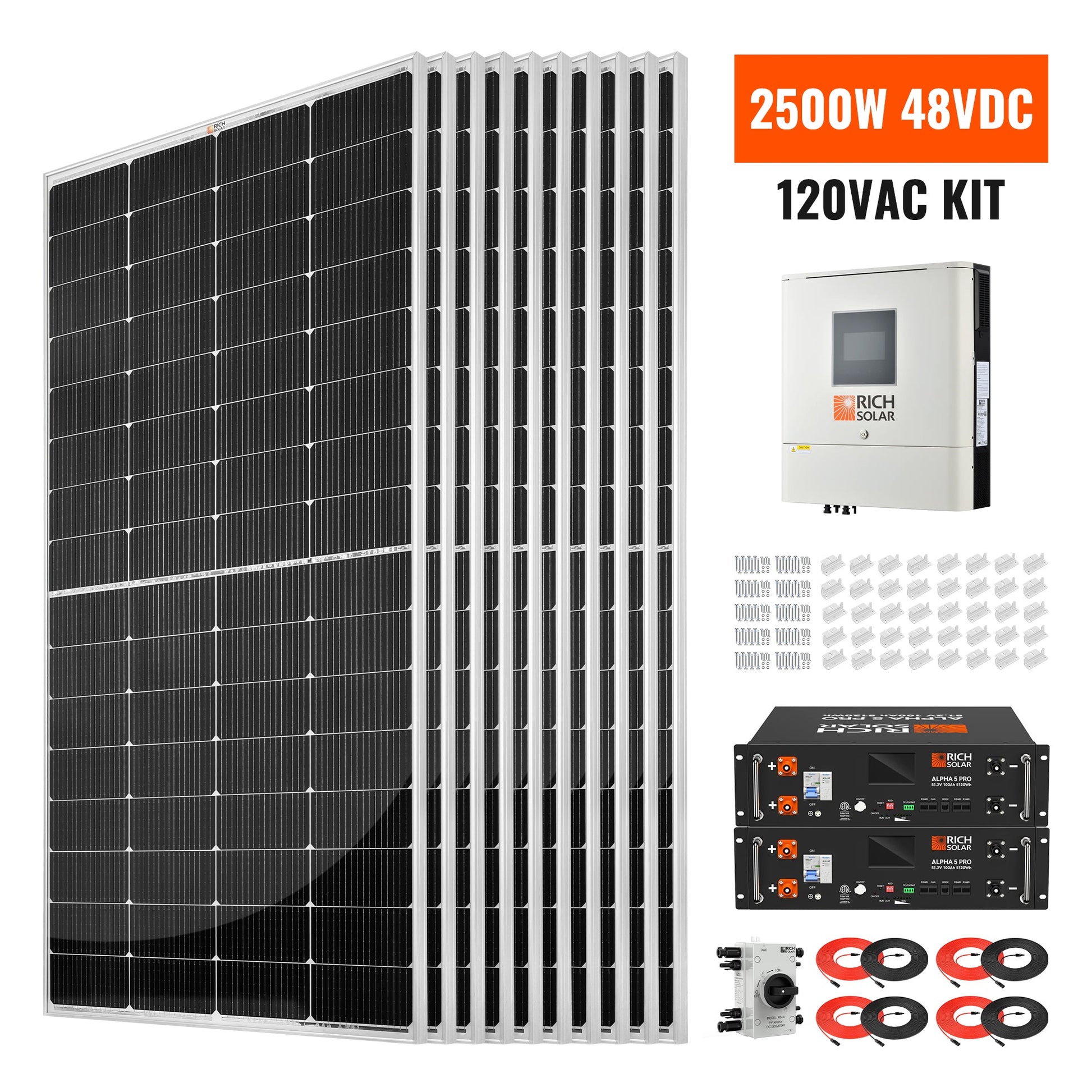

The RICH SOLAR RS-CBK2500 combines ten MEGA 250 panels, two ALPHA 5 PRO rack batteries and one NOVA 6500S hybrid inverter. It gives a cabin, workshop, remote property or planned backup circuit a coordinated 48V foundation with enough battery capacity to carry measured loads after sunset.
At a glance
A practical balance of array, storage and inverter capacity
A 6,500W inverter can support large short-duration loads, but the two batteries store 10.24kWh nominal. Size the system from both peak watts and daily watt-hours, then leave capacity for losses and reserve.
System fit
Designed for 120V loads and a professionally planned 48V system.
This kit is not a plug-in power station. The array string design, battery protection, AC distribution, grounding, transfer method and final conductor sizes must be matched to the installation and local code.
In the box
Equipment listed for RS-CBK2500
- 1 × NOVA 6500S 6,500W 48V hybrid inverter (RS-H6548S)
- 10 × MEGA 250W monocrystalline panels (RS-M250)
- 2 × ALPHA 5 PRO 5.12kWh rack batteries (RS-B5121P)
- 2 × 30 ft 10 AWG solar extension cable sets (RS-30102)
- 2 × 10 ft 10 AWG solar extension cable sets (RS-10102)
- 15 × RS-ZB4C Z-bracket line items
- 1 × RS-i4 PV DC quick disconnect
Battery rack or cabinet, battery interconnects and busbars, AC distribution, transfer equipment, grounding, installation and permits are not listed as included. Contact Torven Power for an itemized equipment check before ordering.
Product confidence
Component-specific warranty coverage from RICH SOLAR
The panels, inverter and batteries use different warranty terms. Review the current written coverage, installation conditions, registration rules and exclusions for each component before commissioning the system.
Common questions
Plan RS-CBK2500 around real loads
Will this run a whole house?
Not automatically. It has 120V output and must be sized against simultaneous watts, surge and daily energy use. A typical split-phase home with 240V loads needs a different architecture or additional compatible equipment.
How much energy can the batteries store?
Two 5.12kWh ALPHA 5 PRO batteries provide 10.24kWh nominal. Actual usable AC energy is lower after reserve settings, temperature and conversion losses.
Does it include a battery rack and every cable?
A battery rack, battery interconnects and busbars are not listed. Contact Torven Power for an itemized equipment check, and have your installer define the required battery protection and mounting.
How should the ten panels be wired?
String layout depends on the NOVA 6500S PV window and the coldest expected panel open-circuit voltage. Do not choose series and parallel counts from wattage alone; have the final string plan verified.
Product Data
Technical Specifications
| Manufacturer model | 2500W 48VDC-120VAC Solar Kit |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-CBK2500 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
1 × NOVA 6500S 6500W (6.5kW) 48V Off-Grid Hybrid Solar Inverter (RS-H6548S)
| Model | RS-H6548S |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Compliance Safety | UL |
10 × MEGA 250 250W 12V Solar Panel (RS-M250)
| Maximum Power (Pmax) | 250W |
|---|---|
| Maximum Power Voltage (Vmp) | 18.9V |
| Maximum Power Current (Imp) | 13.2A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40 ~ +185℉ |
| Weight | 26.9 lb |
| Dimensions | 60.6 x 29.9 x 1.2 in |
2 × ALPHA 5 PRO 51.2V 100Ah Rack Battery (RS-B5121P)
| Manufacturer model | ALPHA 5 PRO | 51.2V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, RVs, Off-Grid | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973, UL9540A Certified |
|---|---|
| Listed SKU count | 6 |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
