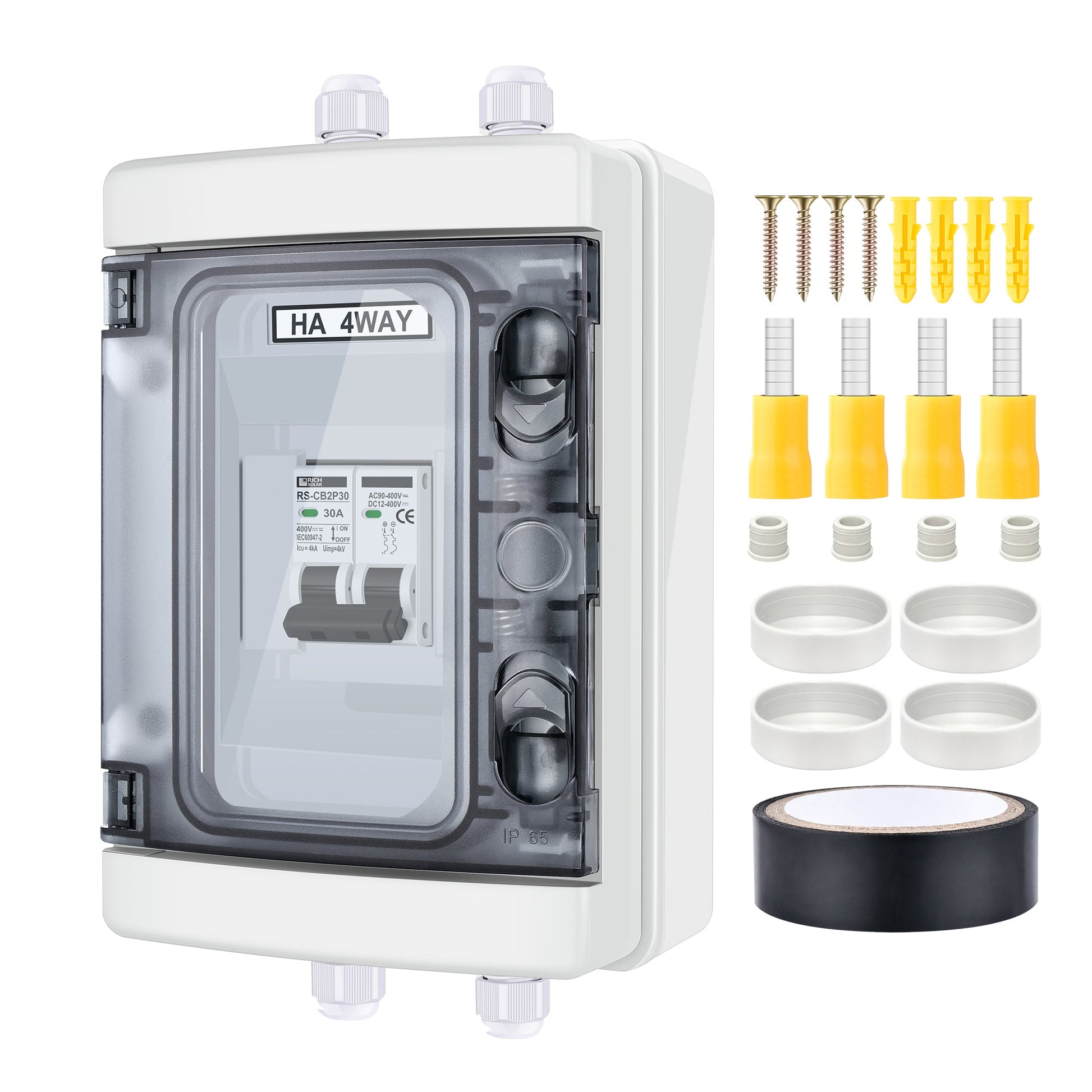

• RICH SOLAR 30A two-pole outdoor circuit breaker box with mounting hardware
  • RICH SOLAR 40A two-pole outdoor circuit breaker box with mounting hardware
  • RICH SOLAR 60A two-pole outdoor circuit breaker box with mounting hardware

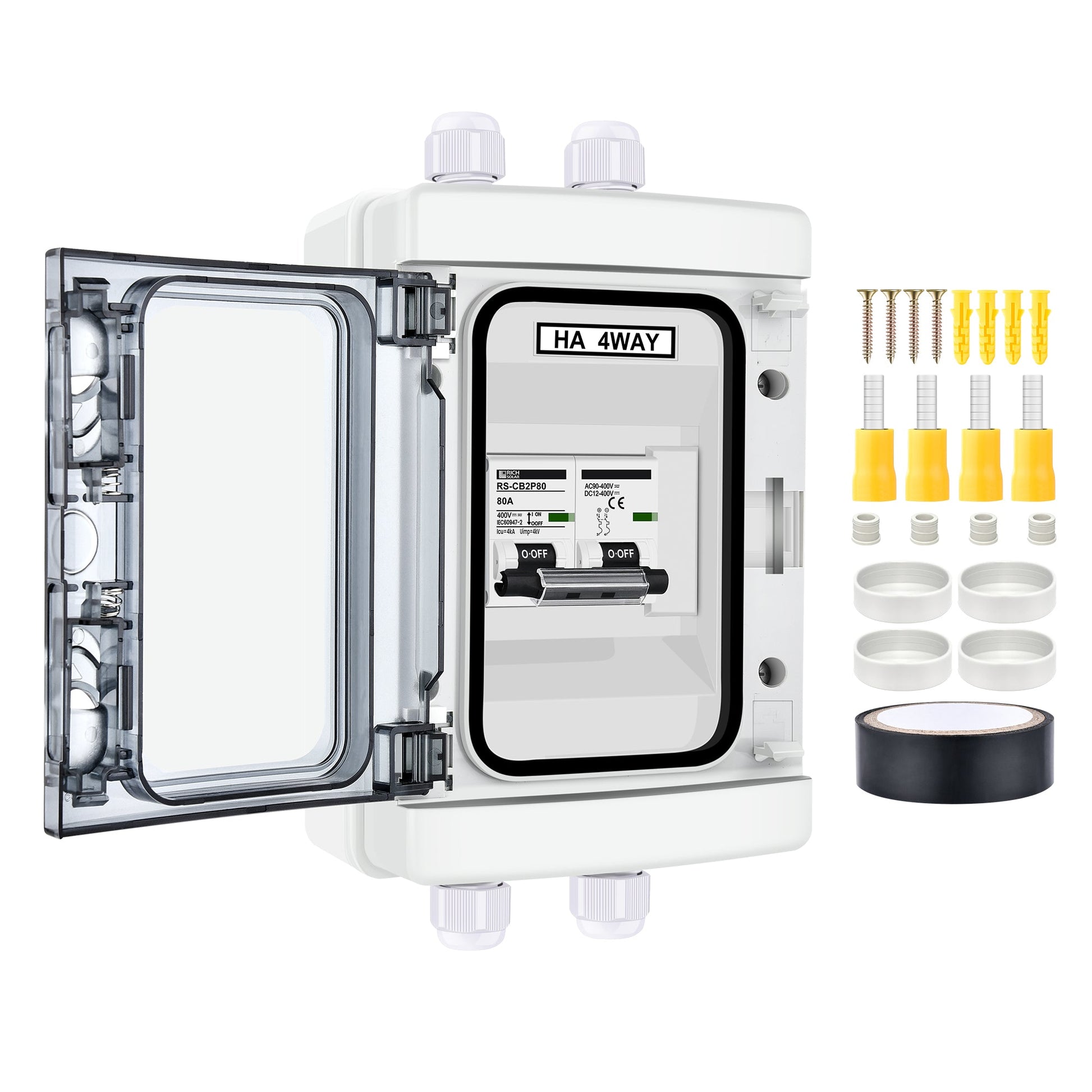

  • RICH SOLAR 80A two-pole outdoor circuit breaker box with door open and mounting hardware

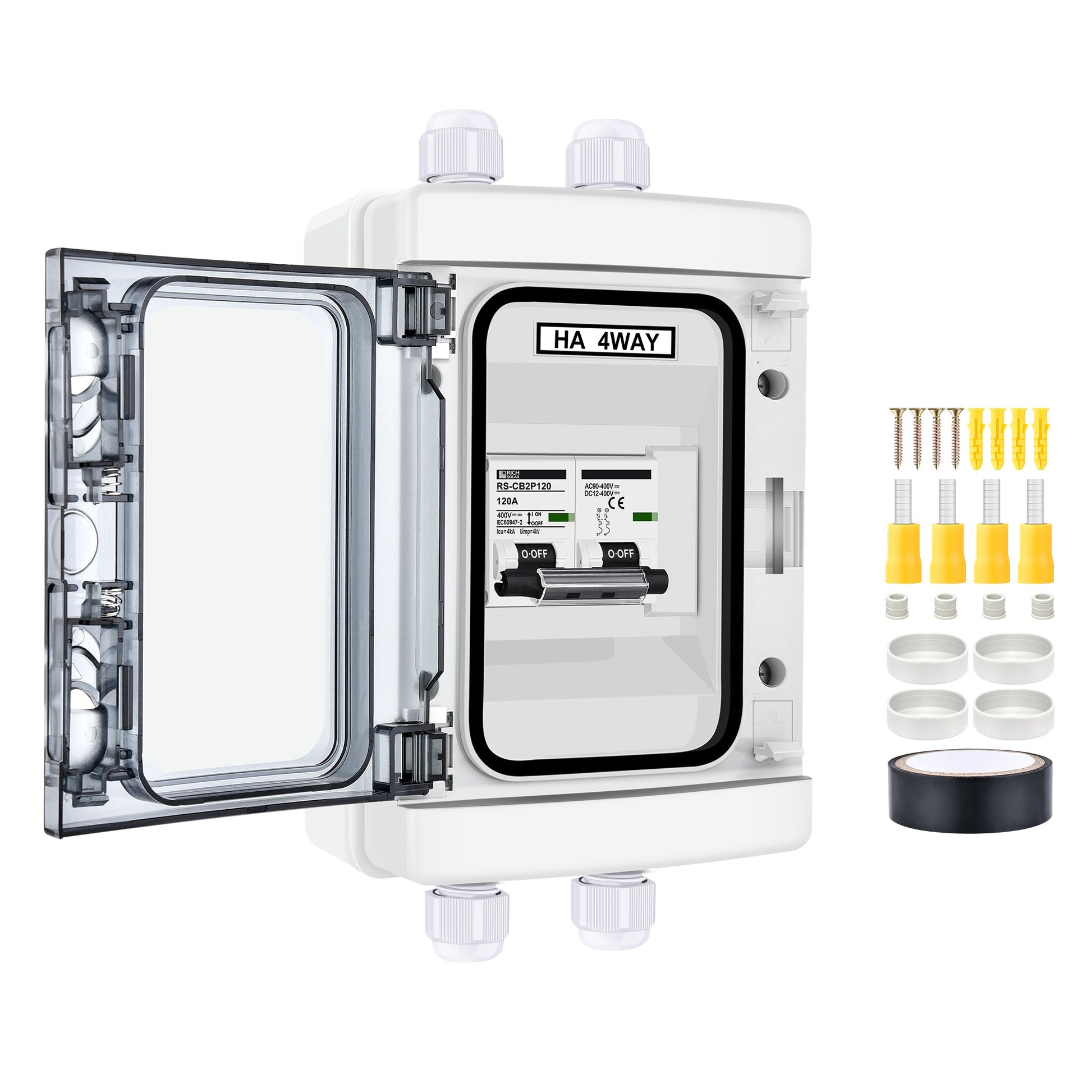

  • RICH SOLAR 120A two-pole outdoor circuit breaker box with door open and mounting hardware

RICH SOLAR

RICH SOLAR 2 Pole Outdoor Circuit Breaker Box Outdoor Circuit Breaker Box with 2 Poles and Solar Isolator Disconnect Switch

RICH SOLAR 2 Pole Outdoor Circuit Breaker Box Outdoor Circuit Breaker Box with 2 Poles and Solar Isolator Disconnect Switch

SKU: RS-CB2P30

$39.99
$39.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Weather-protected two-pole isolation in five current options

Choose 30A, 40A, 60A, 80A or 120A for a correctly designed AC or DC circuit.

The RICH SOLAR two-pole outdoor breaker box combines a 2P breaker, transparent service cover, DIN rail and IP65 exterior enclosure. Five current options cover 30A through 120A for solar, RV and off-grid circuits whose voltage, fault current and conductor size fit the selected model.

RICH SOLAR two-pole outdoor circuit breaker box

At a glance

Select the breaker from the circuit—not the appliance label

2PPole count
30 / 40 / 60 / 80 / 120ACurrent options
4,000ABreaking capacity
IP65 / IP20Exterior / interior
Current rating alone does not prove circuit compatibility

Confirm AC or DC voltage, continuous current, conductor ampacity, interrupt rating, pole arrangement, polarity, enclosure use and local code. Use a qualified electrician for circuit-protection work.

RICH SOLAR two-pole breaker box current options

Why it stands out

A packaged isolation point with visible breaker status

Five current optionsChoose the exact variant after the conductor, source and continuous-load calculation is complete.
Weather-protected enclosureThe IP65 exterior, impact-resistant PC/ABS housing and predrilled cable entries support correctly sealed outdoor installation.
Serviceable DIN-rail layoutA transparent flip cover provides visual access while the internal rail and copper bus structure organize the protective device.

System fit

Coordinate breaker, conductor and source fault current.

The published voltage range is AC 90–400V and DC 12–400V with 50/60Hz AC frequency. Confirm whether the selected breaker is approved for the exact DC polarity and application, then use compatible glands, terminals, torque and labeling.

Best-fit projectsSolar, RV and off-grid circuits that require two-pole isolation within the selected current, voltage and 4,000A breaking-capacity limits.
Installer checksCircuit voltage and polarity, calculated load, source fault current, wire insulation and ampacity, enclosure mounting, cable entries, grounding, torque and required disconnect labeling.

In the box

What the selected breaker-box variant covers

  • 1 × selected RICH SOLAR two-pole outdoor circuit breaker box: 30A, 40A, 60A, 80A or 120A

Incoming and outgoing cable, glands beyond the packaged parts, lugs, upstream or downstream protection, labels and installation labor are not listed as included.

Product confidence

Use the selected breaker markings and current instructions

Environmental protection and electrical performance depend on correct mounting, sealed cable entries, conductor preparation and torque. Warranty remedies follow the current RICH SOLAR written terms.

Common questions

Two-pole breaker-box questions

Which amperage should I choose?

Select it from conductor ampacity, continuous load, source capability, equipment requirements and code. Never increase breaker size just to prevent nuisance trips.

Can it be used on DC solar circuits?

The manufacturer lists DC 12–400V, but the selected device, polarity, interrupt rating and installation must match the exact PV or battery circuit.

Does IP65 mean it can be mounted anywhere outdoors?

No. Mounting orientation, cable glands, seals, drainage, UV exposure, clearances and enclosure penetrations still control weather resistance.

Does the 4,000A breaking capacity fit my source?

Only if the available fault current at the installation is within that rating and every other device is properly coordinated. Have the source fault current evaluated.
