RICH SOLAR 1600W 24V Complete Solar Kit with 3000W Inverter
RICH SOLAR 1600W 24V Complete Solar Kit with 3000W Inverter
SKU: RS-CK1600
- Regular price
- $3,999.99
- Regular price
- Sale price
- $3,999.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
A larger complete 24V solar system
Pair 1,600W of solar with 5.12kWh of LiFePO4 storage and a 3,000W inverter.
The RICH SOLAR RS-CK1600 is built for more substantial RV, tiny-home, cabin and off-grid projects. Eight MEGA 200 panels feed a 60A MPPT controller, while two ALPHA 4 24V 100Ah batteries and a NOVA PURE MAX 3K inverter create a native 24V power system.
At a glance
The numbers that define this system
Eight panels require careful string design, mounting, conductor sizing, overcurrent protection, disconnects, grounding and voltage verification in cold conditions. Use the current component manuals and applicable electrical code.
System fit
A strong match for larger mobile and small-building systems with controlled loads.
The right fit depends on daily watt-hours, peak and surge demand, solar resource, roof or ground-mount area and required autonomy. The kit does not guarantee that every 3,000W load can run for a useful duration.

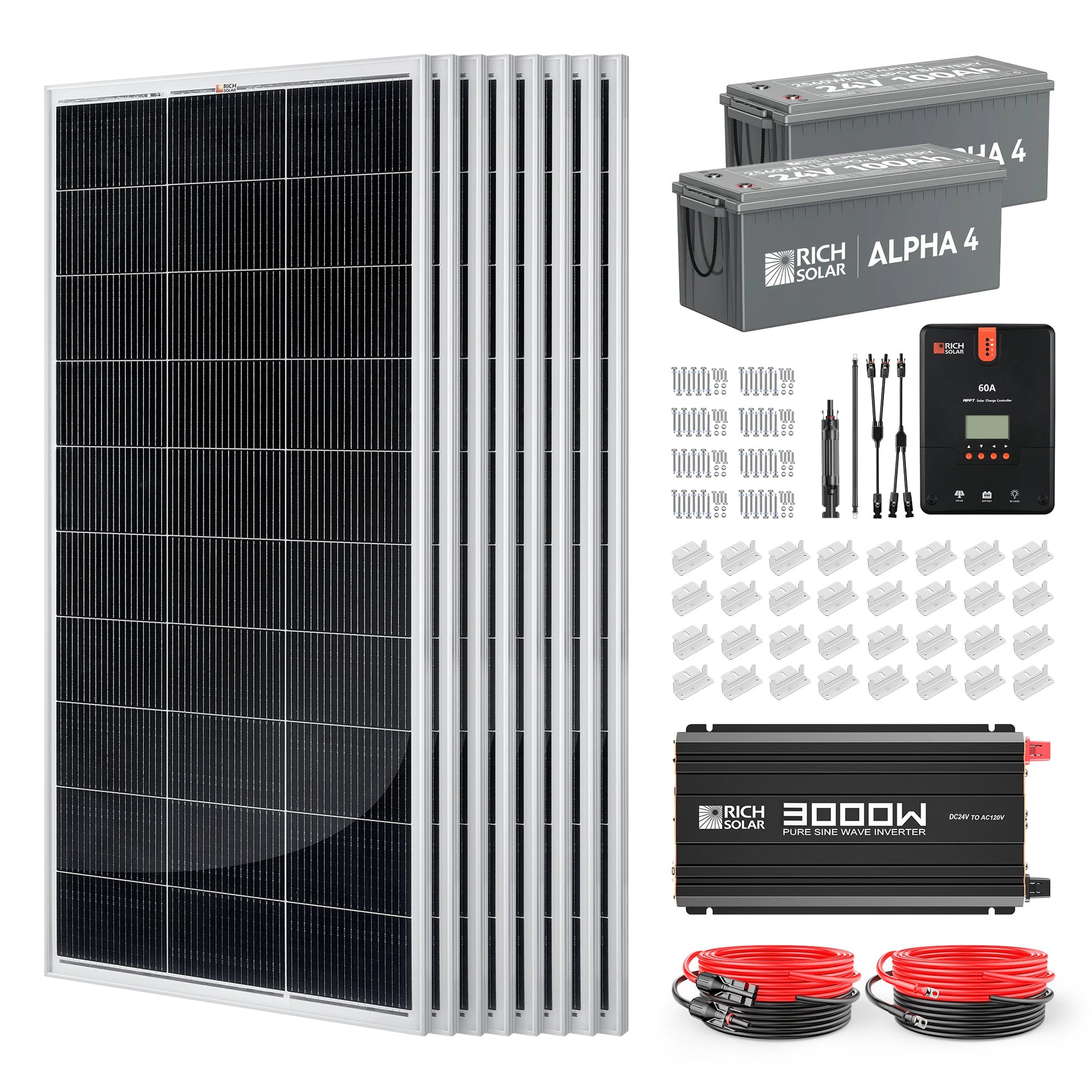

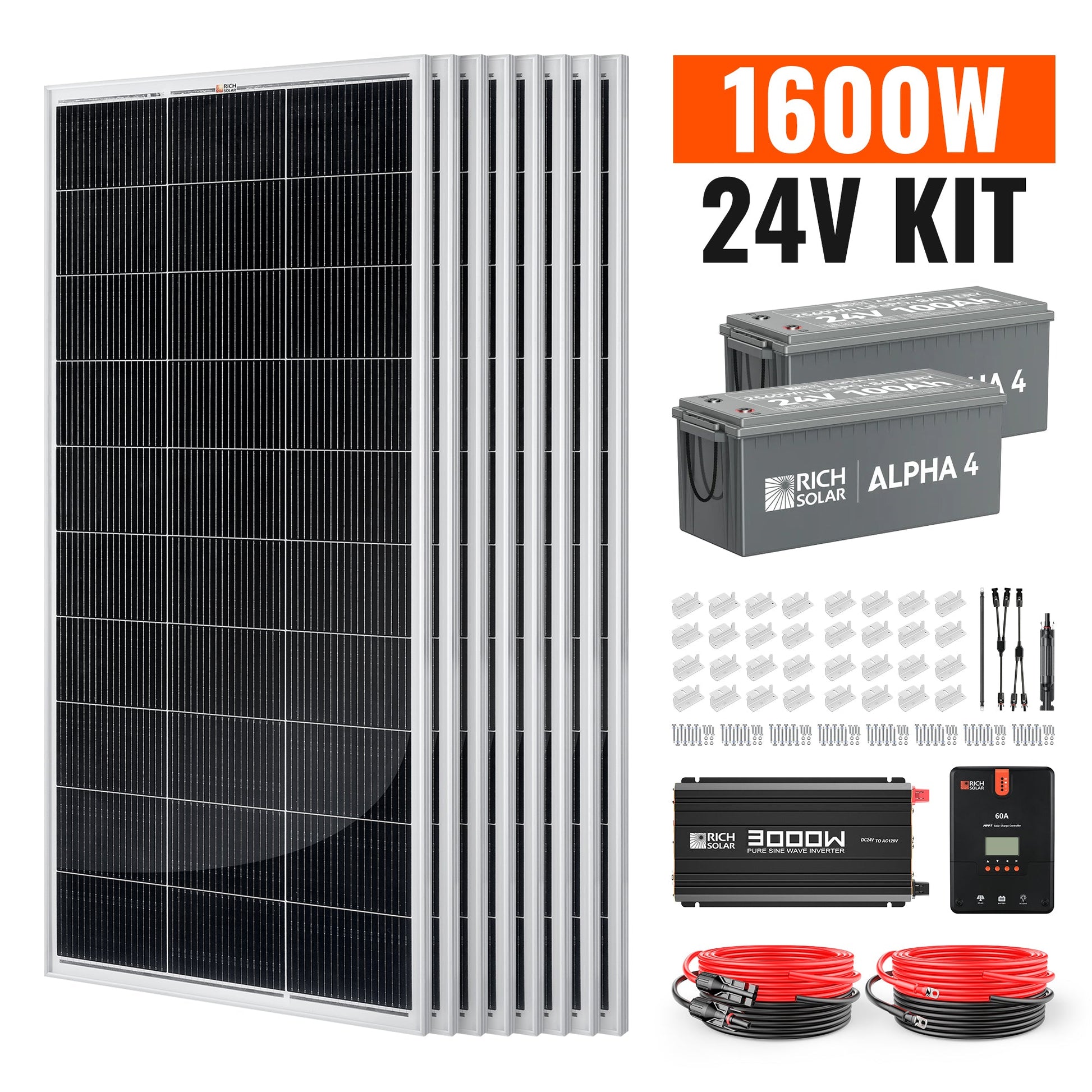

In the box
What the current product configuration includes
- 8 × MEGA 200W 12V solar panels (RS-M200)
- 2 × ALPHA 4 24V 100Ah LiFePO4 batteries (RS-B241S)
- 1 × NOVA PURE MAX 3K 24V pure sine wave inverter (RS-V3P24)
- 1 × 60A MPPT solar charge controller (RS-MPPT60)
- 8 × Z-bracket sets plus one 30A inline fuse holder and one Y-branch parallel adapter
- Inverter, battery, panel-to-controller and controller-to-battery cable sets for the current kit configuration
Product confidence
Component-specific protection for a multi-part system.
RICH SOLAR lists separate coverage for the MEGA panels, ALPHA batteries, controller and inverter. The manufacturer’s current written terms determine duration, eligibility, exclusions and remedies for each component.
Common questions
Before you build around this product
Why use a 24V system?
For a given power level, 24V architecture can reduce DC current compared with 12V. It does not remove the need for correctly sized conductors, protection and qualified installation.
How much energy do the batteries store?
Two 25.6V, 100Ah ALPHA 4 batteries provide 5.12kWh of combined nominal energy. Usable energy and runtime depend on operating limits and conditions.
Does the kit include a transfer switch or subpanel?
Those items are not named in the official kit list. Add any required transfer equipment, distribution, disconnects and site-specific protection to the project plan.

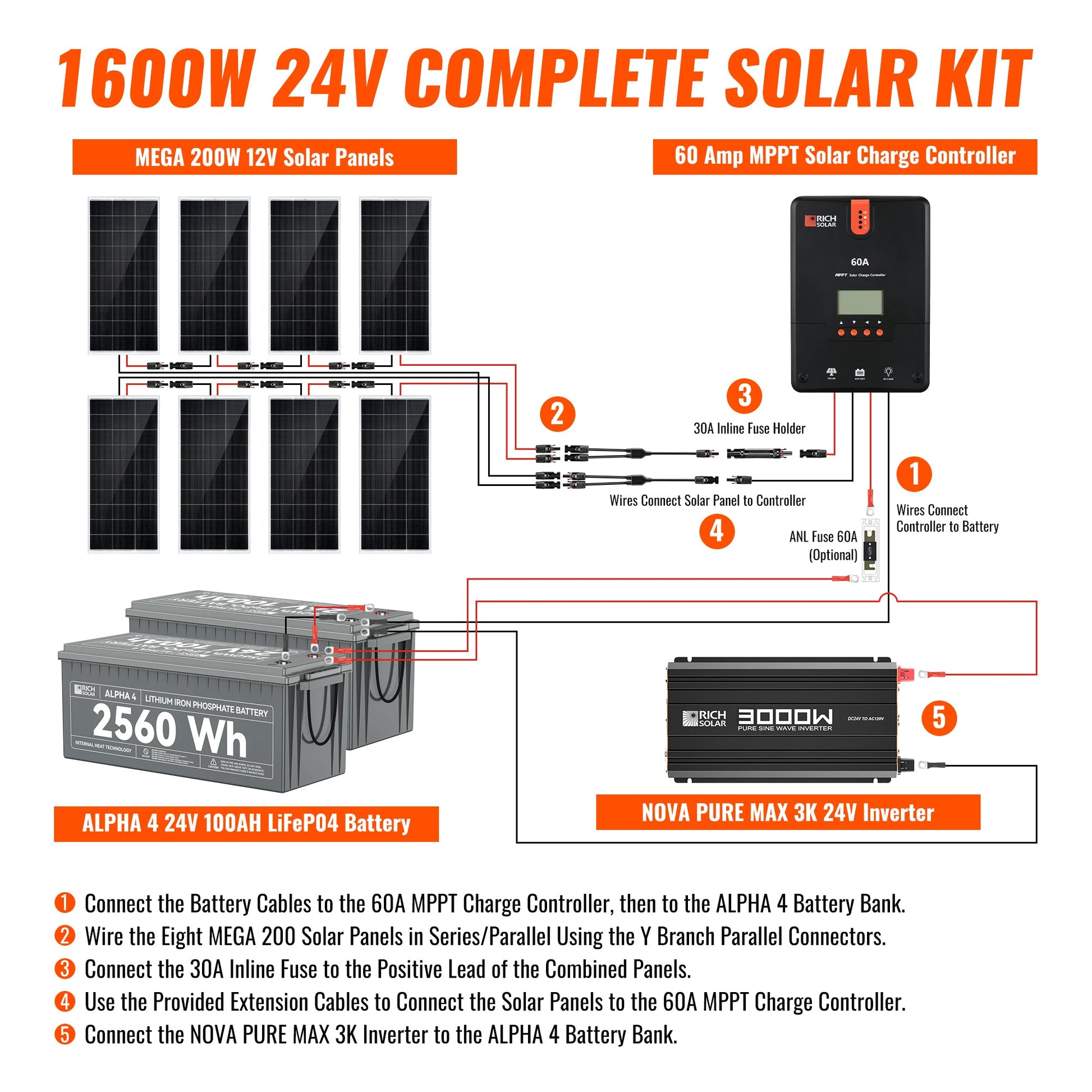

Can all eight panels be placed in one string?
Do not assume that. Design series/parallel wiring so array voltage and current remain within the controller limits under all expected temperatures, using the current manuals.
Product Data
Technical Specifications
| Manufacturer model | 1600 Watt 24V Complete Solar Kit |
|---|
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
8 × MEGA 200 200W 12V Solar Panel (RS-M200)
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
2 × ALPHA 4 24V 100Ah LiFePO4 Battery (RS-B241S)
| Cell Type | LiFePO4 Battery |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 2560Wh |
| Cycle Life | 5000 cycles |
| BMS | 100A |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Discharge Current 10 Seconds | 110A |
| Charge Method | CC/CV |
| Maximum Charge Voltage (CC/CV) | 28.8V |
| Recommend Charge Current | 50A (0.5C) |
| Charge Temperature | 32℉ to 131℉ (0℃ to 55℃) |
| Discharge Temperature | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temperature | 14℉ to 95℉ (-10℃ to 35℃) |
| Heating Function | 200W |
| Internal Heating Starts | < 41℉ (5℃) |
| Internal Heating Stops | > 50℉ (10℃) |
| Net Battery Weight | 48.5lb |
| Size (LxWxH) | 20.9x8.1x8.5in |
| Housing Material | ABS (Flame Retardant Plastic) |
| Protection Class | IP65 |
| Warranty | 5 Years |
1 × NOVA PURE MAX 3K 3000W (3kW) 24V Industrial Pure Sine Wave Inverter (RS-V3P24)
| Model | RS-V3P24 |
|---|---|
| Rated Voltage | 24V DC |
| Continuous Power | 3000W |
| Peak Surge | 6000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 24V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | ＞88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm) |
| Weight | 12.1 (lb) / 5.5 (kg) |
| Certifications | UL 458, CSA C22.2 |
1 × 60 Amp MPPT Solar Charge Controller (RS-MPPT60)
| Rated Battery Current | 60A |
|---|---|
| Rated Load Current | 20A |
| Max Solar Input Voltage | 150V(77℉), 145V(-13℉) |
| Max Solar Input Power | 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Charge Circuit Voltage Drop | ≤0.26V |
| Discharge Circuit Voltage Drop | ≤0.15V |
| Operating Temperature | -31°F to 113°F |
| Max Terminal Size | <11mm |
| Overall Dimensions | 11.2 x 8.1 x 3.7 in |
| Net Weight | 7.94 lb |
Review the current manufacturer manual before installation.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Review the current manufacturer manual for your exact model before installation or use.
