RICH SOLAR 12V 40A DC-DC Battery Charger for RVs, Vans, Boats & Off-Grid Systems Lithium & Lead-Acid
RICH SOLAR 12V 40A DC-DC Battery Charger for RVs, Vans, Boats & Off-Grid Systems Lithium & Lead-Acid
SKU: RS-DC40
- Regular price
- $159.99
- Regular price
- Sale price
- $159.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
Alternator-aware charging for a 12V auxiliary battery
Charge a 12V house battery at up to 40A while the engine is running.

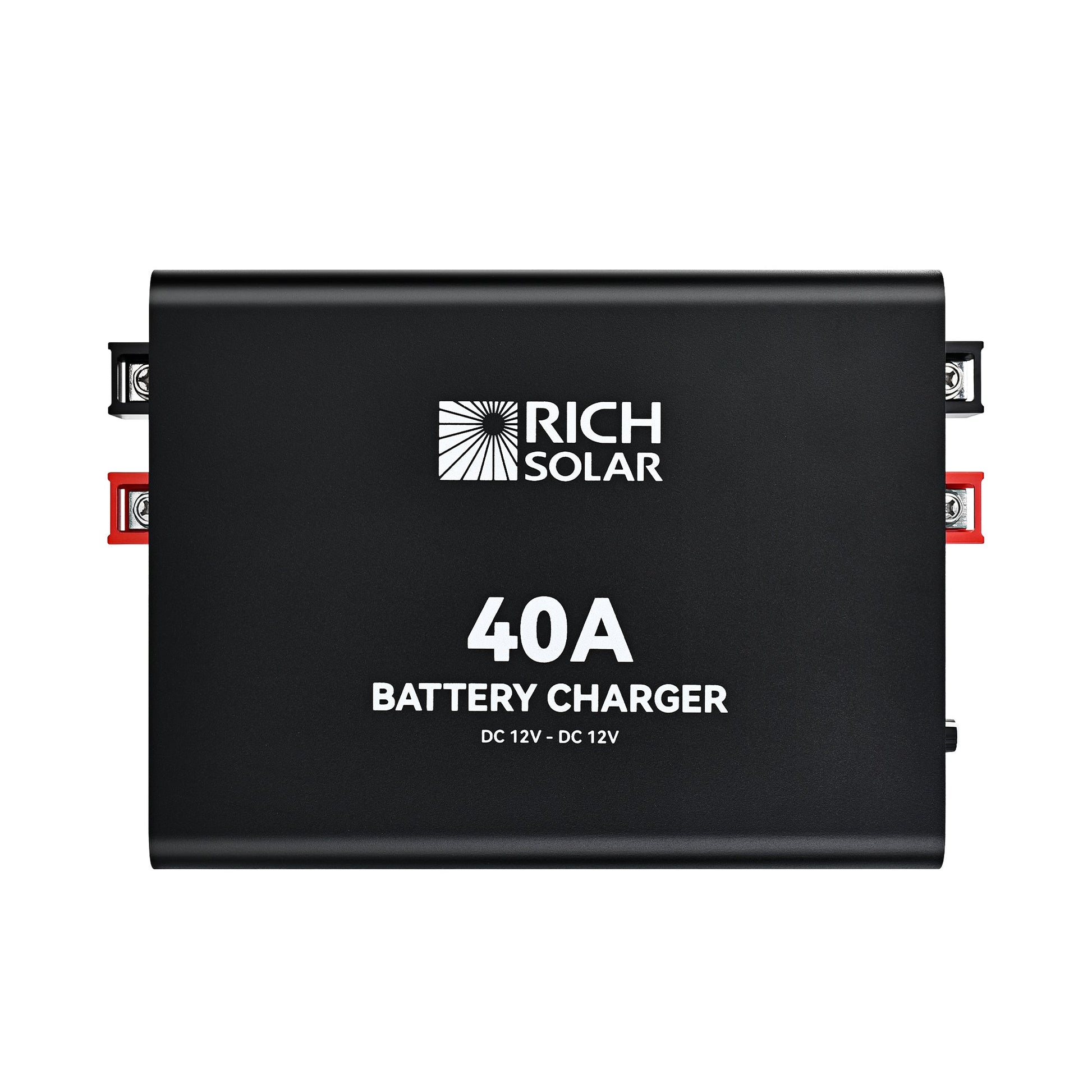

The RICH SOLAR 40A DC-DC Charger is a 12V-to-12V DC-DC charger for RVs, vans, boats and work vehicles. It regulates alternator power for lithium and lead-acid auxiliary batteries, with a 20A low-current mode for systems that need a gentler load on the source.
At a glance
The current and voltage limits that define fit
The published input-current limit is 68A. Confirm alternator capacity, starter-battery voltage behavior, cable loss and the auxiliary battery's charge-current limit before selecting conductors and protection.
System fit
Plan the two batteries, alternator and cable run as one circuit.

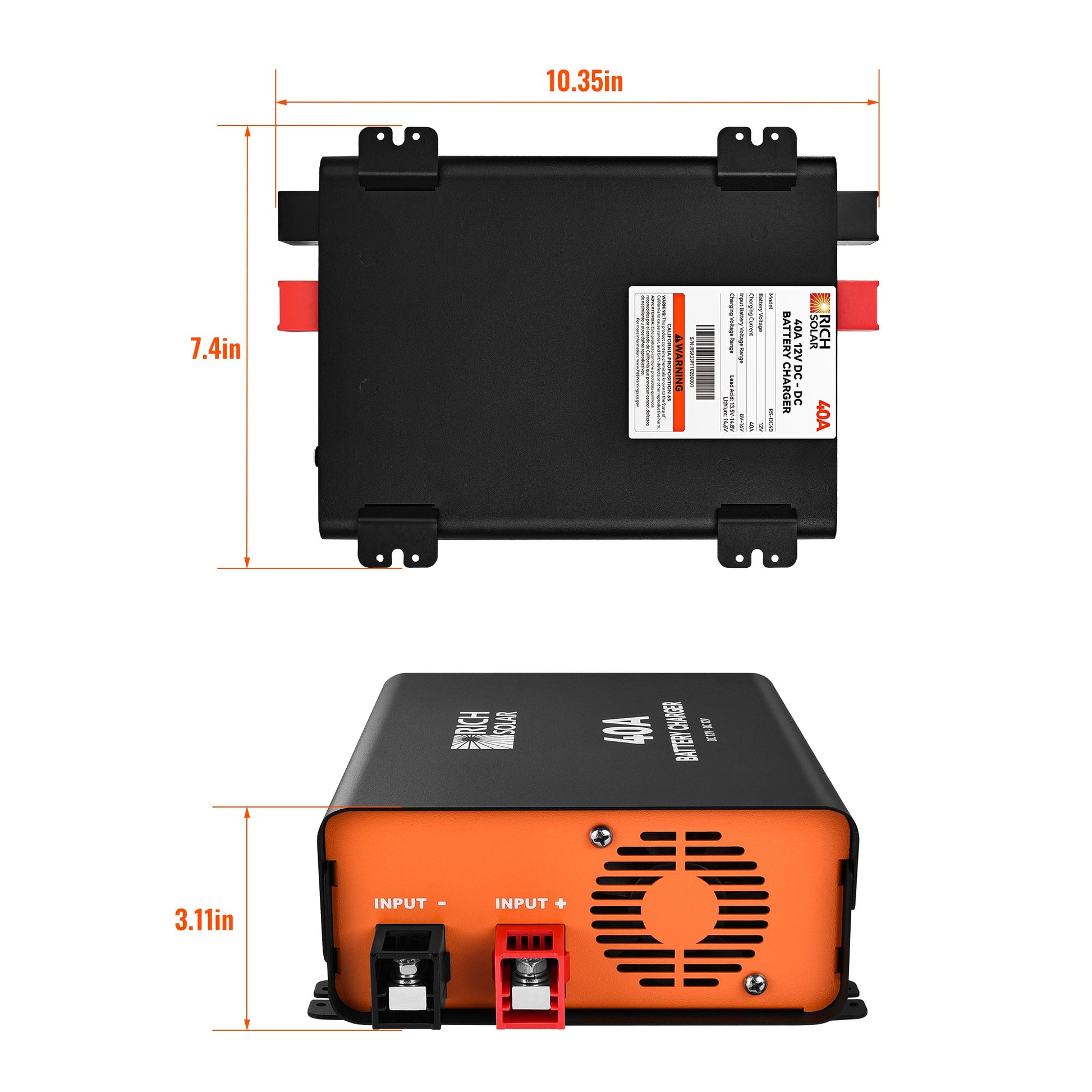

Allow for the 10.3 × 7.4 × 3.1 in enclosure and 4.9 lb weight in a protected, ventilated location. Size both input and output conductors from maximum current, run length, allowable voltage drop, terminal capacity and local installation requirements.
In the box
What this 40A DC-DC Charger listing covers
- 1 × RICH SOLAR 40A DC-DC Charger DC-DC battery charger (RS-DC40)
Battery cables, fuses or breakers, disconnects, D+ wire, low-current control cable, temperature sensor, lugs and installation labor are not listed as included.
Product confidence
Use the current charger and vehicle manuals together
RICH SOLAR lists CE and RoHS compliance for this charger family. Installation, battery settings, alternator integration, environmental limits and warranty remedies follow the current written instructions and policy.
Common questions
40A DC-DC Charger installation questions
Will it work with LiFePO4 batteries?
Yes, a LiFePO4 profile is listed. Confirm the exact battery's required charge voltage, temperature rules and maximum charge current before selecting it.
Why is there a low-current mode?
The 20A mode reduces load on the alternator and wiring. It can be useful when source capacity, cable size or battery acceptance does not support the full 40A setting.
Does it work with a 24V alternator or battery?
No. This model is published for 12V input and a 12V auxiliary battery. A different charger is required for another system voltage.
Are the temperature sensor and control wires included?
The manufacturer lists the D+, low-current control cable and temperature sensor as separate. Read the package contents for the exact accessories ordered.
Product Data
Technical Specifications
| Output Nominal Power | 500W |
|---|---|
| Rated Charge Current | 40A |
| Low Current Mode | 20A |
| Idle Power Consumption | ＜0.6A |
| System Voltage | 12VDC |
| Input Voltage Range | 10-16VDC |
| Input Current Limit | ≤68A |
| Float Voltage | 13.5–13.8V |
| Boost Voltage | 14.4–14.8V |
| Battery Charging Mode | 2-stage for lithium; 3-stage for lead-acid |
| Compatible Battery Types | AGM, Flooded, Gel, Sealed, LiFePO₄ (LFP), Lithium-ion |
| Efficiency | >85% (@ 14VDC, 30% Load) |
| Operating Temperature | -4 °F to 122 °F |
| Dimensions | 10.3 × 7.4 × 3.1 in |
| Weight | 4.9 lb |
| Certifications | CE, RoHS |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-DC40 |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
