A coordinated 24V solar-charging package
Turn 6 MEGA 200 panels into a 1,200W array with 60A MPPT charging.
The RICH SOLAR 1200W Solar Kit combines 6 rigid MEGA 200 panels, a 60A MPPT controller and the listed solar-to-controller and controller-to-battery wiring. It is built for a properly designed 24V battery system in an RV, trailer, boat, cabin or off-grid project.
At a glance
Solar generation and charge control—not a complete AC system
This kit captures and regulates solar energy. Add a compatible 24V battery bank, battery protection and—if AC loads are planned—a correctly sized 24V inverter and AC distribution.
System fit
Use the full array on a properly designed 24V battery bank.
The controller is rated for up to 800W of PV on 12V and 1,600W on 24V. The 1,200W array therefore exceeds its 12V solar-input limit. Follow the current 60A controller manual for string voltage, current, conductor size, charging profile and protection.

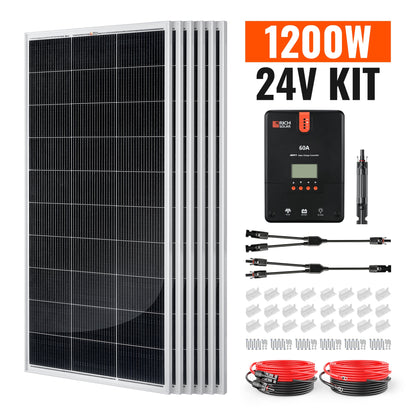

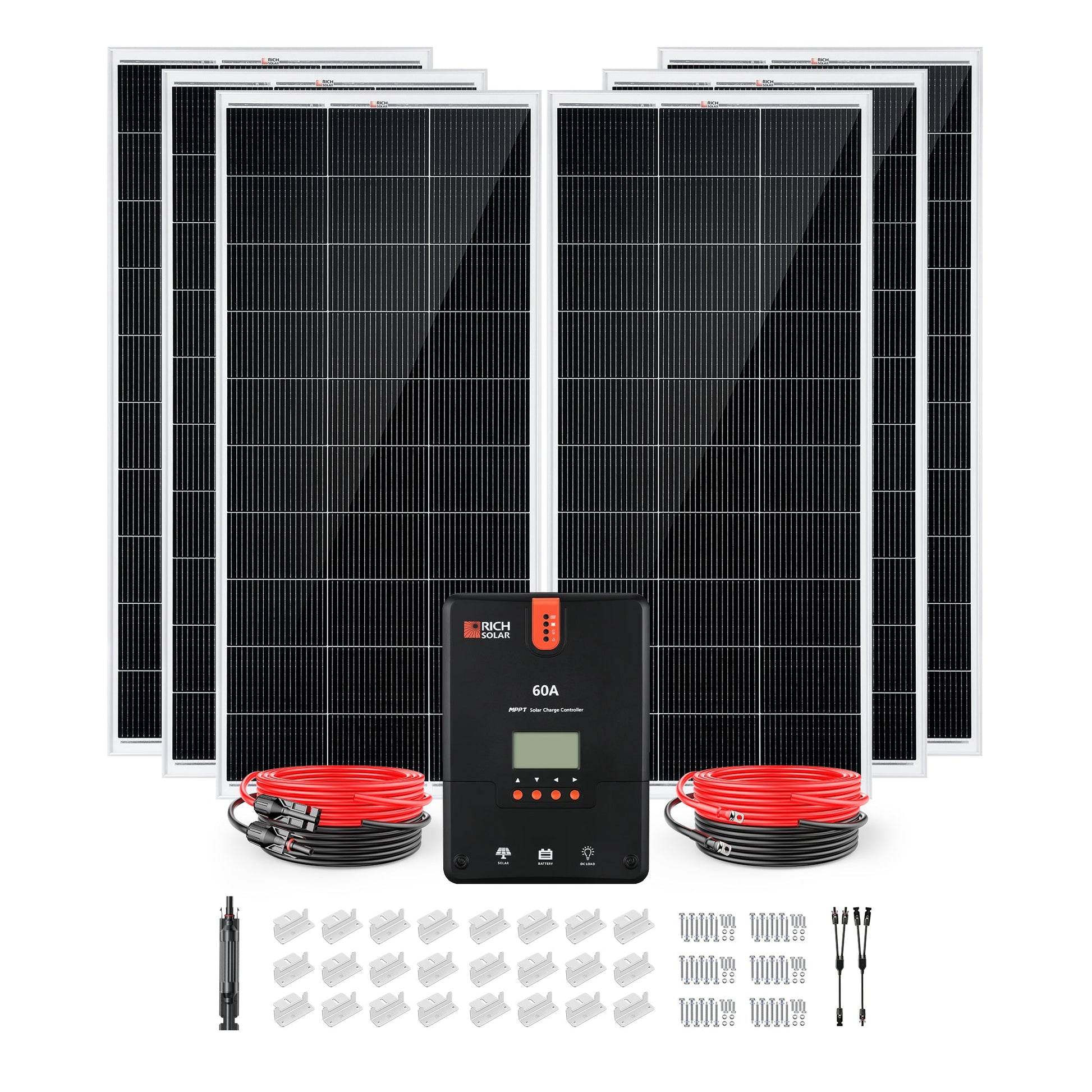

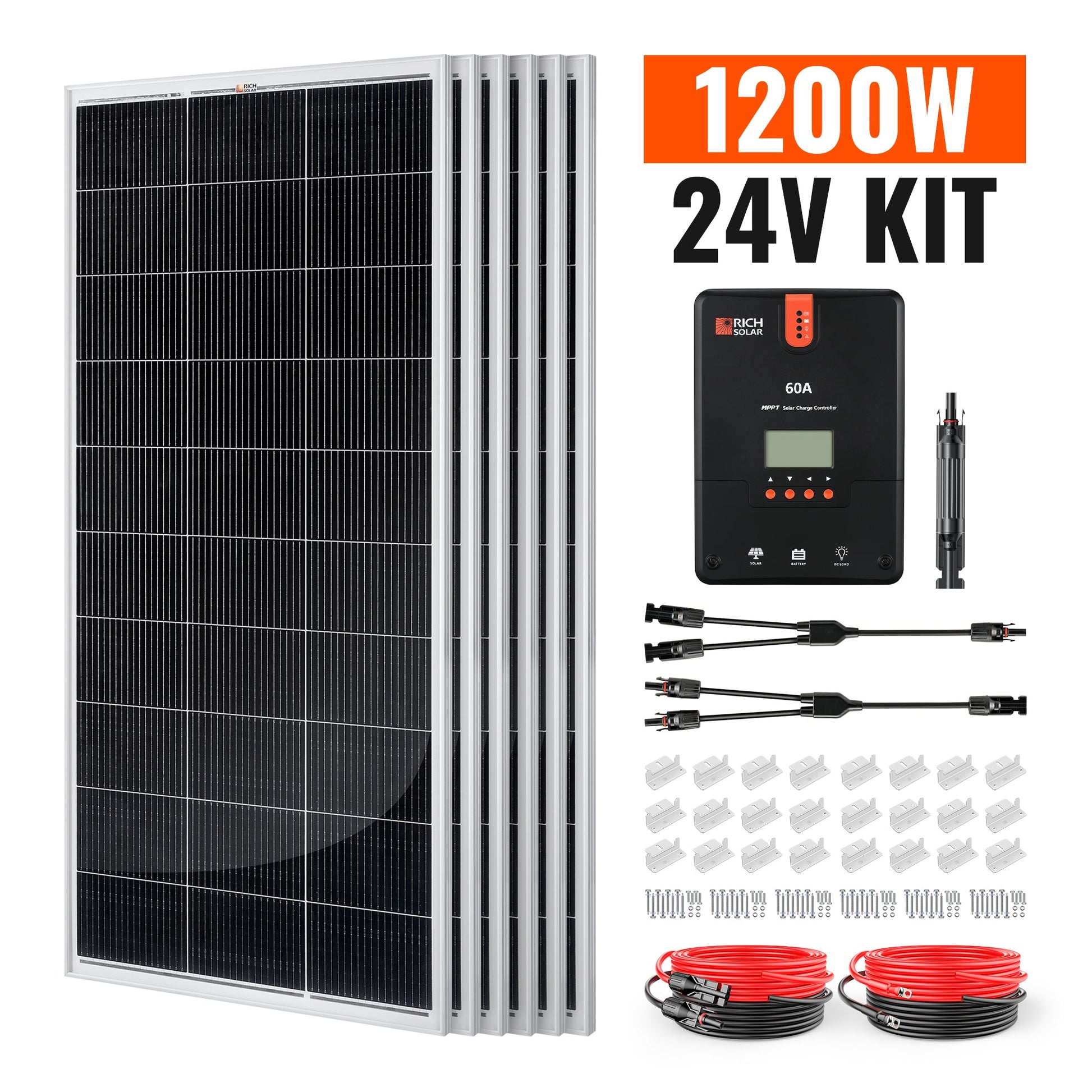

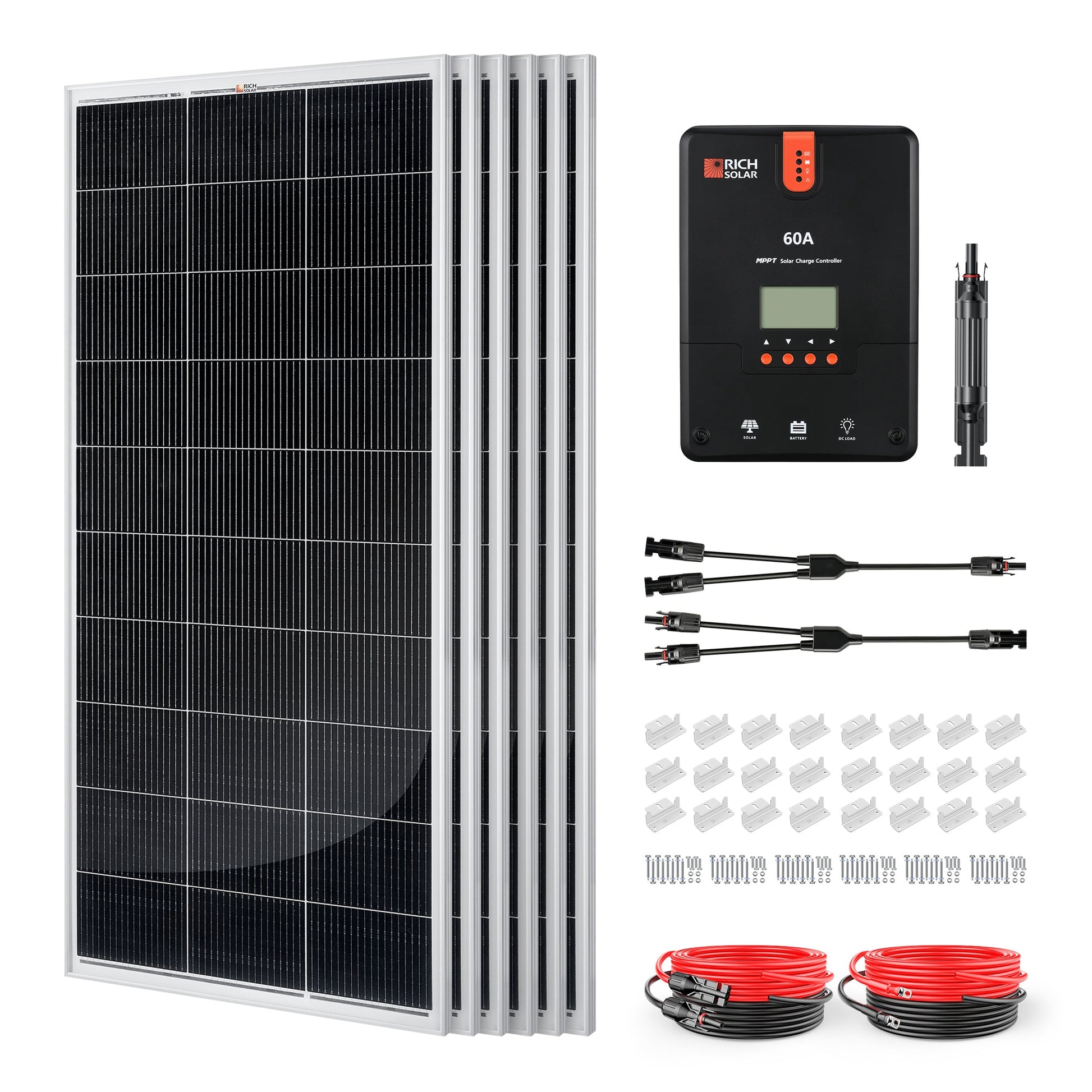

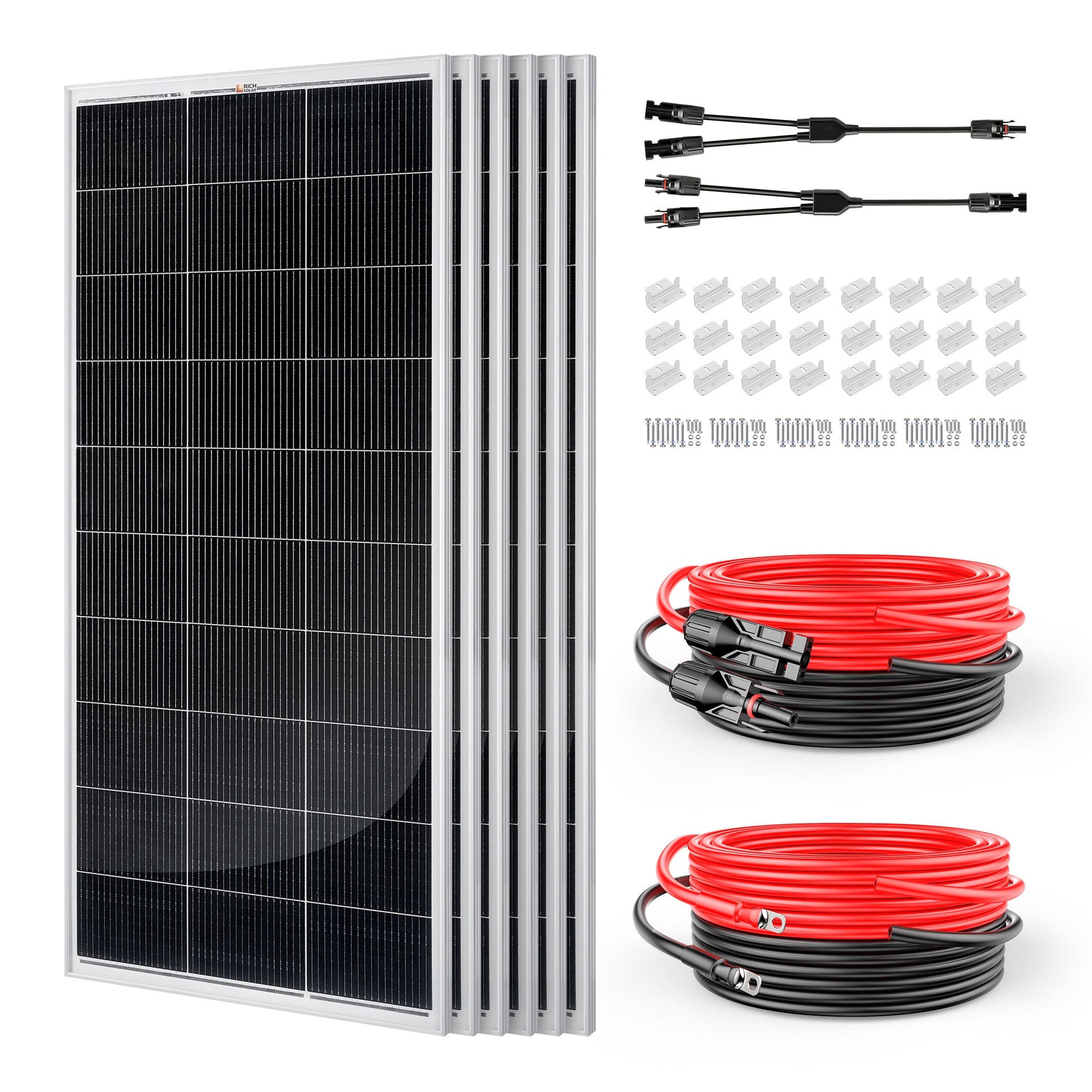

In the box
What RICH SOLAR lists for RS-K12004
- 6 × MEGA 200W panels (RS-M200)
- 1 × 60A MPPT solar charge controller (RS-MPPT60)
- 1 × 20 ft red and black 10 AWG solar cable pair (RS-20101)
- 1 × 10 ft red and black 8 AWG battery cable pair (RS-810)
- Z-bracket hardware for the 6-panel kit (RS-ZB4C)
- 1 × 30A inline fuse holder with fuse (RS-SC30F)
- 1 × Y-branch parallel adapter (RS-Y2)
RICH SOLAR’s bracket wording is ambiguous about physical piece count. If that count affects your install plan, contact Torven Power before ordering and we will confirm the hardware supplied with the kit.
Product confidence
Coverage follows the panels and controller
RICH SOLAR lists 25-year power-output and 10-year workmanship coverage for the MEGA 200 panels, plus a two-year warranty for the 60A MPPT controller. Each component remains subject to its current written eligibility, installation and claim terms.
Common questions
1200W kit planning questions
Does this kit include a battery or inverter?
No. It includes the listed solar panels, charge controller, basic cable pairs, bracket hardware, fuse holder and parallel adapter. The storage and AC-power portions of the system are separate.
Can I use the full array on a 12V battery?
Not through this controller at the full 1,200W rating. The RS-MPPT60 is limited to 800W of PV on a 12V system and 1,600W on a 24V system. Use the 24V design described for this kit.

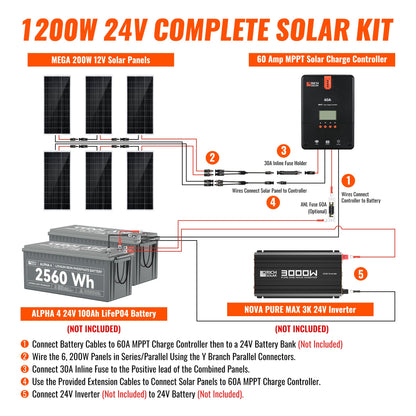

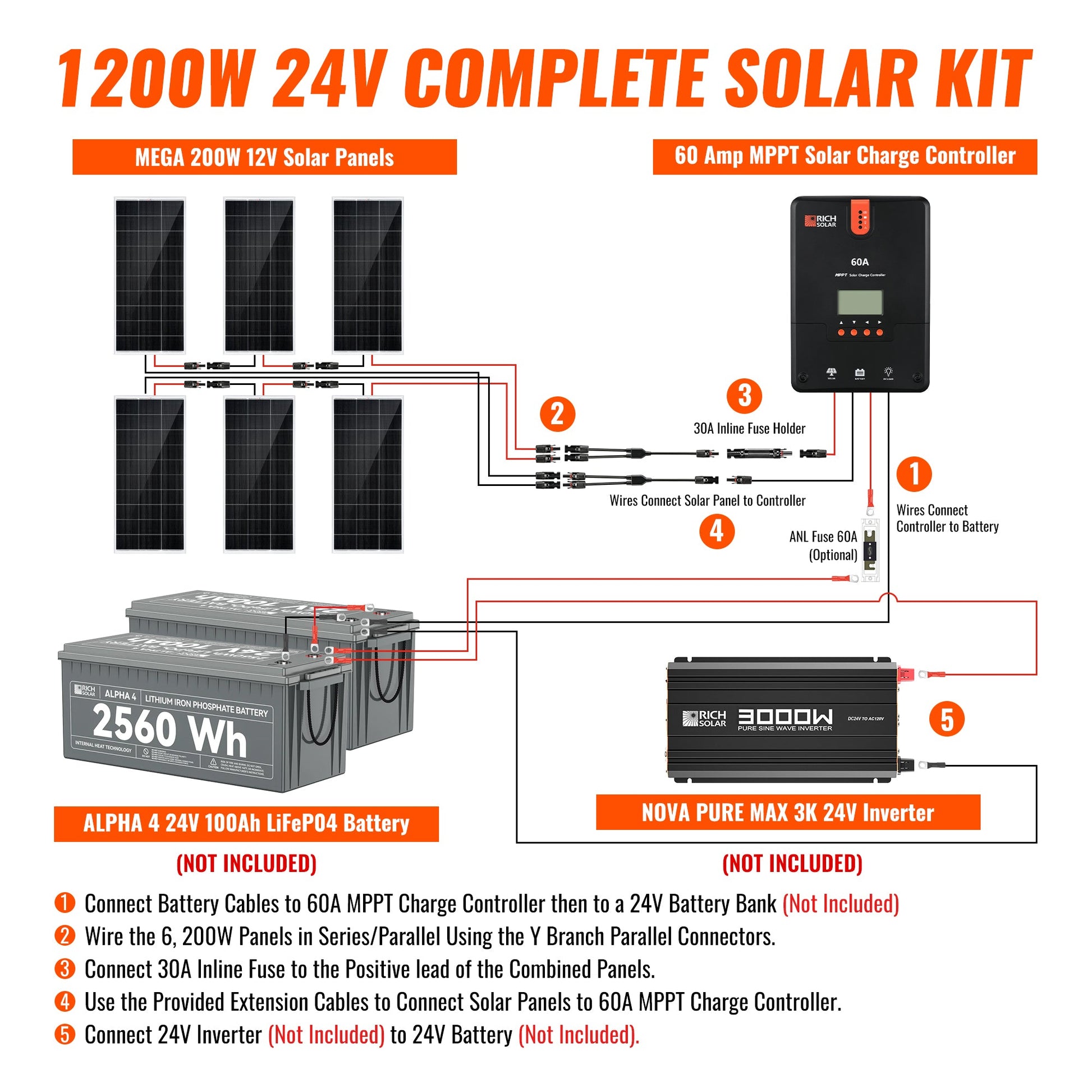

How should the panels be wired?
Series and parallel counts must keep cold-weather open-circuit voltage, operating voltage and array current inside the controller limits. Follow the current manual rather than choosing a layout from panel count alone.
Will the array always make its rated wattage?
No. 1,200W is the combined standard-test rating. Actual production changes with sun angle, temperature, clouds, shading, dirt, wiring and charge-controller conditions.
Product Data
Technical Specifications
| Manufacturer model | 1200 Watt Solar Kit |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Standard Kit | RS-K12004 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
6 × MEGA 200 200W 12V Solar Panel (RS-M200)
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
1 × 60 Amp MPPT Solar Charge Controller (RS-MPPT60)
| Rated Battery Current | 60A |
|---|---|
| Rated Load Current | 20A |
| Max Solar Input Voltage | 150V(77℉), 145V(-13℉) |
| Max Solar Input Power | 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Charge Circuit Voltage Drop | ≤0.26V |
| Discharge Circuit Voltage Drop | ≤0.15V |
| Operating Temperature | -31°F to 113°F |
| Max Terminal Size | <11mm |
| Overall Dimensions | 11.2 x 8.1 x 3.7 in |
| Net Weight | 7.94 lb |
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
Review the current manufacturer manual for your exact model before installation or use.
