RICH SOLAR
RICH SOLAR 1200W 24V Complete Solar Kit
RICH SOLAR 1200W 24V Complete Solar Kit
SKU: RS-CK1200
- Regular price
- $4,499.99
- Regular price
- Sale price
- $4,499.99
- Unit price
- per
Couldn't load pickup availability
In stock — available to order
- Free standard shipping on eligible Lower-48 orders. See shipping details
- 30-day return requests for eligible items after delivery. Review the return policy
- Price Match Guarantee for qualifying identical offers. Check eligibility
- Warranty information is listed in this product's details.
24V storage with a six-panel array
Build around 1,200W of solar, 5.12kWh of LiFePO4 energy and 3,000W of AC output.
The RICH SOLAR RS-CK1200 combines six MEGA 200 panels, two ALPHA 4 24V 100Ah batteries, a 60A MPPT controller and a NOVA PURE MAX 3K inverter. It targets RV, tiny-home, cabin and selected-backup projects that need a native 24V system with more reserve than a compact mobile kit.
At a glance
The numbers that define this system
Daily solar yield and battery runtime vary. Build an energy budget, account for start-up surge and conversion losses, then verify string design, protection, wiring and code requirements.
System fit
A middle ground between compact RV kits and larger stationary systems.
This kit can be a good fit when six panels and a 24V bank meet the project’s space, runtime and power requirements. It remains a component system that must be correctly installed and commissioned.

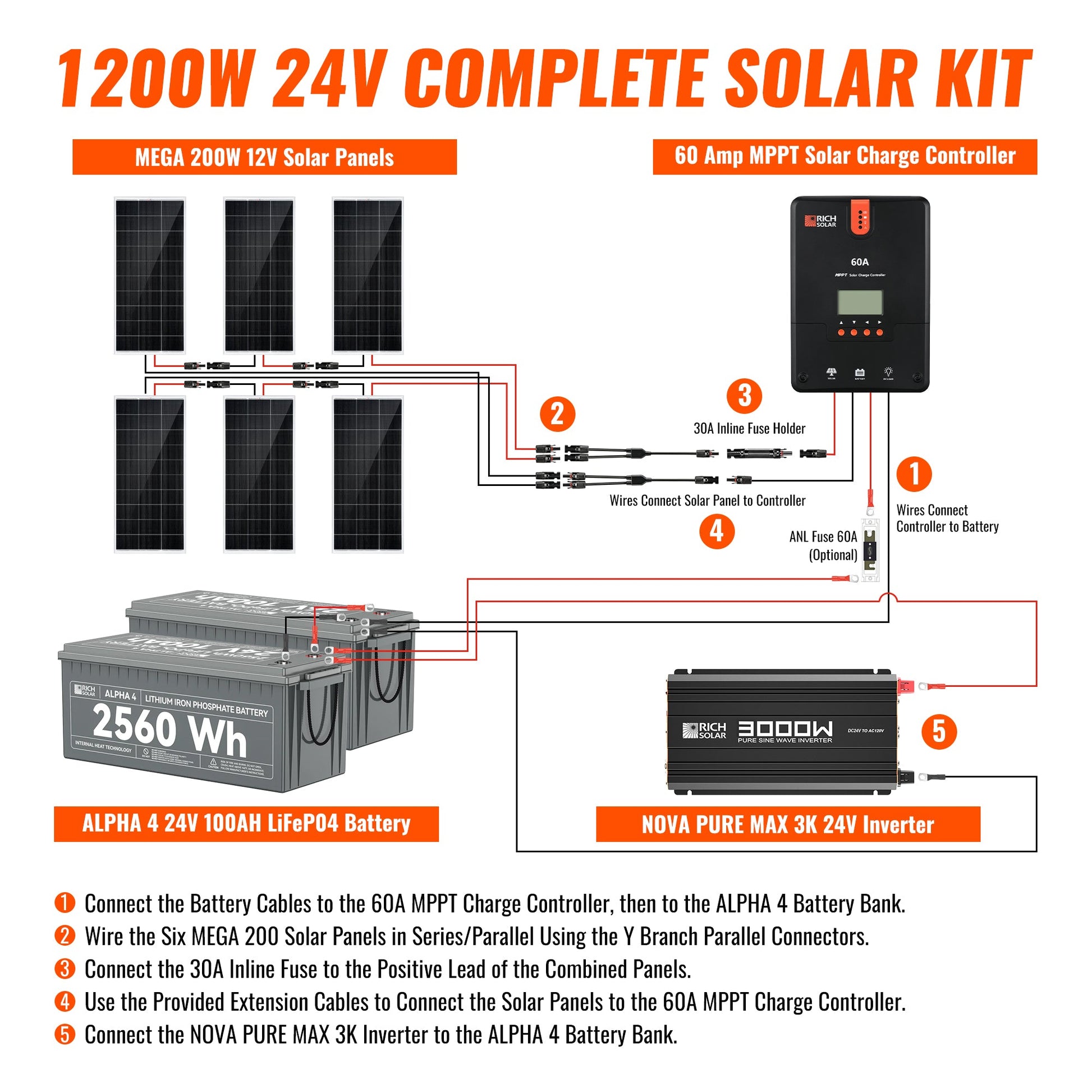

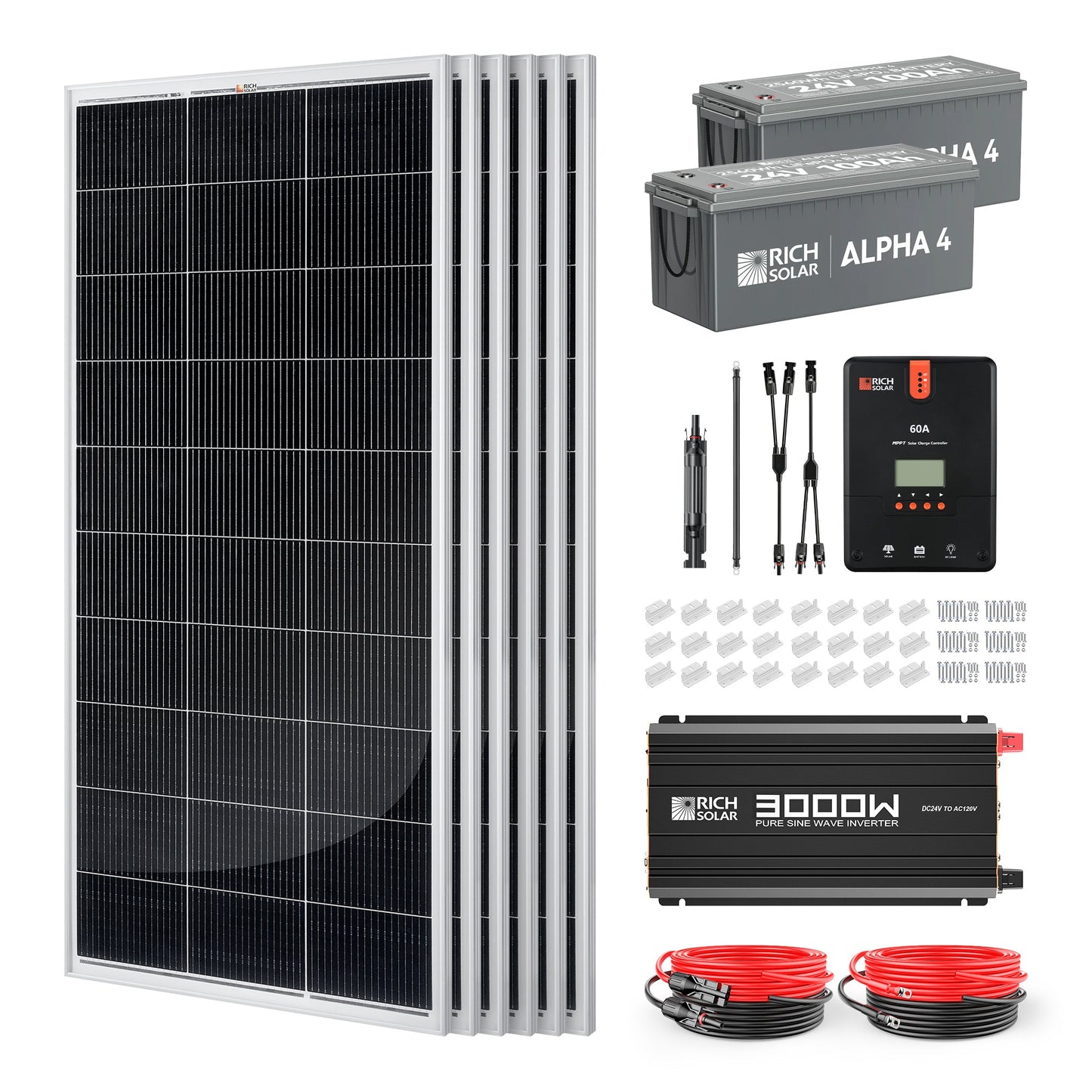

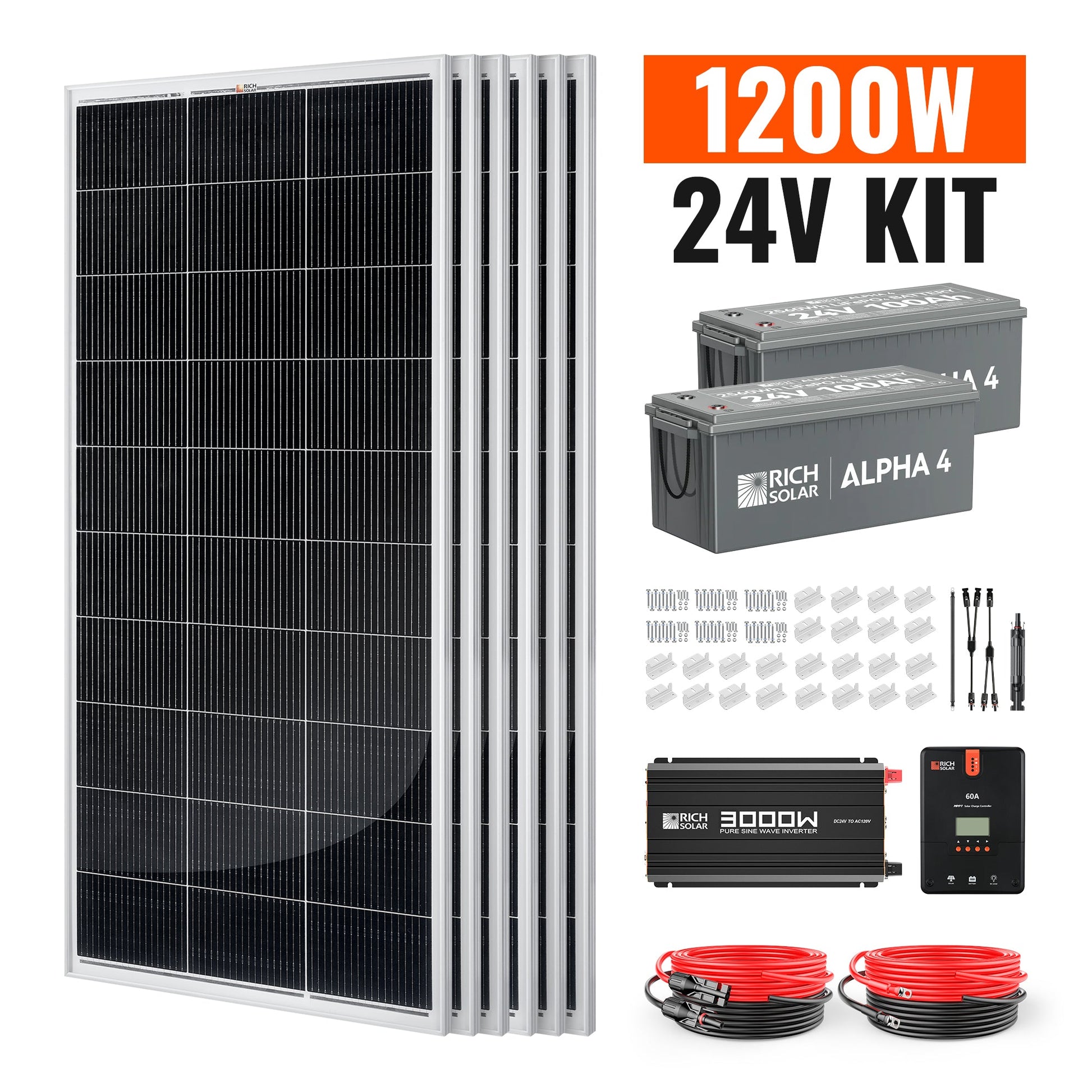

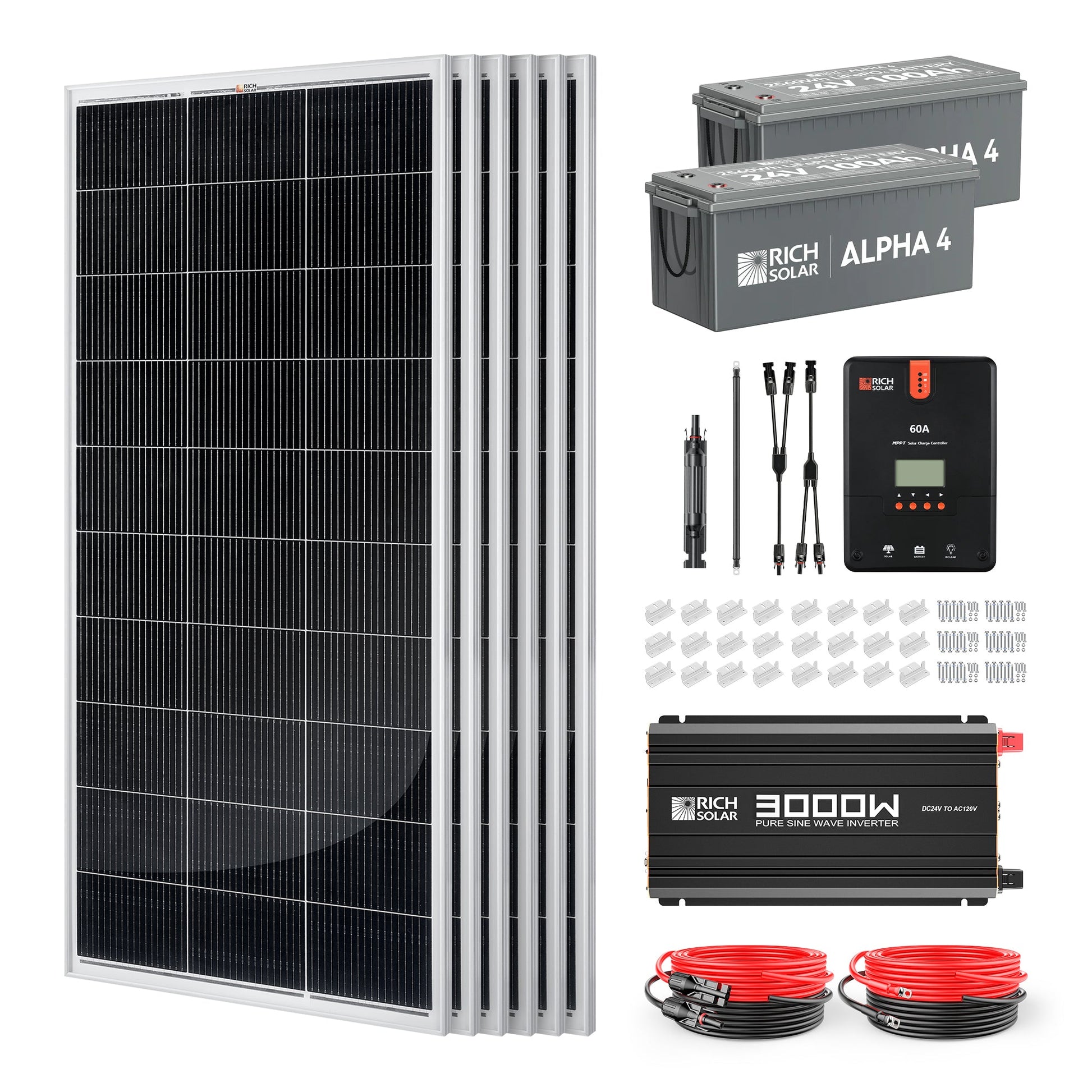

In the box
What the current product configuration includes
- 6 × MEGA 200W 12V solar panels (RS-M200)
- 2 × ALPHA 4 24V 100Ah LiFePO4 batteries (RS-B241S)
- 1 × NOVA PURE MAX 3K 24V pure sine wave inverter (RS-V3P24)
- 1 × 60A MPPT solar charge controller (RS-MPPT60)
- 6 × Z-bracket sets, one 30A inline fuse holder and one Y-branch parallel adapter
- Published inverter, battery, panel-to-controller and controller-to-battery cable sets
Confirm the current component list and every delivered part number before installation; site-specific distribution, disconnects, grounding and transfer equipment are not listed as included.
Product confidence
Manufacturer coverage varies across the kit components.
RICH SOLAR’s current written warranties for the MEGA panels, ALPHA batteries, controller and inverter govern coverage. Review duration, registration, exclusions and remedies for each component.
Common questions
Before you build around this product
What is the difference between this and the 1600W complete kit?
Both use two ALPHA 4 batteries, a 3,000W 24V inverter and a 60A controller. This kit includes six MEGA 200 panels for 1,200W, while the larger kit includes eight for 1,600W.
Can it run a mini-split?
Possibly, but confirm the exact unit’s continuous watts, start-up behavior and required runtime. The inverter rating alone does not determine whether the battery bank is large enough.
Are the batteries wired in parallel?
The included batteries are already native 24V units. Any multi-battery connection must follow the current ALPHA 4 manual, use matched supported batteries and have properly sized protection and cabling.
Does it include installation and permitting?
No. Equipment and the published kit components are included; labor, permits and site-specific hardware are not listed as included.
Product Data
Technical Specifications
| Manufacturer model | 1200 Watt 24V Complete Solar Kit |
|---|---|
| Listed SKU count | 1 |
Available configurations
| Option | SKU |
|---|---|
| Single configuration | RS-CK1200 |
Included major-component specifications: panel, controller, inverter, and battery ratings are shown below when those products are part of this kit. Minor cables, protection devices, connectors, and mounting hardware remain listed in the Description tab.
6 × MEGA 200 200W 12V Solar Panel (RS-M200)
| Maximum Power(Pmax) | 200W |
|---|---|
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
2 × ALPHA 4 24V 100Ah LiFePO4 Battery (RS-B241S)
| Cell Type | LiFePO4 Battery |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 2560Wh |
| Cycle Life | 5000 cycles |
| BMS | 100A |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Discharge Current 10 Seconds | 110A |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommend Charge Current | 50A (0.5C) |
| Charge Temperature | 32℉ to 131℉ (0℃ to 55℃) |
| Discharge Temperature | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temperature | 14℉ to 95℉ (-10℃ to 35℃) |
| External Power Draw | 100W |
| Internal Heating Starts | < 41℉ (5℃) |
| Internal Heating Stops | > 50℉ (10℃) |
| Net Battery Weight | 48.5lb |
| Size (LxWxH) | 20.9x8.1x8.5in |
| Housing Material | ABS (Flame Retardant Plastic) |
| Protection Class | IP65 |
| Warranty | 5 Years |
1 × NOVA PURE MAX 3K 3000W (3kW) 24V Industrial Pure Sine Wave Inverter (RS-V3P24)
| Model | RS-V3P24 |
|---|---|
| Rated Voltage | 24V DC |
| Continuous Power | 3000W |
| Peak Surge | 6000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 24V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | ＞88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch |
| Operating Temperature | 14°F to 122°F |
| Dimensions | 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm) |
| Weight | 12.1 (lb) / 5.5 (kg) |
| Certifications | UL 458, CSA C22.2 |
1 × 60 Amp MPPT Solar Charge Controller (RS-MPPT60)
| Rated Battery Current | 60A |
|---|---|
| Rated Load Current | 20A |
| Max Solar Input Voltage | 150V(77℉), 145V(-13℉) |
| Max Solar Input Power | 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Charge Circuit Voltage Drop | ≤0.26V |
| Discharge Circuit Voltage Drop | ≤0.15V |
| Operating Temperature | -31°F to 113°F |
| Max Terminal Size | <11mm |
| Overall Dimensions | 11.2 x 8.1 x 3.7 in |
| Net Weight | 7.94 lb |
Review the current manufacturer manual for your exact model before installation or use.
Manufacturer Documentation
Official Manuals, Specifications & Certifications
Use these current RICH SOLAR documents for installation, compatibility, limits, and revision-specific details. The delivered product label and its exact manual are the controlling sources.
