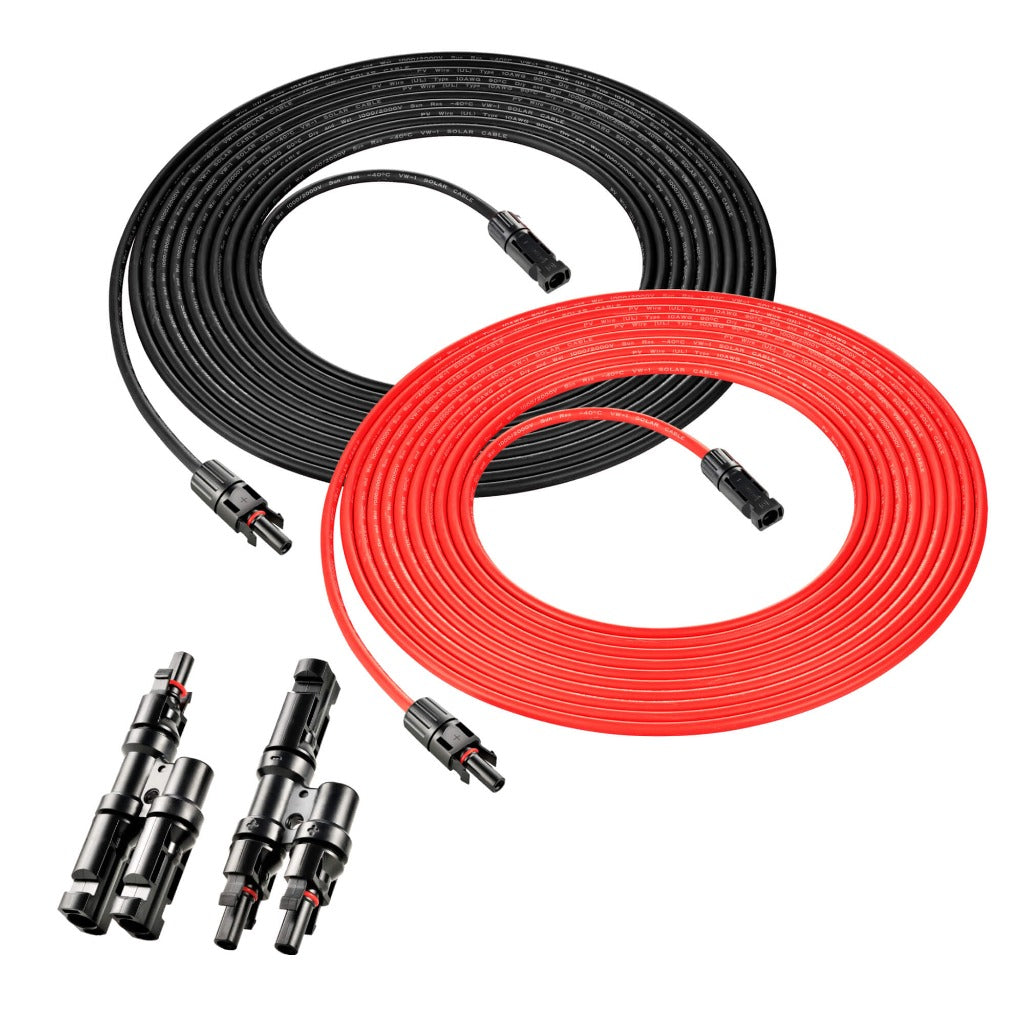

• RICH SOLAR 10AWG red and black solar extension cables with Y-branch parallel connectors

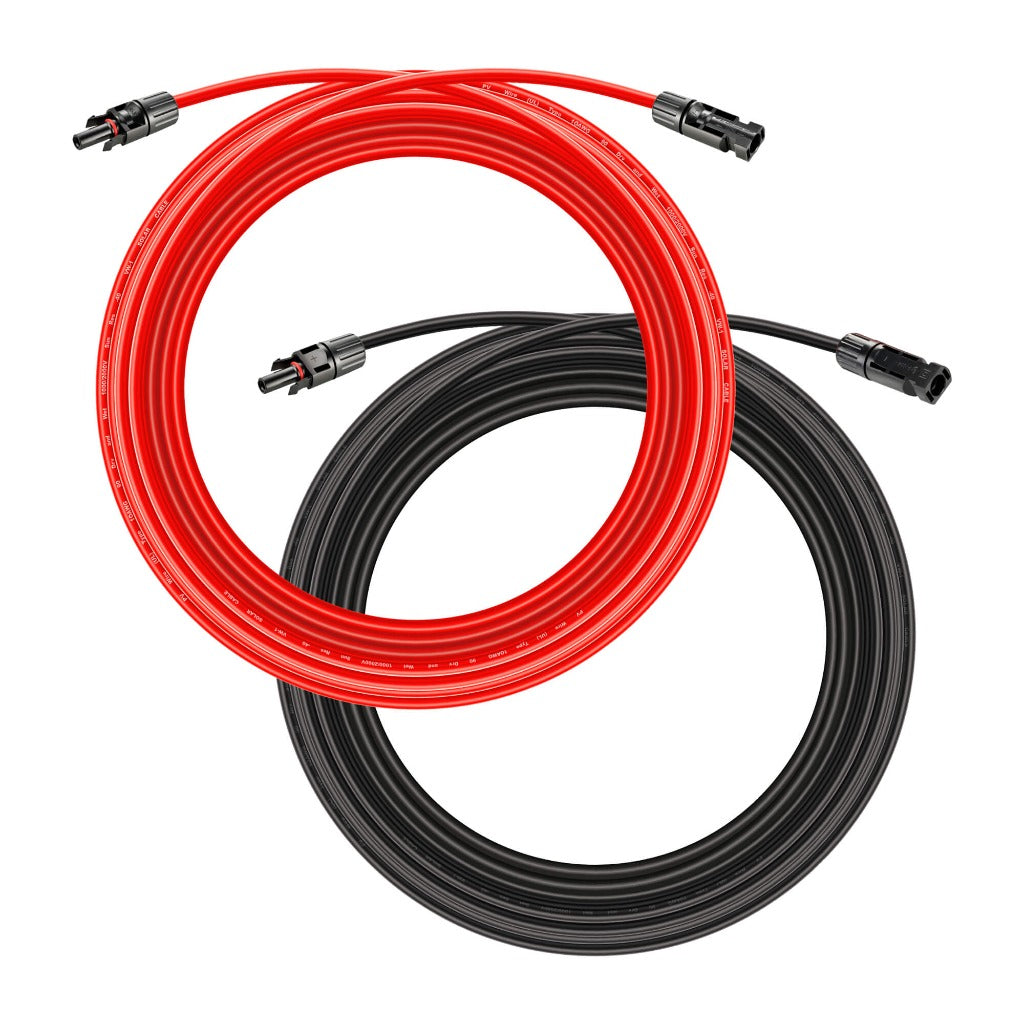

  • RICH SOLAR 10AWG red and black solar extension cable pair with solar connectors

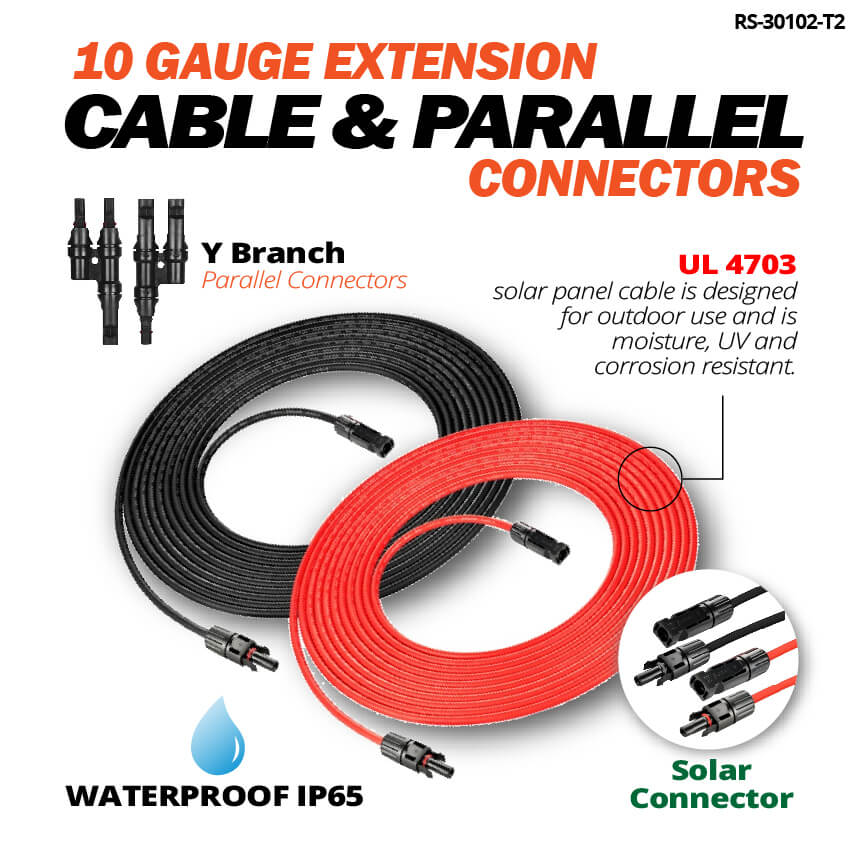

  • Feature graphic for RICH SOLAR 10AWG extension cables and IP65 Y-branch parallel connectors

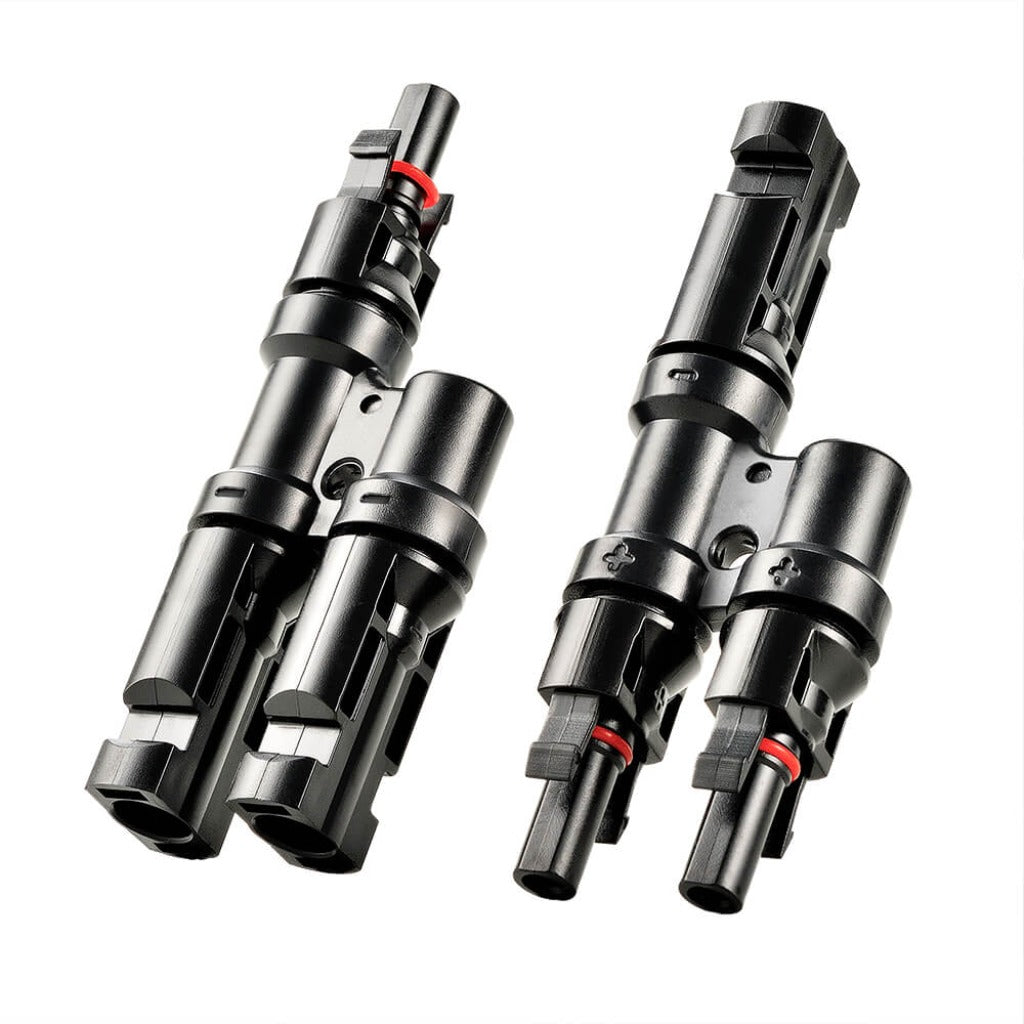

  • Close-up of the RICH SOLAR positive and negative Y-branch solar parallel connectors

RICH SOLAR

RICH SOLAR 10 Gauge Solar Panel Extension Cable with Male and Female Solar Connector Ends and Parallel Connectors Pair of 10AWG Red and Black Extension Wire and Parallel Connectors

RICH SOLAR 10 Gauge Solar Panel Extension Cable with Male and Female Solar Connector Ends and Parallel Connectors Pair of 10AWG Red and Black Extension Wire and Parallel Connectors

SKU: RS-30102T2

$66.99
$66.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

Extension wiring plus one 2-to-1 parallel branch set

Choose 30 or 50 feet of 10AWG cable and combine two panel branches.

This RICH SOLAR package pairs red and black 10AWG solar-extension cables with one set of 2-to-1 parallel connectors. It is offered in 30- and 50-foot lengths for systems that need to combine two compatible panel branches and carry the resulting current to downstream equipment.

RICH SOLAR 10AWG solar extension cable and parallel connector kit

At a glance

The package changes both wiring and array current

10AWGCable gauge
30 ft or 50 ftLength options
One 2-to-1 pairBranch format
IP65Published ingress
Parallel wiring adds current, not voltage

Two matched panel branches in parallel keep the branch voltage similar while their current adds. Confirm combined operating and short-circuit current against the cable, connectors, controller and protection before assembly.

RICH SOLAR 10AWG cable and 2-to-1 connector features

Why it stands out

Core parts for a planned two-branch extension

Matched branch pairPositive and negative 2-to-1 connectors provide the two sides needed for a correctly polarized parallel connection.
Two practical cable lengthsChoose 30 or 50 feet after measuring the routed path and calculating voltage drop at the combined current.
Outdoor PV cableThe manufacturer lists 10AWG UL 4703 cable with moisture, UV and corrosion resistance for correctly installed outdoor service.

System fit

Verify both panels are suitable for parallel operation.

Use compatible panel electrical characteristics and identical connector systems. Calculate combined current, conductor loss, connector capacity, controller input limits and required branch or array protection before connecting the system.

Strong use casesTwo compatible panel branches feeding a controller or combiner through a measured 30- or 50-foot extension.
Confirm before orderingPanel Vmp/Voc/Imp/Isc, connector family and polarity, combined current, controller limits, fuse requirements, cable route and voltage drop.

In the box

What the selected package includes

  • 1 × red 10AWG extension cable
  • 1 × black 10AWG extension cable
  • 1 × positive/negative 2-to-1 parallel connector pair

Solar panels, charge controller, extra branch fuses, disconnects, cable clips, roof entries and installation labor are not listed as included.

Product confidence

Build the parallel circuit from current—not connector count

Connector capacity, cable sizing and protection must fit the sum of the branch currents. Follow the current panel, controller and connector instructions for the completed array.

Common questions

Parallel-extension kit questions

What happens to voltage and current in parallel?

Voltage stays near one branch's operating voltage while branch current adds. Use the exact panel ratings to calculate the combined circuit.

Can I combine different solar panels?

Only when their electrical characteristics and connector systems are suitable for the planned configuration. Mismatched panels can reduce output or exceed equipment limits.

Does the package include branch fuses?

No branch fuses are listed. Determine whether they are required from panel maximum-series-fuse ratings, parallel fault current and local requirements.

Should I choose 30 or 50 feet?

Choose the shortest length that reaches safely after routing, then verify voltage drop at the combined array current.
