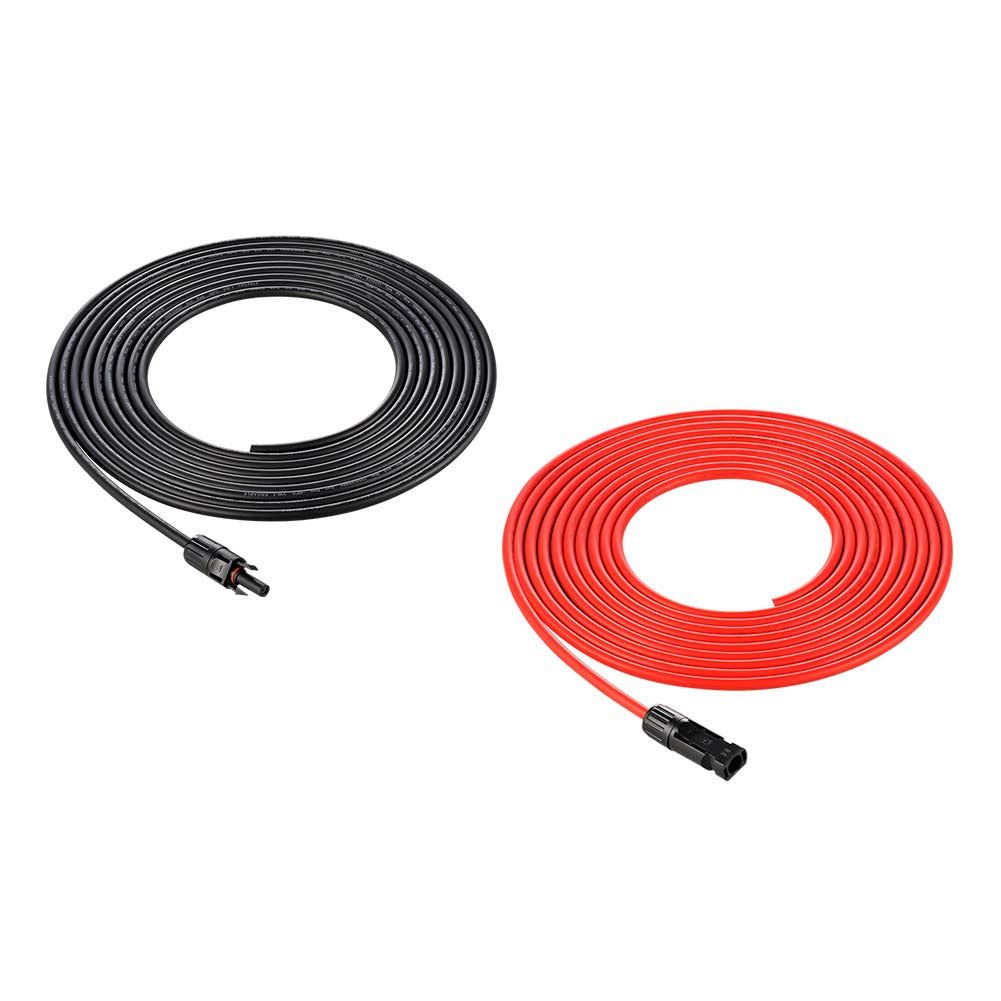

• RICH SOLAR 20-foot 10AWG red and black solar extension cables with connectors

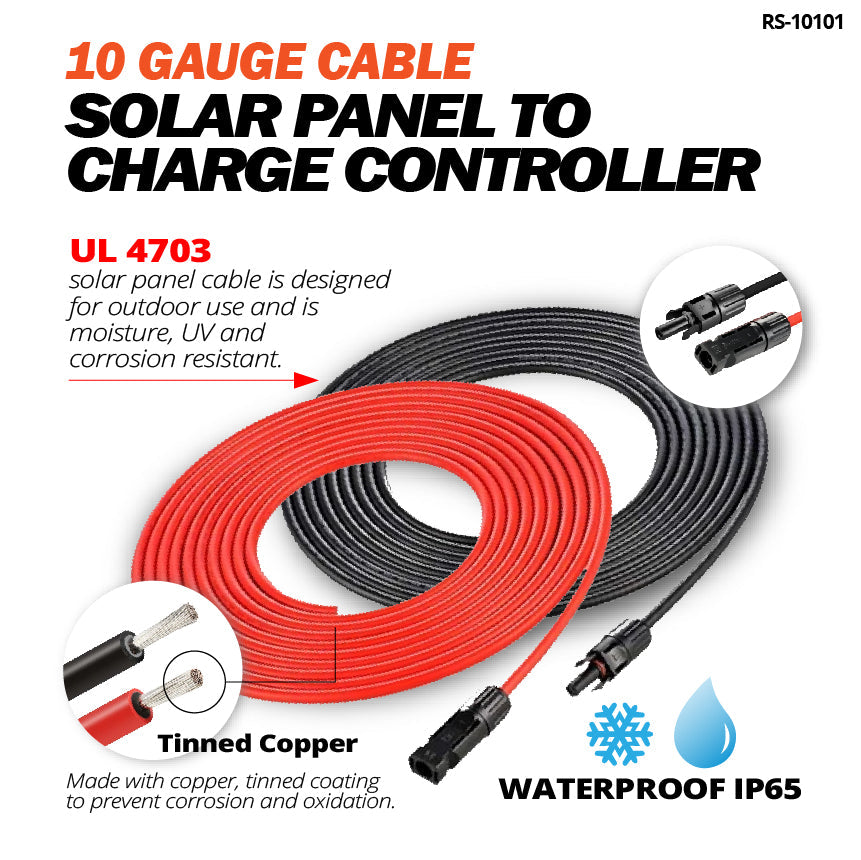

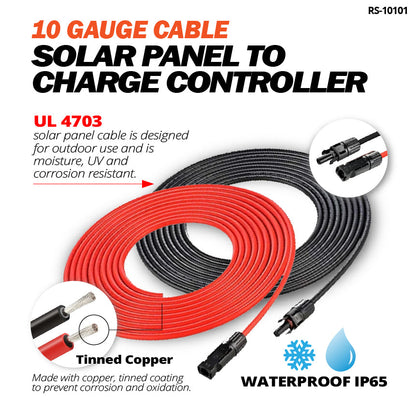

  • Feature graphic for RICH SOLAR 10AWG solar extension cables with tinned copper and IP65 connectors

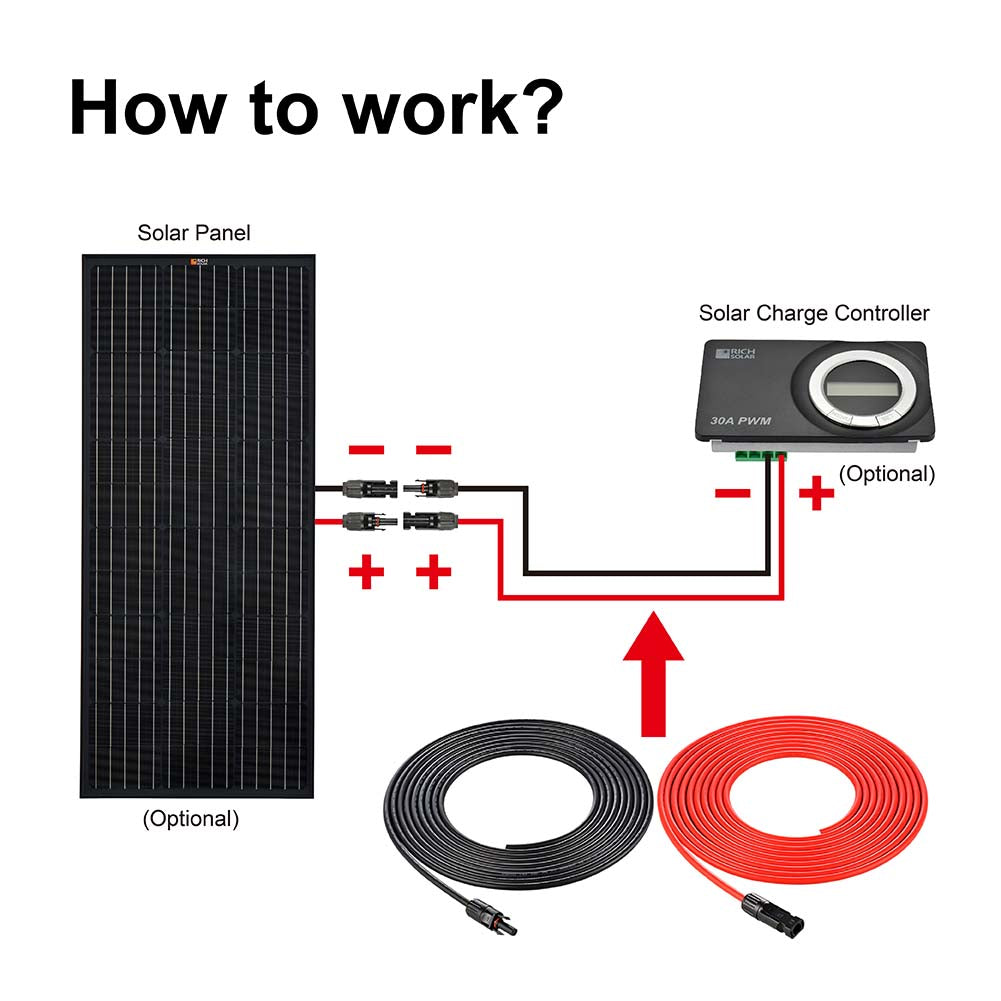

  • Connection diagram showing RICH SOLAR extension cables between a solar panel and charge controller

RICH SOLAR

RICH SOLAR 10 Gauge Extension Cable to Connect Solar Panel to Charge Controller Pair of 10AWG Red and Black Extension Wires for Solar Panel to Charge Controller

RICH SOLAR 10 Gauge Extension Cable to Connect Solar Panel to Charge Controller Pair of 10AWG Red and Black Extension Wires for Solar Panel to Charge Controller

SKU: RS-10101

$28.99
$28.99
View Cart

In stock — available to order

Need help before ordering? Call 888-495-5870 Contact our support team

A panel-to-controller pair with one connectorized end

Route 10AWG red-and-black solar cable 10, 20 or 30 feet to a controller.

This RICH SOLAR cable pair is built for the transition from solar-panel connectors to a charge controller's wire terminals. Each red and black 10AWG conductor has a solar connector on one end and a bare controller end, with 10-, 20- and 30-foot choices shown on the Torven listing.

RICH SOLAR 10AWG solar-panel-to-controller cable pair

At a glance

The end treatment defines this cable

10AWGWire gauge
10 / 20 / 30 ftLength options
Solar connectorPanel end
Bare conductorController end
The bare end must fit the controller terminal

Confirm stripped length, conductor class, ferrule guidance, polarity, terminal capacity and torque in the controller manual. Never insert an oversized or poorly prepared conductor into a terminal.

RICH SOLAR panel connector and bare controller cable ends

Why it stands out

A purpose-built transition from panel leads to screw terminals

Two polarity conductorsRed and black cables keep the positive and negative paths organized from the panel connection to the controller.
Outdoor PV constructionThe manufacturer lists UL 4703 10AWG cable with moisture, UV and corrosion resistance.
Three routed lengthsChoose the shortest listed pair that reaches the controller while allowing cable support, bend radius and service access.

System fit

Match the array current and controller terminal together.

Calculate total circuit current, conductor length and voltage drop, then confirm the controller accepts 10AWG cable and the panel-end connectors match in family and polarity. Add protection and disconnects required by the complete array.

Strong use casesRV, van, boat, cabin and compact ground arrays using a terminal-style controller and compatible solar-panel connectors.
Installer checksArray Voc/Isc, polarity, connector match, controller terminal size and torque, strip length, voltage drop, cable support and protection.

In the box

What the selected cable option includes

  • 1 × red 10AWG panel-to-controller cable
  • 1 × black 10AWG panel-to-controller cable

Charge controller, solar panels, ferrules, branch connectors, disconnects, fuses or breakers, glands and installation labor are not listed as included.

Product confidence

Prepare the controller ends to the current manual

Correct polarity, conductor preparation, terminal torque and strain relief are essential. Follow the current panel, connector and controller instructions for the completed circuit.

Common questions

Panel-to-controller cable questions

Are both ends fitted with solar connectors?

No. Each cable has a solar connector at the panel end and a bare conductor at the controller end.

Do I need ferrules on the bare ends?

Follow the exact controller manual. Some terminals accept properly stripped stranded wire while others specify a ferrule type, strip length and torque.

How do I choose 10, 20 or 30 feet?

Measure the supported route, choose the shortest safe option and verify voltage drop at maximum current.

Can I connect the panel directly to a battery with this cable?

No. Use a compatible charge controller configured for the battery, plus the required protection and battery-side wiring.
